Part Number
Manufacturer
Description
Unit Price
In Stock

SFH617A-2 SFH617A-2

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
3893 in stock

SFH617A-2X SFH617A-2X

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.65V (Max)
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
1911 in stock

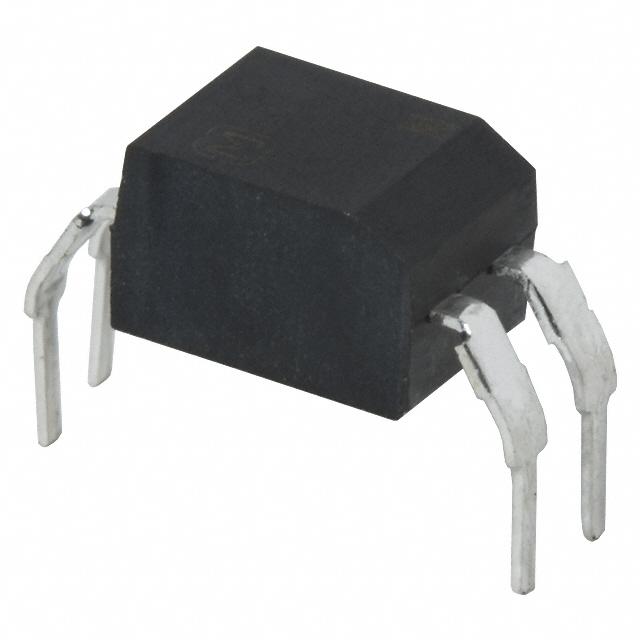

SFH617A-2X006 SFH617A-2X006

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
5 in stock

SFH617A-2X009T SFH617A-2X009T

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
1676 in stock

SFH617A-2X016 SFH617A-2X016

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
5093 in stock

SFH617A-2X017T SFH617A-2X017T

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
620 in stock

SFH617A-2XSM SFH617A-2XSM

Isocom Components
Manufacturer : Isocom Components 2004 LTD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.65V (Max)
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : -
0
3927 in stock

SFH617A-3 SFH617A-3

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
178 in stock

SFH617A-3X001 SFH617A-3X001

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
3988 in stock

SFH617A-3X006 SFH617A-3X006

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
2098 in stock

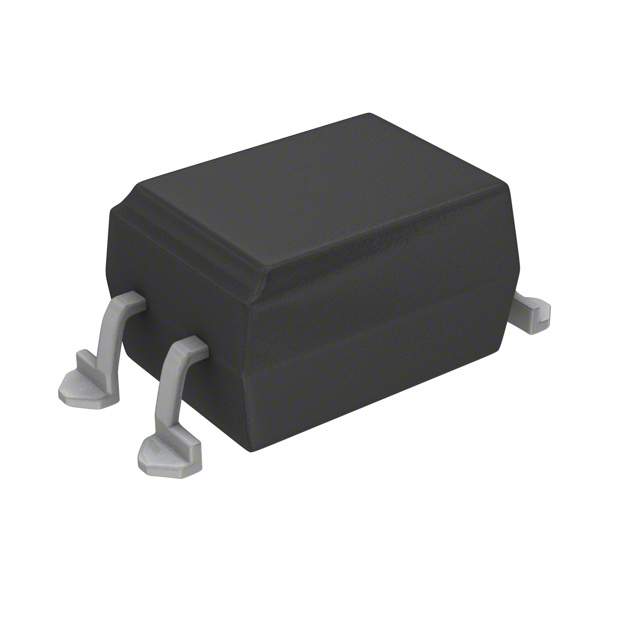

SFH617A-3X007T SFH617A-3X007T

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
1535 in stock

SFH617A-3X016 SFH617A-3X016

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
7425 in stock
