- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
TCMT1106
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
5243 in stock
TCMT1107
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
100 in stock
TCMT1108
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
100 in stock
TCMT1109
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9.5µs, 8.5µs
Rise / Fall Time (Typ) : 5.5µs, 7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
372 in stock
TCMT1113
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
2352 in stock

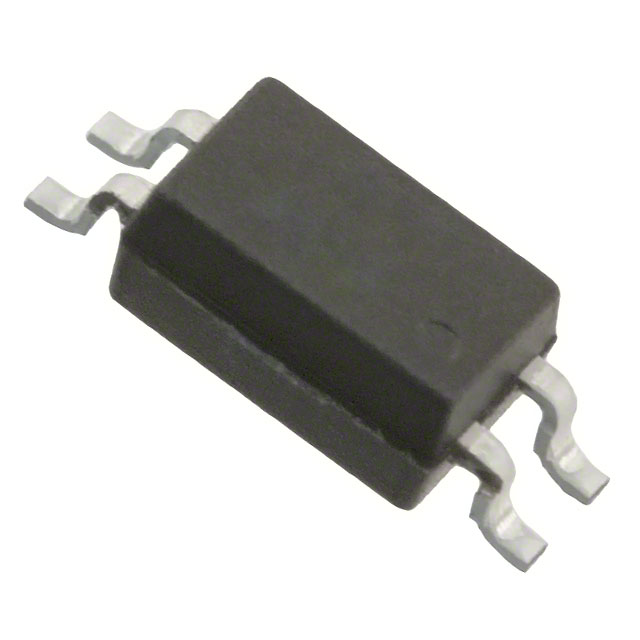

TCMT1117
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : 5µs, 3µs
Rise / Fall Time (Typ) : 3µs, 4µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
2868 in stock
TCMT1600
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
100 in stock
TCMT1600T3
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SOP
0
598 in stock
TCMT4100
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
0
100 in stock
TCMT4100T0
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
0
6199 in stock
TCMT4106
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
0
2799 in stock
TCMT4600
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 16-SOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
