Welcome to Weijie Semiconductor
- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
TLP183(GB-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
50 in stock
TLP183(GRH-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
100 in stock
TLP183(GRL-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 200% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 200% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
100 in stock
TLP183(GR-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
100 in stock

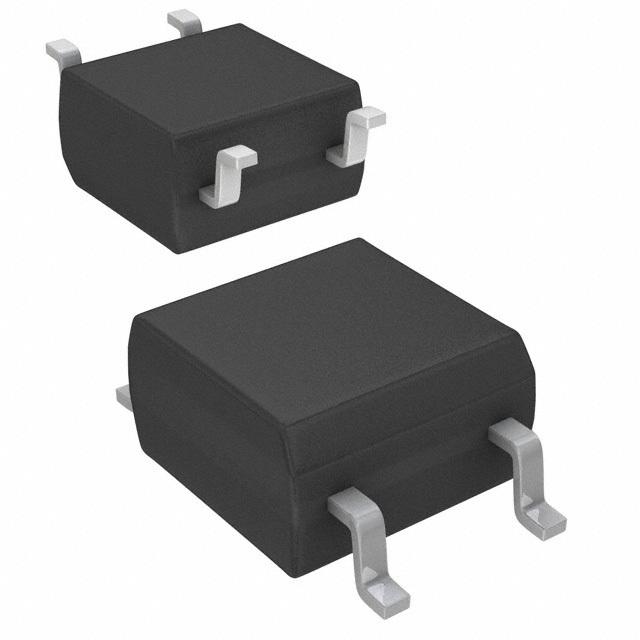

TLP183(TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
25882 in stock
TLP183(YH-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 75% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 75% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
100 in stock
TLP183(Y-TPL,E
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
100 in stock
TLP184(BL-TPL,SE
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
3046 in stock
.jpg "Show details for TLP184(E)")
TLP184(E)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9µs, 9µs
Rise / Fall Time (Typ) : 5µs, 9µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9µs, 9µs
Rise / Fall Time (Typ) : 5µs, 9µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
125 in stock
.jpg "Show details for TLP184(GB,E)")
TLP184(GB,E)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9µs, 9µs
Rise / Fall Time (Typ) : 5µs, 9µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9µs, 9µs
Rise / Fall Time (Typ) : 5µs, 9µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
100 in stock
.jpg "Show details for TLP184(GB-TPL,E)")
TLP184(GB-TPL,E)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9µs, 9µs
Rise / Fall Time (Typ) : 5µs, 9µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 9µs, 9µs
Rise / Fall Time (Typ) : 5µs, 9µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
86174 in stock
TLP184(GB-TPL,SE
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.25V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package : 6-SO, 4 Lead
0
193 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
