- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock

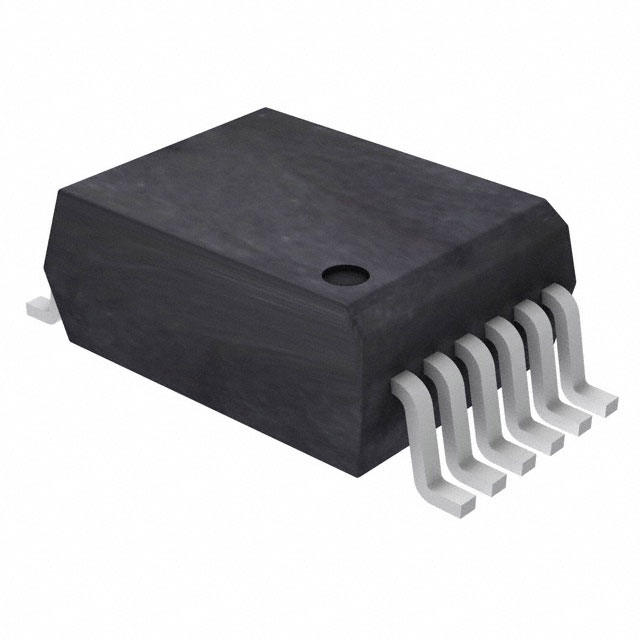

ACFL-5212T-060E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100, R²Coupler™
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 32% @ 10mA
Current Transfer Ratio (Max) : 100% @ 10mA
Turn On / Turn Off Time (Typ) : 20µs, 20µs (Max)
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
Packaging : Tube
Alternate Packaging
Series : Automotive, AEC-Q100, R²Coupler™
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 32% @ 10mA
Current Transfer Ratio (Max) : 100% @ 10mA
Turn On / Turn Off Time (Typ) : 20µs, 20µs (Max)
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 12-BSOP (0.295", 7.50mm Width)
Supplier Device Package : 12-SO
0
45 in stock
ACNT-H50L-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 7500Vrms
Current Transfer Ratio (Min) : 31% @ 12mA
Current Transfer Ratio (Max) : 80% @ 12mA
Turn On / Turn Off Time (Typ) : 800ns, 1µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 7500Vrms
Current Transfer Ratio (Min) : 31% @ 12mA
Current Transfer Ratio (Max) : 80% @ 12mA
Turn On / Turn Off Time (Typ) : 800ns, 1µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
0
1447 in stock

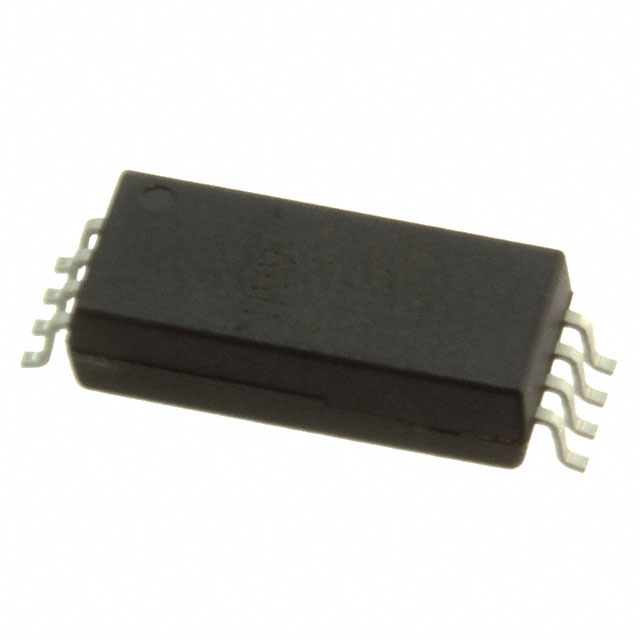

ACNT-H50L-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 7500Vrms
Current Transfer Ratio (Min) : 31% @ 12mA
Current Transfer Ratio (Max) : 80% @ 12mA
Turn On / Turn Off Time (Typ) : 800ns, 1µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 7500Vrms
Current Transfer Ratio (Min) : 31% @ 12mA
Current Transfer Ratio (Max) : 80% @ 12mA
Turn On / Turn Off Time (Typ) : 800ns, 1µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
0
8480 in stock

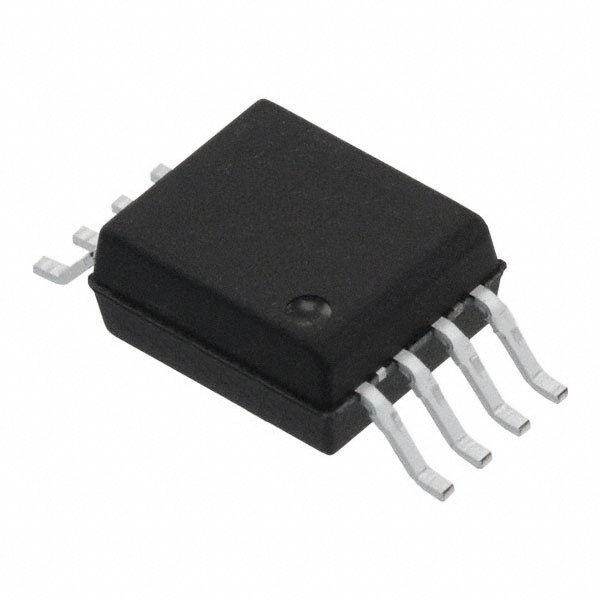

ACNT-H511-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 7500Vrms
Current Transfer Ratio (Min) : 31% @ 12mA
Current Transfer Ratio (Max) : 80% @ 12mA
Turn On / Turn Off Time (Typ) : 150ns, 400ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 12mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 7500Vrms
Current Transfer Ratio (Min) : 31% @ 12mA
Current Transfer Ratio (Max) : 80% @ 12mA
Turn On / Turn Off Time (Typ) : 150ns, 400ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 12mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package : 8-SO Stretched
0
1680 in stock
ACPL-054L-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 93% @ 3mA
Current Transfer Ratio (Max) : 200% @ 3mA
Turn On / Turn Off Time (Typ) : 200ns, 380ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 93% @ 3mA
Current Transfer Ratio (Max) : 200% @ 3mA
Turn On / Turn Off Time (Typ) : 200ns, 380ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
5383 in stock
ACPL-054L-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 93% @ 3mA
Current Transfer Ratio (Max) : 200% @ 3mA
Turn On / Turn Off Time (Typ) : 200ns, 380ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 93% @ 3mA
Current Transfer Ratio (Max) : 200% @ 3mA
Turn On / Turn Off Time (Typ) : 200ns, 380ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 24V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2688 in stock

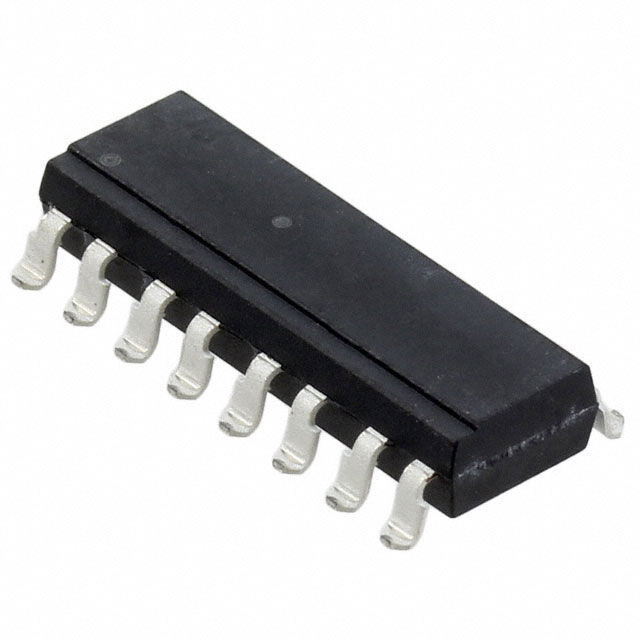

ACPL-1770L
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 1500VDC
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 2µs, 6µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 40mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 10mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 16-CDIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 1500VDC
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 2µs, 6µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 40mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 10mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 16-CDIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
52 in stock

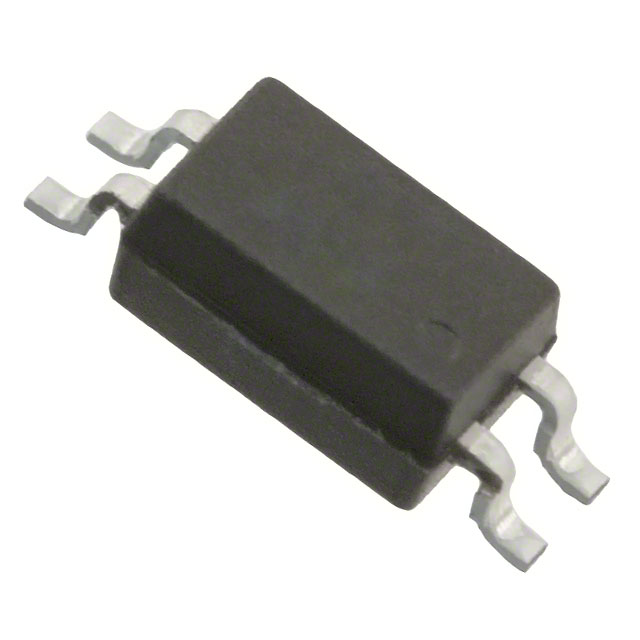

ACPL-214-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 400% @ 1mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 400% @ 1mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
0
153327 in stock
ACPL-217-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
0
60120 in stock
ACPL-217-50AE
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 80% @ 5mA
Current Transfer Ratio (Max) : 160% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
0
18266 in stock
ACPL-217-50BE
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
0
43159 in stock
ACPL-217-50DE
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 300% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3000Vrms
Current Transfer Ratio (Min) : 300% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 4-SO
0
19213 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
