- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock

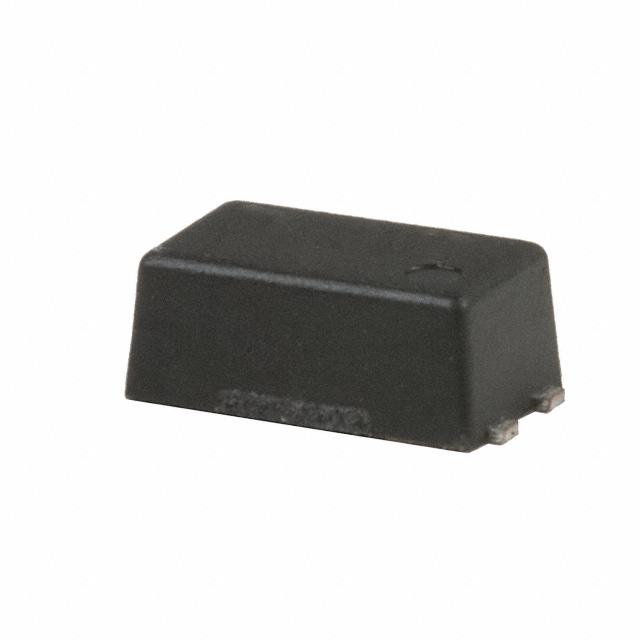

APV2111VY
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 1500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Leads
Supplier Device Package : 4-SSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 1500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Leads
Supplier Device Package : 4-SSOP
0
76493 in stock

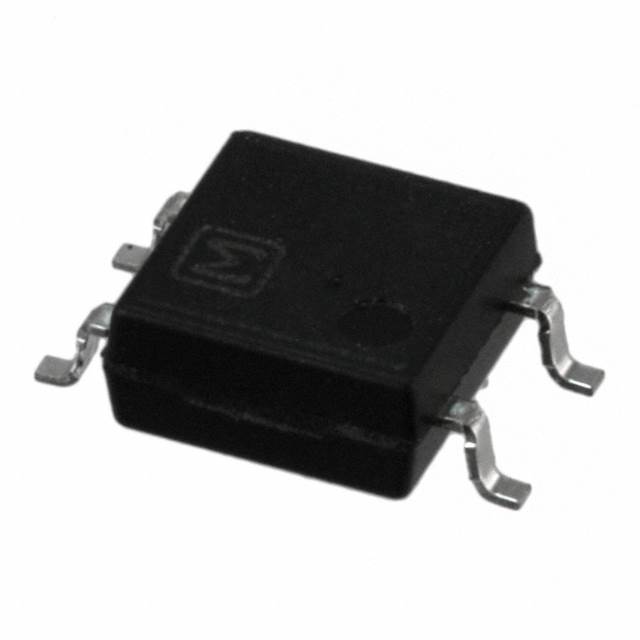

APV2121S
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
0
2997 in stock
APV2121SX
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
0
100 in stock

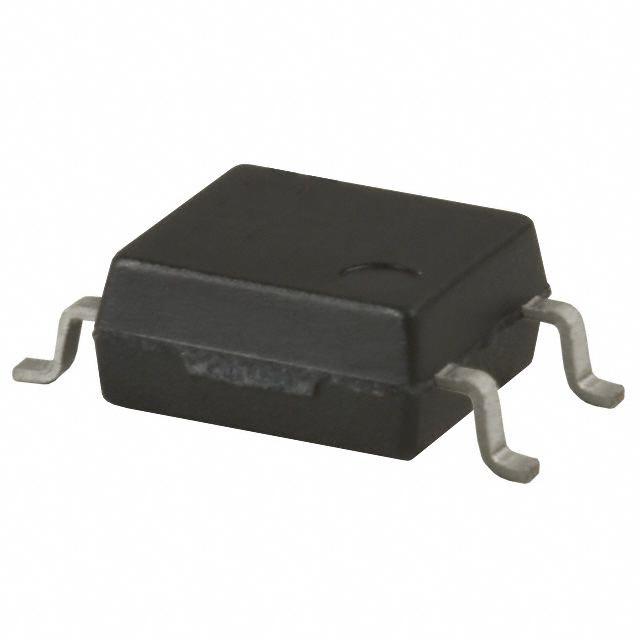

APV2121SZ
Panasonic
Manufacturer : Panasonic Electric Works
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 800µs, 100µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 8.2V
Current - Output / Channel : 8µA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP
0
100 in stock
ASSR-V621-002E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 280µs, 30µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 20µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 280µs, 30µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 20µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
1831 in stock
ASSR-V622-302E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 280µs, 30µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 20µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 280µs, 30µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 20µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
12137 in stock
ASSR-V622-502E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 280µs, 30µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 20µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 280µs, 30µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : 7V
Current - Output / Channel : 20µA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 30mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
17436 in stock
CNC1S171R0LF
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
0
818 in stock
CNC1S171S
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
0
736 in stock
CNC1S171S0LF
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -30°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : -
0
763 in stock
CNY117-2X006
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
0
15350 in stock
CNY17-1
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
6383 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
