- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
HCPL2731V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 500% @ 1.6mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 300ns, 5µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 18V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : 500% @ 1.6mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 300ns, 5µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 18V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.3V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
942 in stock
HCPL-273L-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 300% @ 1.6mA
Current Transfer Ratio (Max) : 2600% @ 1.6mA
Turn On / Turn Off Time (Typ) : 25µs, 50µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 7V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : 0°C ~ 70°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 300% @ 1.6mA
Current Transfer Ratio (Max) : 2600% @ 1.6mA
Turn On / Turn Off Time (Typ) : 25µs, 50µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 7V
Current - Output / Channel : 60mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 20mA
Vce Saturation (Max) : -
Operating Temperature : 0°C ~ 70°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
3000 in stock
HCPL-354-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 400% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 1mA
Current Transfer Ratio (Max) : 400% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-Mini-Flat
0
12450 in stock

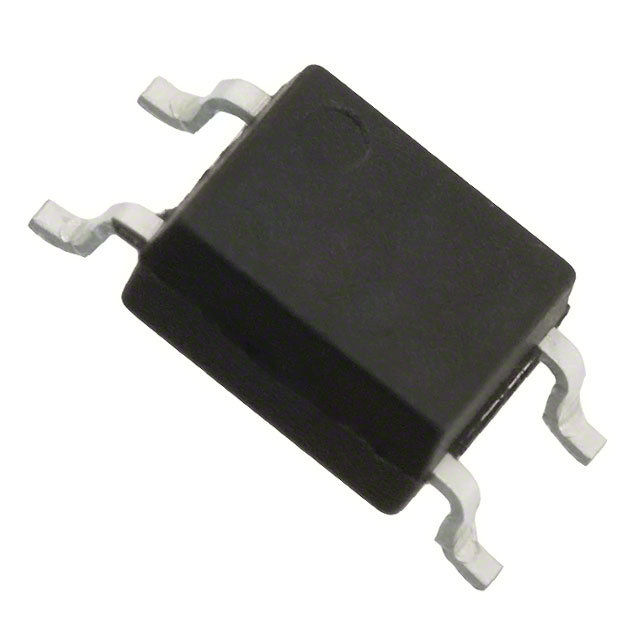

HCPL-354-06AE
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 1mA
Current Transfer Ratio (Max) : 150% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-Mini-Flat
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 50% @ 1mA
Current Transfer Ratio (Max) : 150% @ 1mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 4µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 200mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-Mini-Flat
0
28822 in stock
HCPL3700
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2026 in stock
HCPL-3700-000E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4µs, 10µs
Rise / Fall Time (Typ) : 20µs, 0.3µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4µs, 10µs
Rise / Fall Time (Typ) : 20µs, 0.3µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
4308 in stock
HCPL-3700-300E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4µs, 10µs
Rise / Fall Time (Typ) : 20µs, 0.3µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4µs, 10µs
Rise / Fall Time (Typ) : 20µs, 0.3µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
1953 in stock
HCPL-3700-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4µs, 10µs
Rise / Fall Time (Typ) : 20µs, 0.3µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 4µs, 10µs
Rise / Fall Time (Typ) : 20µs, 0.3µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-DIP Gull Wing
0
963 in stock
HCPL3700S
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
399 in stock
HCPL3700SD
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
3036 in stock
HCPL3700SDV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
494 in stock
HCPL3700SV
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 2500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 6µs, 25µs
Rise / Fall Time (Typ) : 45µs, 0.5µs
Input Type : AC, DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 30mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
897 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
