- Isolators
- Optoisolators - Transistor, Photovoltaic Output
Part Number
Manufacturer
Description
Unit Price
In Stock
4N49U
Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 1000Vrms
Current Transfer Ratio (Min) : 200% @ 2mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 20µs, 20µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 40mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : 6-LCC (6.22x4.32)
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 1000Vrms
Current Transfer Ratio (Min) : 200% @ 2mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 20µs, 20µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 35V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 40mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : 6-LCC (6.22x4.32)
0
899 in stock

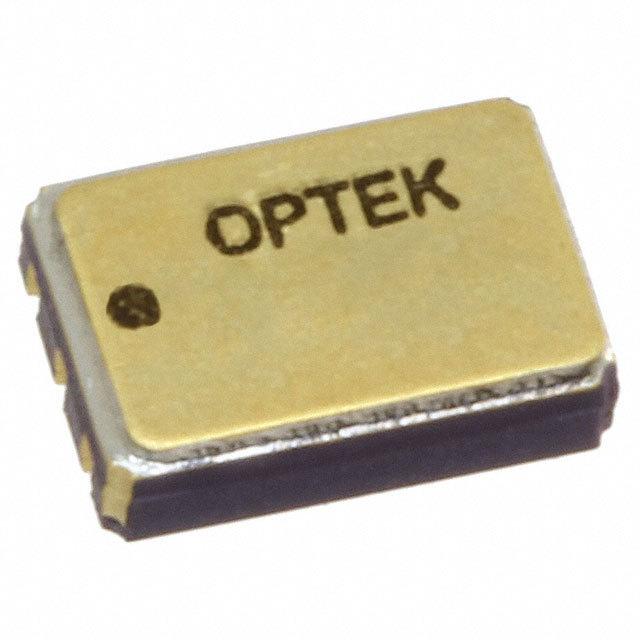

4N49UTX
Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 1000VDC
Current Transfer Ratio (Min) : 200% @ 2mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 20µs, 20µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 45V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.5V (Max)
Current - DC Forward (If) (Max) : 40mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : 6-LCC (6.22x4.32)
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 1000VDC
Current Transfer Ratio (Min) : 200% @ 2mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 20µs, 20µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 45V
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.5V (Max)
Current - DC Forward (If) (Max) : 40mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : 6-LCC (6.22x4.32)
0
50 in stock
522-03-I
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5.5µs, 4.2µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.100", 2.54mm)
Supplier Device Package : -
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5.5µs, 4.2µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.100", 2.54mm)
Supplier Device Package : -
0
925 in stock
525-03-0-I
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5.5µs, 4.2µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5.5µs, 4.2µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 32V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : -
0
118 in stock
567-70-1-I
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 500ns, 500ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 15V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Supplier Device Package : -
Packaging : Bulk
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4000VDC
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 500ns, 500ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 15V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : -
Current - DC Forward (If) (Max) : -
Vce Saturation (Max) : -
Operating Temperature : -20°C ~ 85°C
Mounting Type : Through Hole
Package / Case : 5-DIP Module
Supplier Device Package : -
0
29 in stock
5962-8978501PA
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 1500VDC
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 2µs, 8µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 40mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 10mA
Vce Saturation (Max) : 110mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 1500VDC
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 2µs, 8µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 40mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 10mA
Vce Saturation (Max) : 110mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
40 in stock

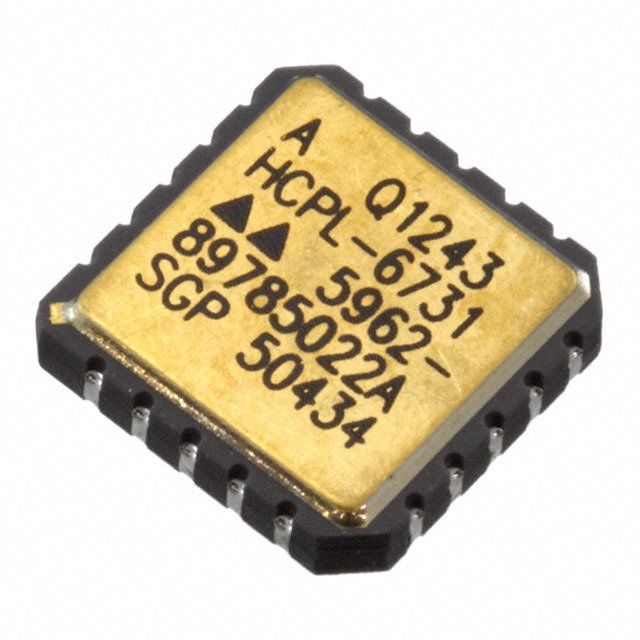

5962-89785022A
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 1500VDC
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 2µs, 8µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 40mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 10mA
Vce Saturation (Max) : 110mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-CLCC
Supplier Device Package : 20-LCCC
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 2
Voltage - Isolation : 1500VDC
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 2µs, 8µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Darlington
Voltage - Output (Max) : 20V
Current - Output / Channel : 40mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 10mA
Vce Saturation (Max) : 110mV
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 20-CLCC
Supplier Device Package : 20-LCCC
0
25 in stock
6N135-300E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 200ns, 1.3µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 200ns, 1.3µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
6244 in stock
6N135-500E
Avago Technologies (Broadcom Limited)
Manufacturer : Broadcom Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 200ns, 1.3µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 200ns, 1.3µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.5V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
7000 in stock
6N135M
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 230ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 230ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
2127 in stock
6N135SDM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 230ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 230ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
1000 in stock
6N135SM
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 230ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 7% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 230ns, 450ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 20V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
0
913 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
