Part Number
Manufacturer
Description
Unit Price
In Stock

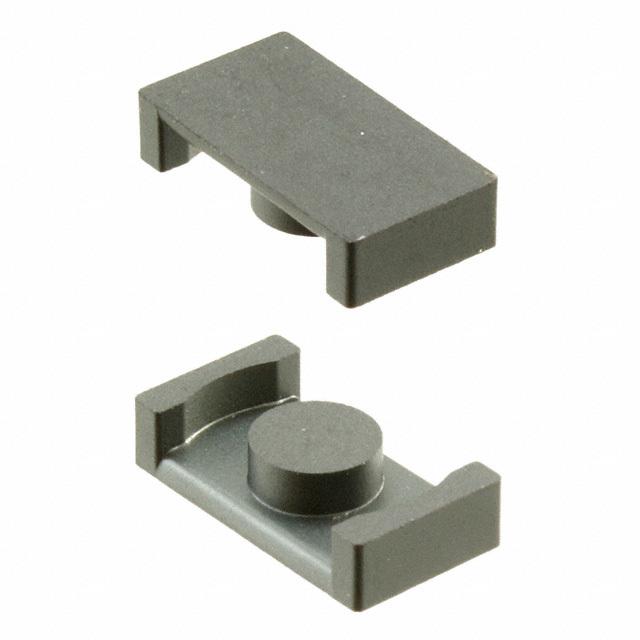

B65525J0160A087
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65525
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 140
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 1.1
Effective Length (le) mm : 14.1
Effective Area (Ae) mm² : 12.4
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 174
Finish : Uncoated
Supplier Device Package : ER 11 x 5
Height : 2.50mm
Length : 11.00mm
Width : 6.00mm
Diameter : -
Series : B65525
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 140
Initial Permeability (µi) : 2200
Material : N87
Core Factor (危I/A) mm1 : 1.1
Effective Length (le) mm : 14.1
Effective Area (Ae) mm² : 12.4
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 174
Finish : Uncoated
Supplier Device Package : ER 11 x 5
Height : 2.50mm
Length : 11.00mm
Width : 6.00mm
Diameter : -
0
100 in stock
B65531D0000R033
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65531
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 780nH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 620
Initial Permeability (µi) : 750
Material : M33
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 15.9
Effective Area (Ae) mm² : 15.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 253
Finish : Uncoated
Supplier Device Package : P 11 x 7
Height : 3.30mm
Length : -
Width : -
Diameter : 11.30mm
Series : B65531
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 780nH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 620
Initial Permeability (µi) : 750
Material : M33
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 15.9
Effective Area (Ae) mm² : 15.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 253
Finish : Uncoated
Supplier Device Package : P 11 x 7
Height : 3.30mm
Length : -
Width : -
Diameter : 11.30mm
0
1000 in stock

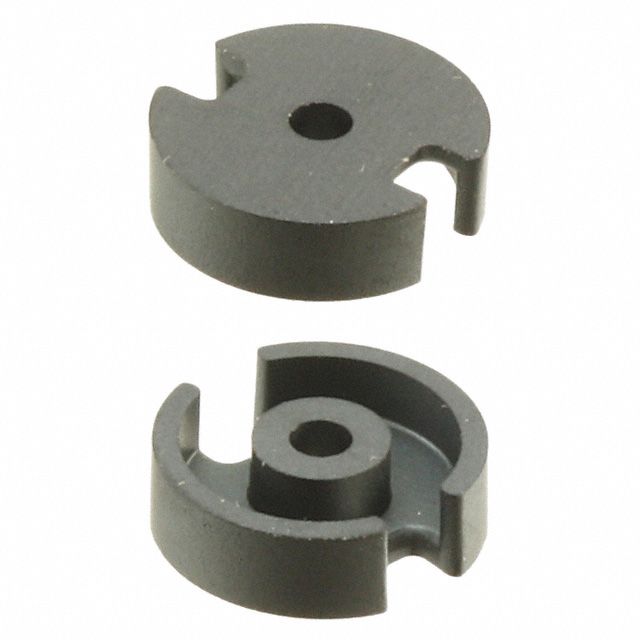

B65531D0160A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65531
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 127
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 15.9
Effective Area (Ae) mm² : 15.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 253
Finish : Uncoated
Supplier Device Package : P 11 x 7
Height : 3.30mm
Length : -
Width : -
Diameter : 11.30mm
Series : B65531
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 127
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 15.9
Effective Area (Ae) mm² : 15.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 253
Finish : Uncoated
Supplier Device Package : P 11 x 7
Height : 3.30mm
Length : -
Width : -
Diameter : 11.30mm
0
100 in stock

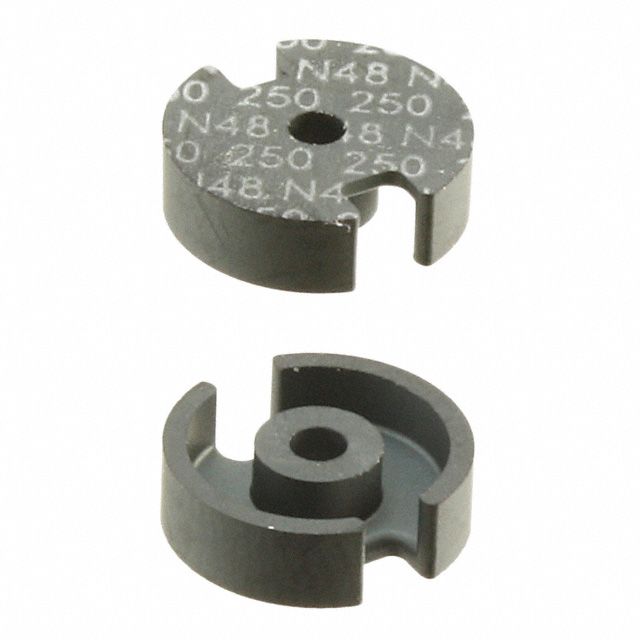

B65531D0250A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65531
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 250nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 199
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 15.9
Effective Area (Ae) mm² : 15.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 253
Finish : Uncoated
Supplier Device Package : P 11 x 7
Height : 3.30mm
Length : -
Width : -
Diameter : 11.30mm
Series : B65531
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 250nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 199
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 1
Effective Length (le) mm : 15.9
Effective Area (Ae) mm² : 15.9
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 253
Finish : Uncoated
Supplier Device Package : P 11 x 7
Height : 3.30mm
Length : -
Width : -
Diameter : 11.30mm
0
100 in stock

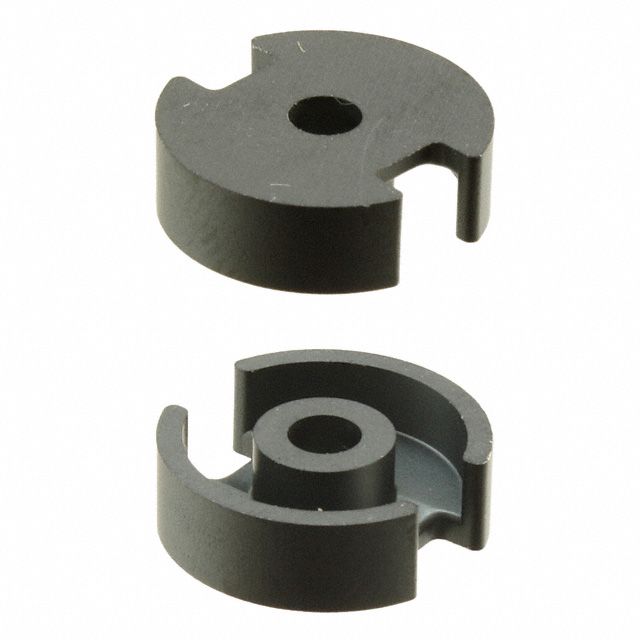

B65541D0000R048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 2.1µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1340
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 2.1µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1340
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
0
390 in stock

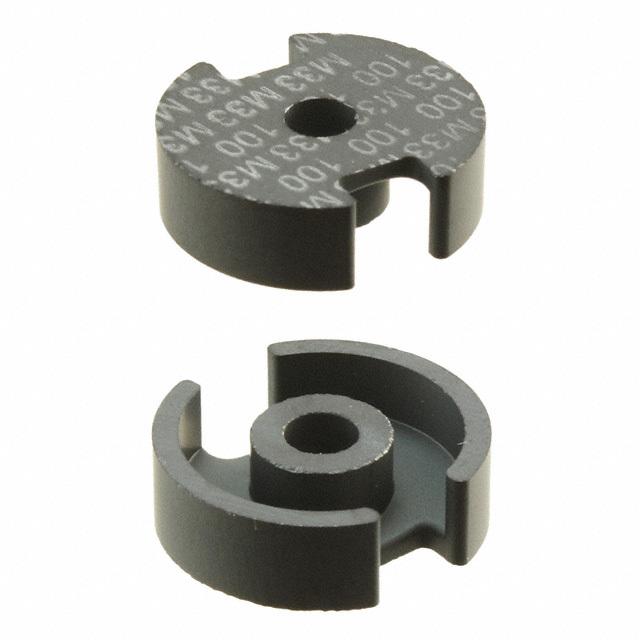

B65541T0100A033
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 100nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 64
Initial Permeability (µi) : 750
Material : M33
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 100nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 64
Initial Permeability (µi) : 750
Material : M33
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
0
100 in stock

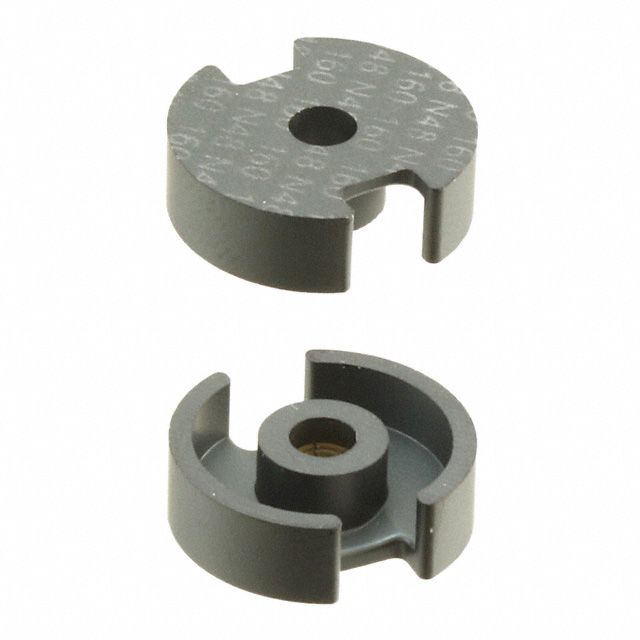

B65541T0160G048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 102
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 160nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 102
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
0
989 in stock

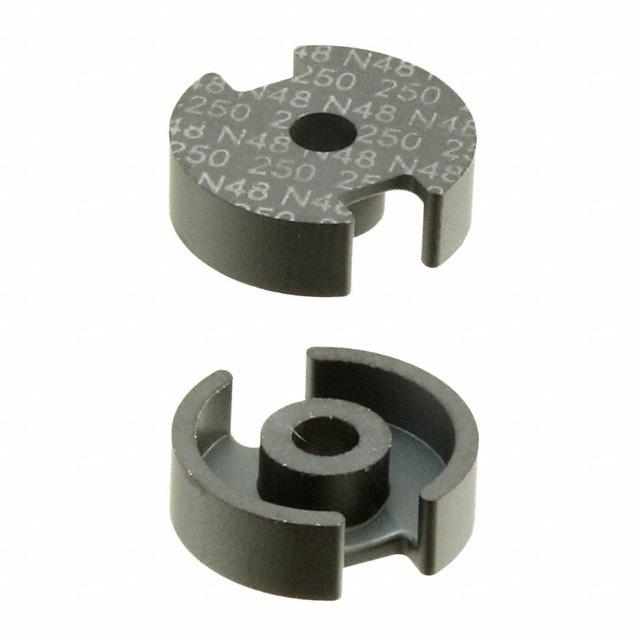

B65541T0250A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 250nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 159
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 250nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 159
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
0
623 in stock

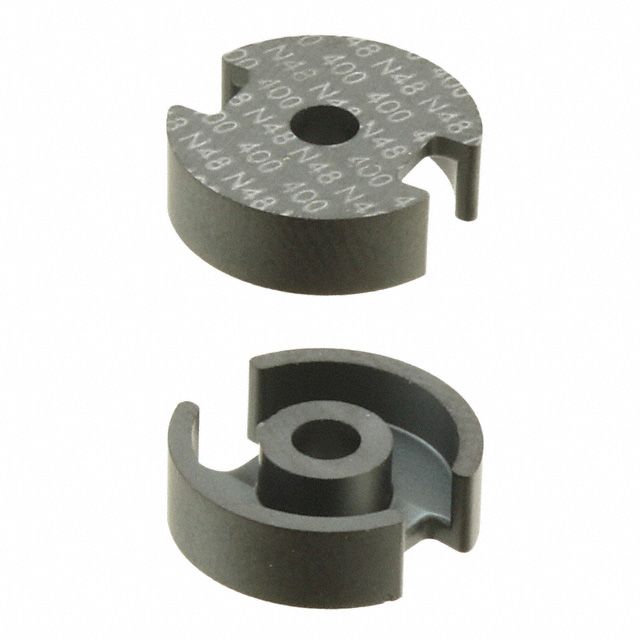

B65541T0400A048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 400nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 255
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 400nH
Tolerance : ±3%
Gap : Gapped
Effective Permeability (µe) : 255
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.8
Effective Length (le) mm : 20
Effective Area (Ae) mm² : 25
Minimum Core Cross Section (Amin) mm² : 20
Effective Magnetic Volume (Ve) mm鲁 : 500
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
0
100 in stock

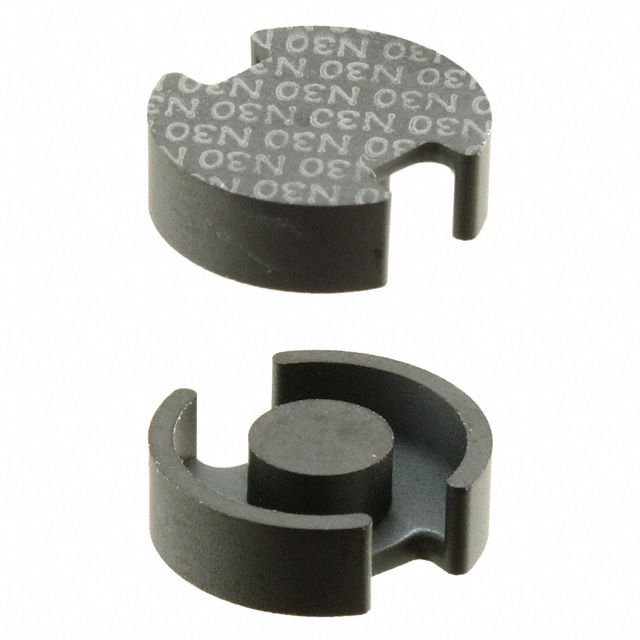

B65541W0000R030
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 4.6µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2680
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.73
Effective Length (le) mm : 21
Effective Area (Ae) mm² : 28.7
Minimum Core Cross Section (Amin) mm² : 23.6
Effective Magnetic Volume (Ve) mm鲁 : 603
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
Series : B65541
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 4.6µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 2680
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.73
Effective Length (le) mm : 21
Effective Area (Ae) mm² : 28.7
Minimum Core Cross Section (Amin) mm² : 23.6
Effective Magnetic Volume (Ve) mm鲁 : 603
Finish : Uncoated
Supplier Device Package : P 14 x 8
Height : 4.25mm
Length : -
Width : -
Diameter : 14.30mm
0
219 in stock
B65611D0000R030
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65611
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 15.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 3040
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.26
Effective Length (le) mm : 52
Effective Area (Ae) mm² : 202
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 10500
Finish : Uncoated
Supplier Device Package : P 36 x 22
Height : 11.00mm
Length : -
Width : -
Diameter : 36.00mm
Series : B65611
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 15.2µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 3040
Initial Permeability (µi) : 4300
Material : N30
Core Factor (危I/A) mm1 : 0.26
Effective Length (le) mm : 52
Effective Area (Ae) mm² : 202
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 10500
Finish : Uncoated
Supplier Device Package : P 36 x 22
Height : 11.00mm
Length : -
Width : -
Diameter : 36.00mm
0
47 in stock

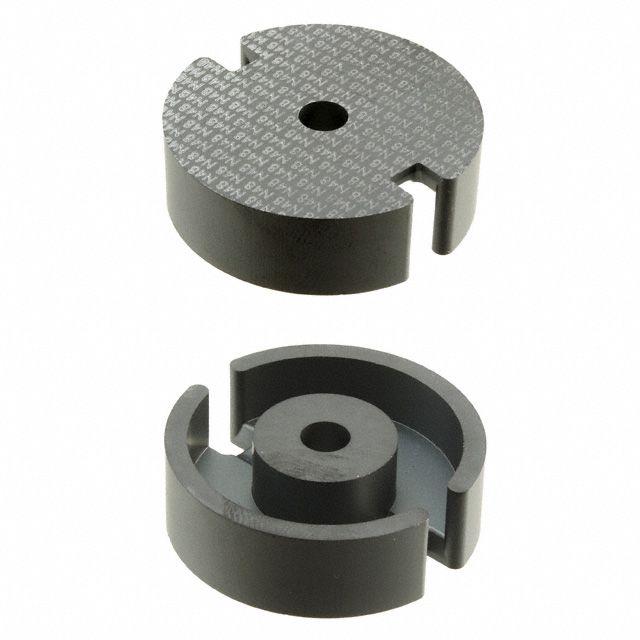

B65611D0000R048
EPCOS
Manufacturer : EPCOS (TDK)
Series : B65611
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 7.6µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1560
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.26
Effective Length (le) mm : 52
Effective Area (Ae) mm² : 202
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 10500
Finish : Uncoated
Supplier Device Package : P 36 x 22
Height : 11.00mm
Length : -
Width : -
Diameter : 36.00mm
Series : B65611
Part Status : Active
Core Type : P (Pot Core)
Inductance Factor (Al) : 7.6µH
Tolerance : -20%, +30%
Gap : Ungapped
Effective Permeability (µe) : 1560
Initial Permeability (µi) : -
Material : N48
Core Factor (危I/A) mm1 : 0.26
Effective Length (le) mm : 52
Effective Area (Ae) mm² : 202
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 10500
Finish : Uncoated
Supplier Device Package : P 36 x 22
Height : 11.00mm
Length : -
Width : -
Diameter : 36.00mm
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
