Part Number
Manufacturer
Description
Unit Price
In Stock

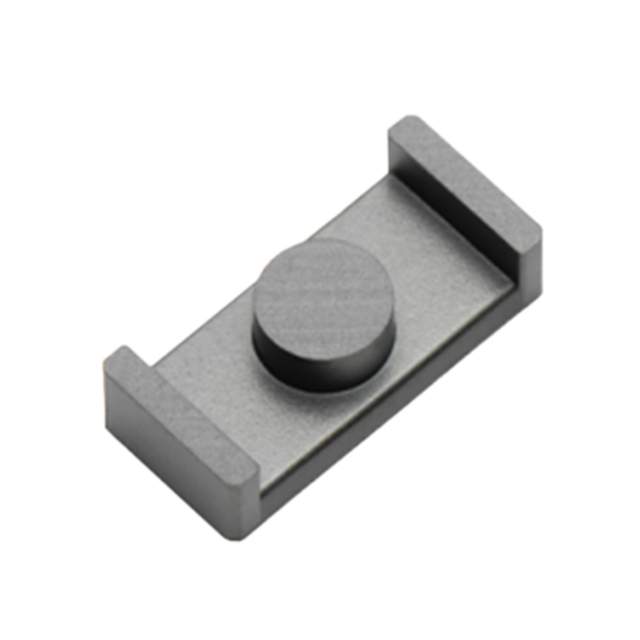

PC95ER22/5.5/15-Z
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 4.3µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.51
Effective Length (le) mm : 46.1
Effective Area (Ae) mm² : 23.2
Minimum Core Cross Section (Amin) mm² : 36.3
Effective Magnetic Volume (Ve) mm鲁 : 1070
Finish : Uncoated
Supplier Device Package : -
Height : 2.75mm
Length : 22.10mm
Width : -
Diameter : -
Series : *
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 4.3µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.51
Effective Length (le) mm : 46.1
Effective Area (Ae) mm² : 23.2
Minimum Core Cross Section (Amin) mm² : 36.3
Effective Magnetic Volume (Ve) mm鲁 : 1070
Finish : Uncoated
Supplier Device Package : -
Height : 2.75mm
Length : 22.10mm
Width : -
Diameter : -
0
100 in stock
PC95ER25/5.5/18-Z
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 4.4µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.49
Effective Length (le) mm : 53.7
Effective Area (Ae) mm² : 26.1
Minimum Core Cross Section (Amin) mm² : 38.5
Effective Magnetic Volume (Ve) mm鲁 : 1400
Finish : Uncoated
Supplier Device Package : -
Height : 2.75mm
Length : -
Width : 18.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 4.4µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.49
Effective Length (le) mm : 53.7
Effective Area (Ae) mm² : 26.1
Minimum Core Cross Section (Amin) mm² : 38.5
Effective Magnetic Volume (Ve) mm鲁 : 1400
Finish : Uncoated
Supplier Device Package : -
Height : 2.75mm
Length : -
Width : 18.00mm
Diameter : -
0
100 in stock
PC95ER9.5/5-Z
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 1.19µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 1.67
Effective Length (le) mm : 8.47
Effective Area (Ae) mm² : 14.2
Minimum Core Cross Section (Amin) mm² : 7.6
Effective Magnetic Volume (Ve) mm鲁 : 120
Finish : Uncoated
Supplier Device Package : ER 9.5 x 5
Height : 2.50mm
Length : 9.50mm
Width : 5.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : ER
Inductance Factor (Al) : 1.19µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 1.67
Effective Length (le) mm : 8.47
Effective Area (Ae) mm² : 14.2
Minimum Core Cross Section (Amin) mm² : 7.6
Effective Magnetic Volume (Ve) mm鲁 : 120
Finish : Uncoated
Supplier Device Package : ER 9.5 x 5
Height : 2.50mm
Length : 9.50mm
Width : 5.00mm
Diameter : -
0
100 in stock
PC95PQ20/16Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 4.48µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.61
Effective Length (le) mm : 37.4
Effective Area (Ae) mm² : 62
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2310
Finish : Uncoated
Supplier Device Package : PQ 20 x 16
Height : 16.20mm
Length : 20.50mm
Width : 14.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 4.48µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.61
Effective Length (le) mm : 37.4
Effective Area (Ae) mm² : 62
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2310
Finish : Uncoated
Supplier Device Package : PQ 20 x 16
Height : 16.20mm
Length : 20.50mm
Width : 14.00mm
Diameter : -
0
100 in stock

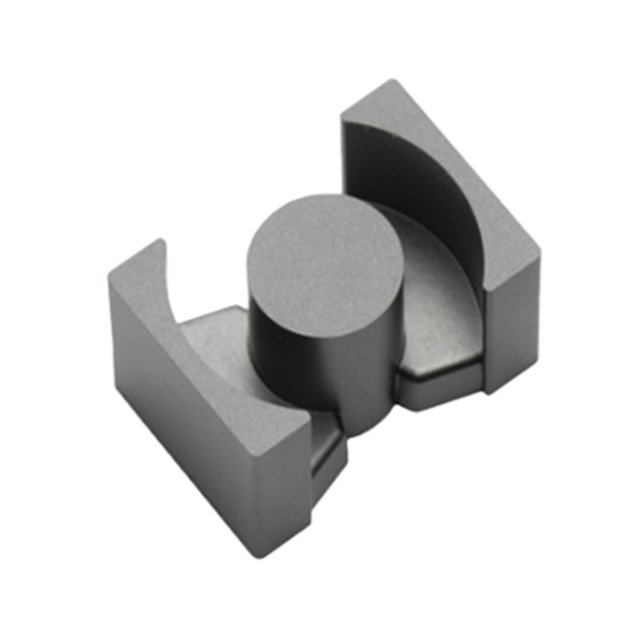

PC95PQ20/20Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 4µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.74
Effective Length (le) mm : 45.4
Effective Area (Ae) mm² : 62
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2790
Finish : Uncoated
Supplier Device Package : PQ 20 x 20
Height : 20.20mm
Length : 20.50mm
Width : 14.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 4µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.74
Effective Length (le) mm : 45.4
Effective Area (Ae) mm² : 62
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 2790
Finish : Uncoated
Supplier Device Package : PQ 20 x 20
Height : 20.20mm
Length : 20.50mm
Width : 14.00mm
Diameter : -
0
100 in stock
PC95PQ26/20Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 7.47µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.39
Effective Length (le) mm : 46.3
Effective Area (Ae) mm² : 119
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5490
Finish : Uncoated
Supplier Device Package : PQ 26 x 20
Height : -
Length : 26.50mm
Width : 19.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 7.47µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.39
Effective Length (le) mm : 46.3
Effective Area (Ae) mm² : 119
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 5490
Finish : Uncoated
Supplier Device Package : PQ 26 x 20
Height : -
Length : 26.50mm
Width : 19.00mm
Diameter : -
0
100 in stock
PC95PQ26/25Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 6.52µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.47
Effective Length (le) mm : 55.5
Effective Area (Ae) mm² : 118
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6530
Finish : Uncoated
Supplier Device Package : PQ 26 x 25
Height : -
Length : 26.50mm
Width : 19.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 6.52µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.47
Effective Length (le) mm : 55.5
Effective Area (Ae) mm² : 118
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 6530
Finish : Uncoated
Supplier Device Package : PQ 26 x 25
Height : -
Length : 26.50mm
Width : 19.00mm
Diameter : -
0
100 in stock
PC95PQ32/20Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 9.12µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 55.5
Effective Area (Ae) mm² : 170
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 9420
Finish : Uncoated
Supplier Device Package : PQ 32 x 20
Height : -
Length : 32.00mm
Width : 22.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 9.12µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.33
Effective Length (le) mm : 55.5
Effective Area (Ae) mm² : 170
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 9420
Finish : Uncoated
Supplier Device Package : PQ 32 x 20
Height : -
Length : 32.00mm
Width : 22.00mm
Diameter : -
0
100 in stock
PC95PQ32/30Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 7µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.46
Effective Length (le) mm : 74.6
Effective Area (Ae) mm² : 161
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 12000
Finish : Uncoated
Supplier Device Package : PQ 32 x 30
Height : 30.35mm
Length : 32.00mm
Width : 22.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 7µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.46
Effective Length (le) mm : 74.6
Effective Area (Ae) mm² : 161
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 12000
Finish : Uncoated
Supplier Device Package : PQ 32 x 30
Height : 30.35mm
Length : 32.00mm
Width : 22.00mm
Diameter : -
0
100 in stock
PC95PQ35/35Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 7.32µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.45
Effective Length (le) mm : 87.9
Effective Area (Ae) mm² : 196
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 17300
Finish : Uncoated
Supplier Device Package : PQ 35 x 35
Height : 34.75mm
Length : 35.10mm
Width : 26.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 7.32µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.45
Effective Length (le) mm : 87.9
Effective Area (Ae) mm² : 196
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 17300
Finish : Uncoated
Supplier Device Package : PQ 35 x 35
Height : 34.75mm
Length : 35.10mm
Width : 26.00mm
Diameter : -
0
100 in stock
PC95PQ40/40Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 6.4µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.51
Effective Length (le) mm : 102
Effective Area (Ae) mm² : 201
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 20500
Finish : Uncoated
Supplier Device Package : PQ 40 x 40
Height : 39.75mm
Length : 40.50mm
Width : 28.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 6.4µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.51
Effective Length (le) mm : 102
Effective Area (Ae) mm² : 201
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 20500
Finish : Uncoated
Supplier Device Package : PQ 40 x 40
Height : 39.75mm
Length : 40.50mm
Width : 28.00mm
Diameter : -
0
100 in stock
PC95PQ50/50Z-12
TDK Corporation
Manufacturer : TDK Corporation
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 9.7µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.35
Effective Length (le) mm : 113
Effective Area (Ae) mm² : 328
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 37200
Finish : Uncoated
Supplier Device Package : PQ 50 x 50
Height : -
Length : 50.00mm
Width : 32.00mm
Diameter : -
Series : *
Part Status : Active
Core Type : PQ
Inductance Factor (Al) : 9.7µH
Tolerance : ±25%
Gap : Ungapped
Effective Permeability (µe) : -
Initial Permeability (µi) : -
Material : -
Core Factor (危I/A) mm1 : 0.35
Effective Length (le) mm : 113
Effective Area (Ae) mm² : 328
Minimum Core Cross Section (Amin) mm² : -
Effective Magnetic Volume (Ve) mm鲁 : 37200
Finish : Uncoated
Supplier Device Package : PQ 50 x 50
Height : -
Length : 50.00mm
Width : 32.00mm
Diameter : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
