Part Number
Manufacturer
Description
Unit Price
In Stock
0636000842
Affinity Medical Technologies - a Molex company
Manufacturer : Molex, LLC
Series : -
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
Series : -
Part Status : Active
Type : -
Coil Type : -
Voltage - Rated : -
Current Rating : -
Steps per Revolution : -
Step Angle : -
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : -
Operating Temperature : -
Coil Resistance : -
Features : -
0
100 in stock
08PM-K049BSTDCN
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 500mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 2.83 / 20
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Flatted Shaft
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 500mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 2.83 / 20
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 8 Ohms
Features : Flatted Shaft
0
100 in stock

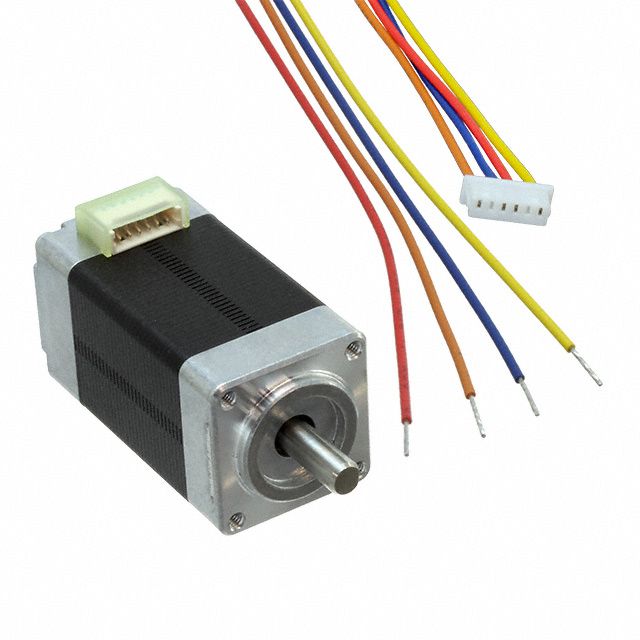

08PM-K139BSTDCN
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.1 / 36
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 6.5 Ohms
Features : Flatted Shaft
Series : 08PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.1 / 36
Size / Dimension : Square - 0.787" x 0.787" (20.00mm x 20.00mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 6.5 Ohms
Features : Flatted Shaft
0
100 in stock

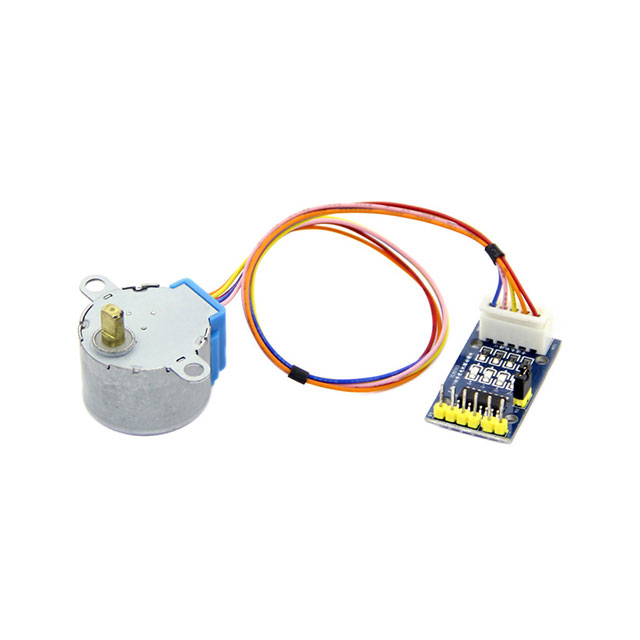

108990000
Seeed
Manufacturer : Seeed Technology Co., Ltd
Series : -
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 4096
Step Angle : 0.088°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Operating Temperature : -5°C ~ 40°C
Coil Resistance : 50 Ohms
Features : Driver
Series : -
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 4096
Step Angle : 0.088°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Operating Temperature : -5°C ~ 40°C
Coil Resistance : 50 Ohms
Features : Driver
0
37 in stock

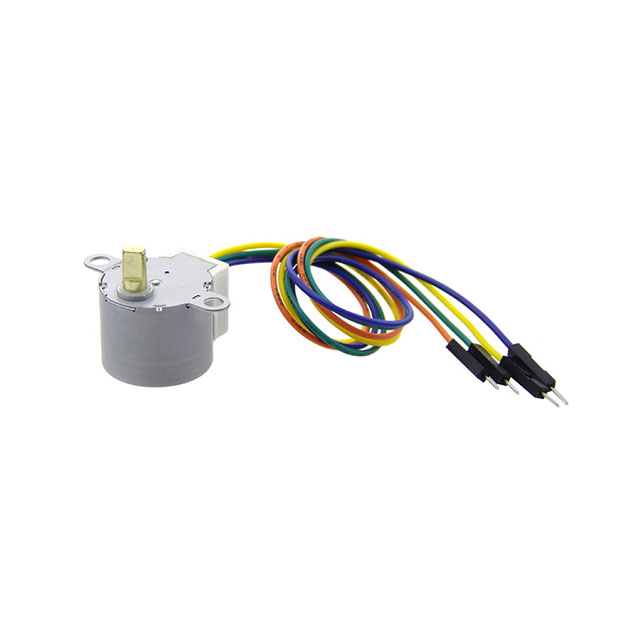

108990003
Seeed
Manufacturer : Seeed Technology Co., Ltd
Series : -
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 2048
Step Angle : 0.176°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.5 / 39.2
Size / Dimension : Round - 0.945" Dia (24.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 25 Ohms
Features : Flatted Shaft
Series : -
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : -
Steps per Revolution : 2048
Step Angle : 0.176°
Accuracy : -
Torque - Holding (oz-in / mNm) : 5.5 / 39.2
Size / Dimension : Round - 0.945" Dia (24.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 25 Ohms
Features : Flatted Shaft
0
214 in stock

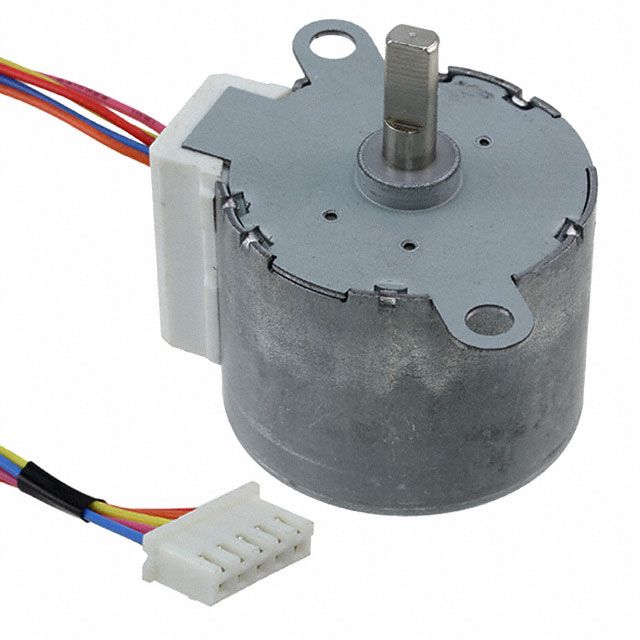

108990004
Seeed
Manufacturer : Seeed Technology Co., Ltd
Series : -
Part Status : Obsolete
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : -
Steps per Revolution : 42.5
Step Angle : 3.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 41.66 / 294.2
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 1.181" (30.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 100 Ohms
Features : Round Shaft
Series : -
Part Status : Obsolete
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : -
Steps per Revolution : 42.5
Step Angle : 3.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 41.66 / 294.2
Size / Dimension : Round - 1.378" Dia (35.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 1.181" (30.00mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : 100 Ohms
Features : Round Shaft
0
100 in stock

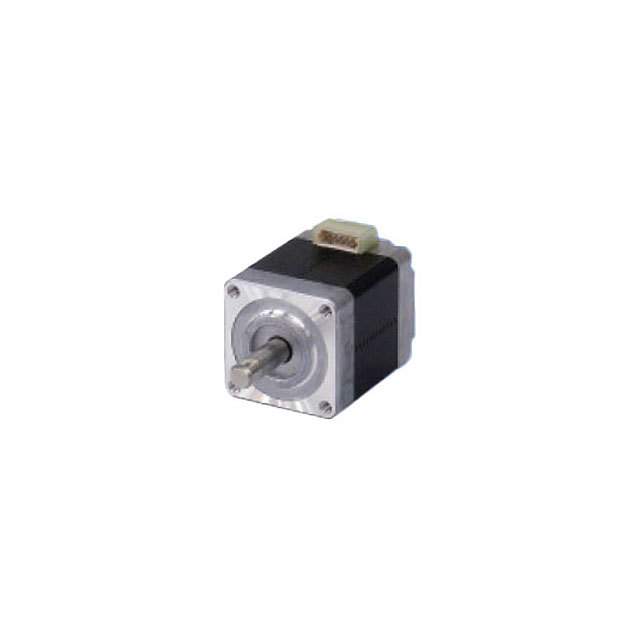

10PM-K013B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 210mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.94 / 49
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 47 Ohms
Features : Round Shaft
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 210mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.94 / 49
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 47 Ohms
Features : Round Shaft
0
100 in stock
10PM-K202B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.67 / 33
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.8 Ohms
Features : Round Shaft
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.67 / 33
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.8 Ohms
Features : Round Shaft
0
100 in stock
10PM-K701B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 630mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.78 / 62
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.8 Ohms
Features : Round Shaft
Series : 10PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 630mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.78 / 62
Size / Dimension : Square - 0.984" x 0.984" (25.00mm x 25.00mm)
NEMA Frame Size : 10
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.394" (10.00mm)
Mounting Hole Spacing : 0.787" (20.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.8 Ohms
Features : Round Shaft
0
100 in stock

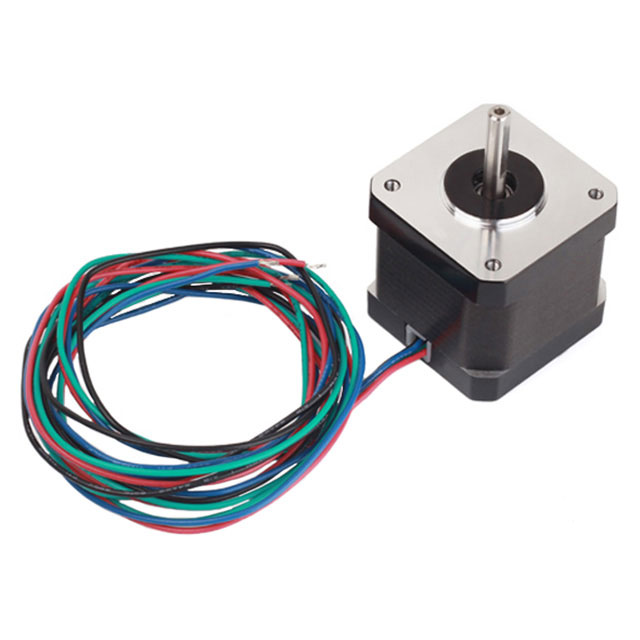

114990134
Seeed
Manufacturer : Seeed Technology Co., Ltd
Series : -
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.15VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 41.66 / 294.2
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 2.1 Ohms
Features : Round Shaft
Series : -
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.15VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 41.66 / 294.2
Size / Dimension : -
NEMA Frame Size : -
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : -
Termination Style : Wire Leads
Operating Temperature : -
Coil Resistance : 2.1 Ohms
Features : Round Shaft
0
100 in stock
14PM-M047B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.08 / 50
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 7.08 / 50
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.8 Ohms
Features : Round Shaft
0
100 in stock
14PM-M047U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.4 Ohms
Features : Round Shaft
Series : 14PM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 4.82 / 34
Size / Dimension : Square - 1.378" x 1.378" (35.00mm x 35.00mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.023" (26.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.4 Ohms
Features : Round Shaft
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
