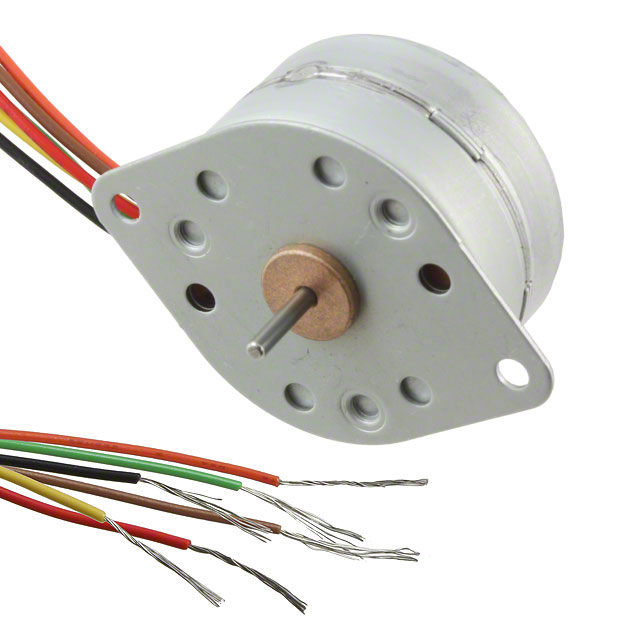

35L048B1U
Portescap
Manufacturer : Portescap
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 450mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 11 Ohms
Features : Round Shaft
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 450mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 11 Ohms
Features : Round Shaft
0
232 in stock

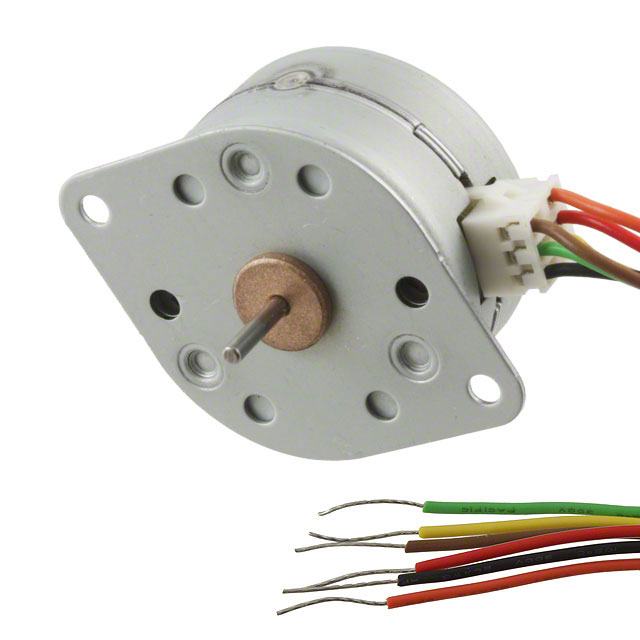

35L048B2U
Portescap
Manufacturer : Portescap
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 190mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 64 Ohms
Features : Round Shaft
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 190mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 64 Ohms
Features : Round Shaft
0
695 in stock

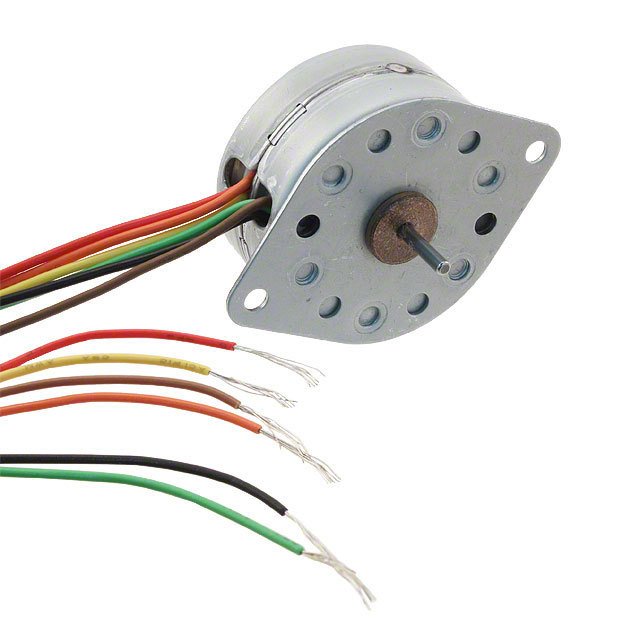

35M048B1U
Portescap
Manufacturer : Portescap
Series : 35M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 400mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 2.6 / 18.35
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 12.5 Ohms
Features : Round Shaft
Series : 35M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 400mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 2.6 / 18.35
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 12.5 Ohms
Features : Round Shaft
0
21 in stock

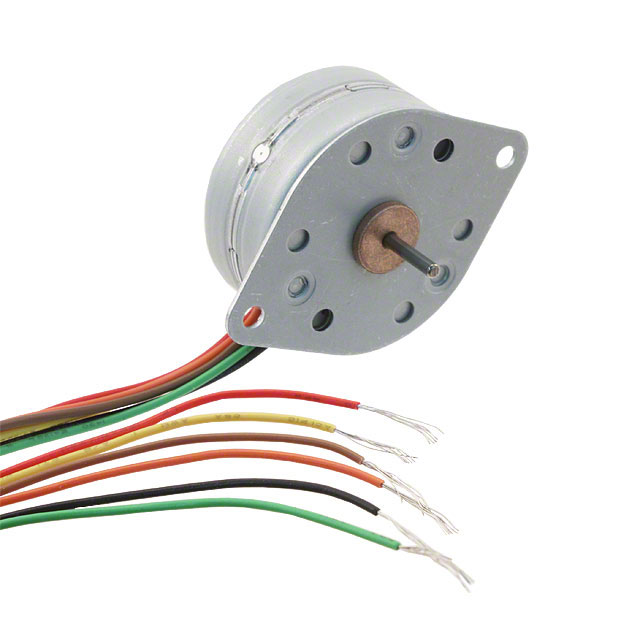

35M048B2U
Portescap
Manufacturer : Portescap
Series : 35M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 170mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 2.6 / 18.35
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 72 Ohms
Features : Round Shaft
Series : 35M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 170mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 2.6 / 18.35
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 72 Ohms
Features : Round Shaft
0
58 in stock

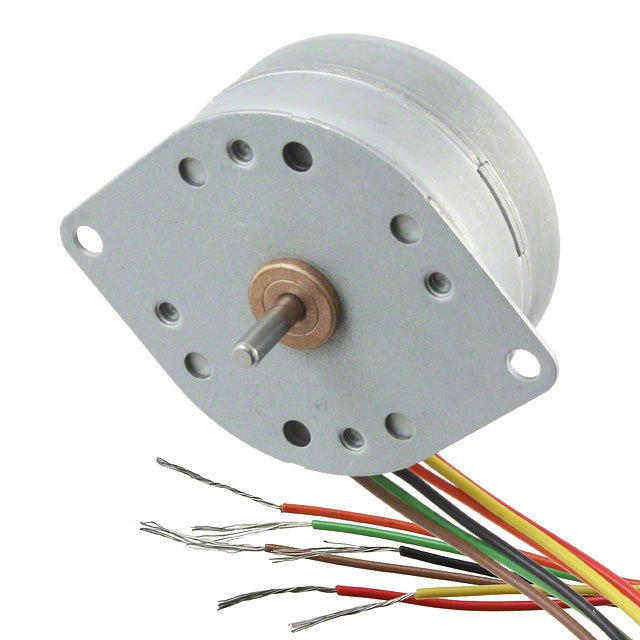

42L048D1U
Portescap
Manufacturer : Portescap
Series : 42L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 960mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 15.1 / 106
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 5.2 Ohms
Features : Round Shaft
Series : 42L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 960mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 15.1 / 106
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 5.2 Ohms
Features : Round Shaft
0
33 in stock

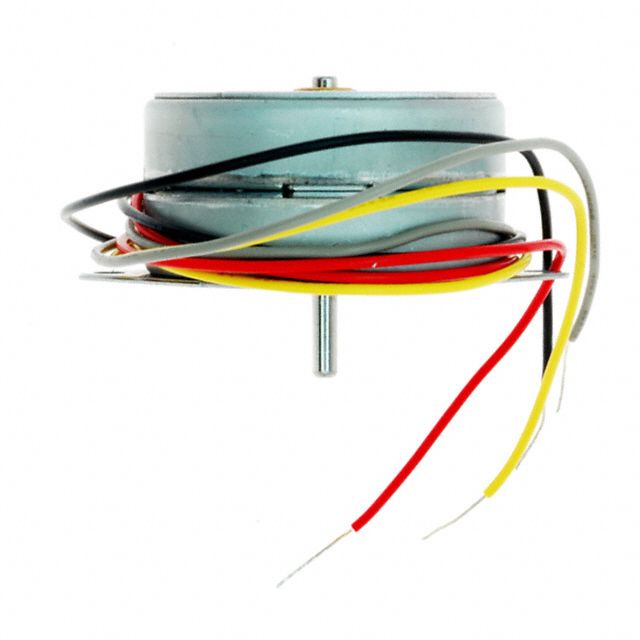

42M048C1B
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
463 in stock

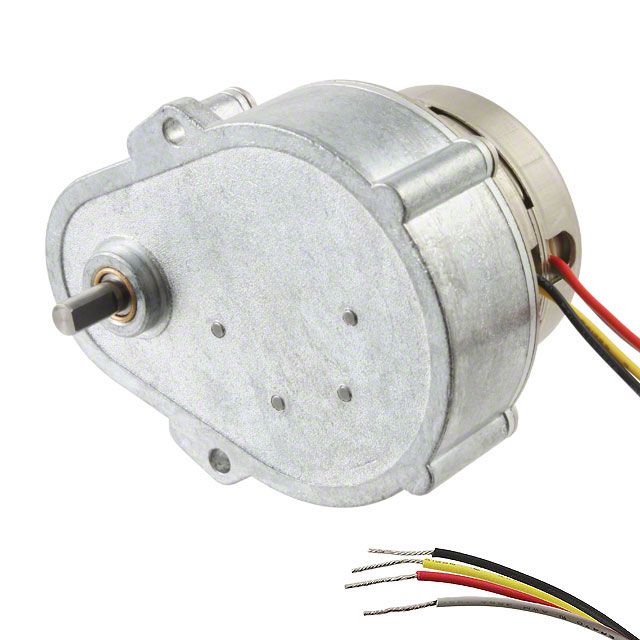

42M048C1B-Z36
Portescap
Manufacturer : Portescap
Series : 42M-Z
Part Status : Obsolete
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 2400
Step Angle : 0.15°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.188" (4.77mm)
Length - Shaft and Bearing : 0.500" (12.70mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
Series : 42M-Z
Part Status : Obsolete
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 2400
Step Angle : 0.15°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.188" (4.77mm)
Length - Shaft and Bearing : 0.500" (12.70mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
100 in stock

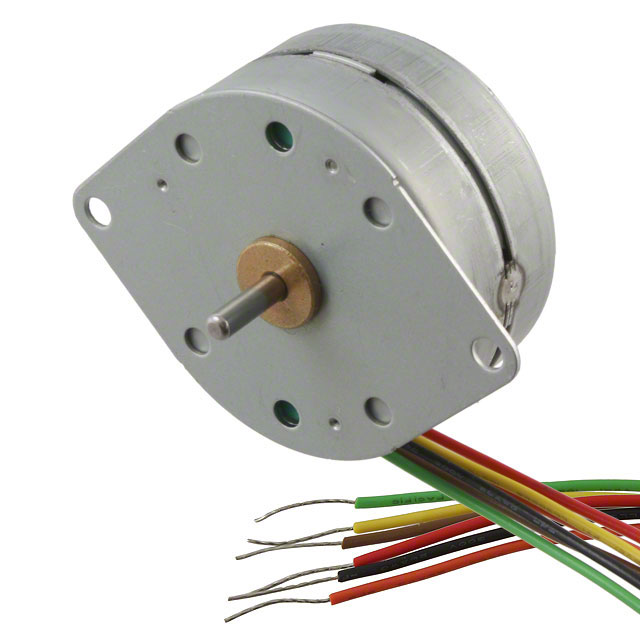

42M048C1U
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
74 in stock

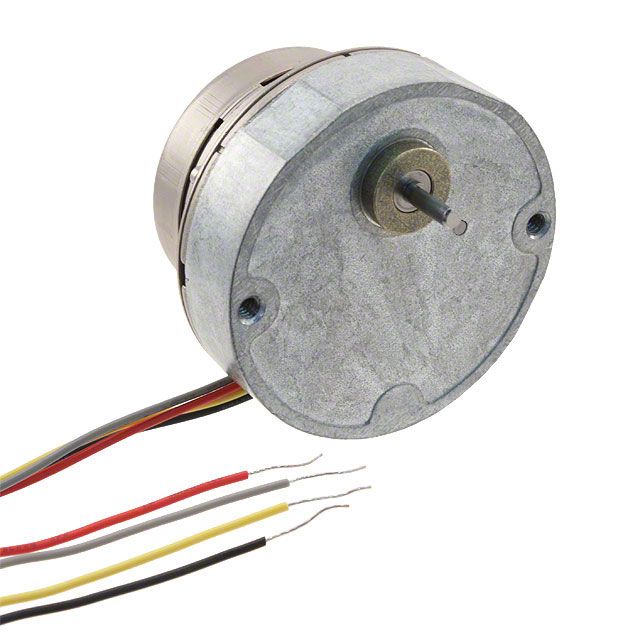

42M048C2B-R21
Portescap
Manufacturer : Portescap
Series : 42M-R
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 12VDC
Current Rating : 550mA
Steps per Revolution : 480
Step Angle : 0.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.093" (2.36mm)
Length - Shaft and Bearing : 0.469" (11.92mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
Series : 42M-R
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 12VDC
Current Rating : 550mA
Steps per Revolution : 480
Step Angle : 0.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.093" (2.36mm)
Length - Shaft and Bearing : 0.469" (11.92mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
0
215 in stock

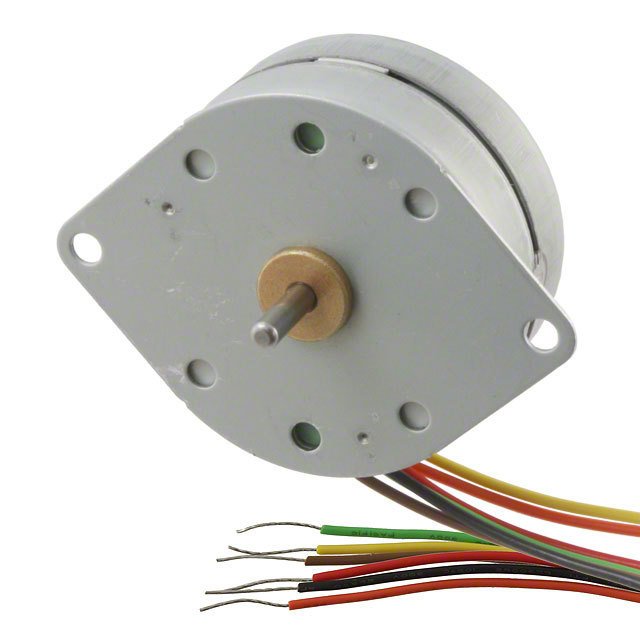

42M048C2U
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 230mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 52.4 Ohms
Features : Round Shaft
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 230mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 52.4 Ohms
Features : Round Shaft
0
462 in stock

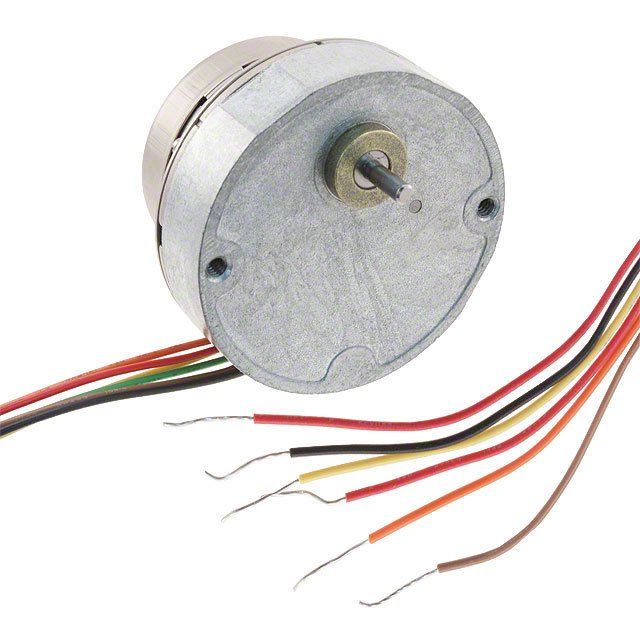

42M048C2U-R21
Portescap
Manufacturer : Portescap
Series : 42M-R
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 230mA
Steps per Revolution : 480
Step Angle : 0.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.093" (2.36mm)
Length - Shaft and Bearing : 0.469" (11.92mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 52.4 Ohms
Features : Round Shaft
Series : 42M-R
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 230mA
Steps per Revolution : 480
Step Angle : 0.75°
Accuracy : -
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.093" (2.36mm)
Length - Shaft and Bearing : 0.469" (11.92mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 52.4 Ohms
Features : Round Shaft
0
53 in stock

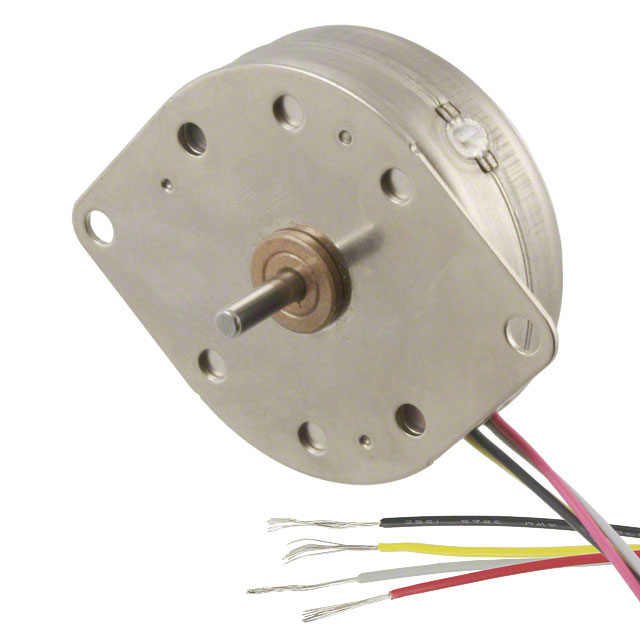

42M100B1B
Portescap
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 400mA
Steps per Revolution : 100
Step Angle : 3.6°
Accuracy : ±11%
Torque - Holding (oz-in / mNm) : 7 / 49.4
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 12.5 Ohms
Features : Round Shaft
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 400mA
Steps per Revolution : 100
Step Angle : 3.6°
Accuracy : ±11%
Torque - Holding (oz-in / mNm) : 7 / 49.4
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 12.5 Ohms
Features : Round Shaft
0
183 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
