Part Number

Manufacturer

Description

Unit Price

In Stock

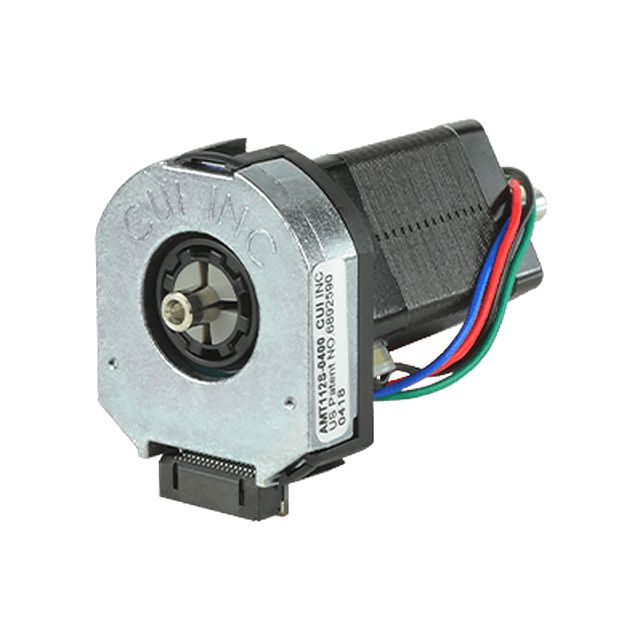

NEMA08-17-01D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA08-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 800mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 4 / 28.25
Size / Dimension : Square - 0.799" x 0.799" (20.30mm x 20.30mm)
NEMA Frame Size : 8
Diameter - Shaft : 0.157" (4.00mm)
Length - Shaft and Bearing : 0.591" (15.00mm)
Mounting Hole Spacing : 0.630" (16.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.4 Ohms
Features : -

9 in stock

NEMA11-13-01D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA11-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 9.2 / 64.97
Size / Dimension : Square - 1.110" x 1.110" (28.20mm x 28.20mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.791" (20.10mm)
Mounting Hole Spacing : 0.909" (23.10mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.7 Ohms
Features : -

10 in stock

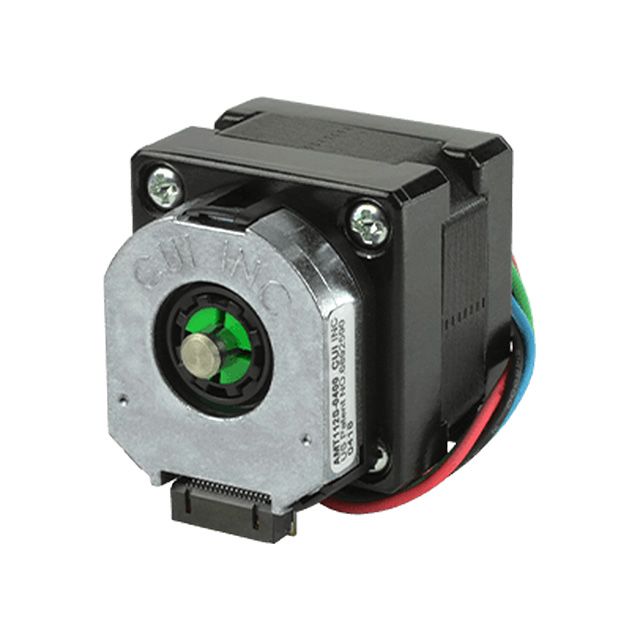

NEMA11-18-01D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA11-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 13.7 / 96.74
Size / Dimension : Square - 1.110" x 1.110" (28.20mm x 28.20mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.791" (20.10mm)
Mounting Hole Spacing : 0.909" (23.10mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 7.1 Ohms
Features : -

10 in stock

NEMA11-18-02D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA11-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1.3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 13.7 / 96.74
Size / Dimension : Square - 1.110" x 1.110" (28.20mm x 28.20mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.791" (20.10mm)
Mounting Hole Spacing : 0.909" (23.10mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.3 Ohms
Features : -

10 in stock

NEMA11-20-01D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA11-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 16.6 / 117.22
Size / Dimension : Square - 1.110" x 1.110" (28.20mm x 28.20mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.791" (20.10mm)
Mounting Hole Spacing : 0.909" (23.10mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 8.6 Ohms
Features : -

10 in stock

NEMA14-10-04D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA14-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 450mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 7.5 / 52.96
Size / Dimension : Square - 1.390" x 1.390" (35.30mm x 35.30mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.602" (15.30mm)
Mounting Hole Spacing : 1.024" (26.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 3.8 Ohms
Features : -

10 in stock

NEMA14-10-08D-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA14-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 350mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 7.5 / 52.96
Size / Dimension : Square - 1.390" x 1.390" (35.30mm x 35.30mm)
NEMA Frame Size : 14
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.602" (15.30mm)
Mounting Hole Spacing : 1.024" (26.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 8.5 Ohms
Features : -

10 in stock

NEMA17-13-04PD-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA17-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 1.3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 42 / 296.59
Size / Dimension : Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 2.5 Ohms
Features : Flatted Shaft

8 in stock

NEMA17-13-04SD-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA17-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 42 / 296.59
Size / Dimension : Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 9.9 Ohms
Features : Flatted Shaft

10 in stock

NEMA17-16-06PD-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA17-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 63 / 444.88
Size / Dimension : Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 2.7 Ohms
Features : Flatted Shaft

8 in stock

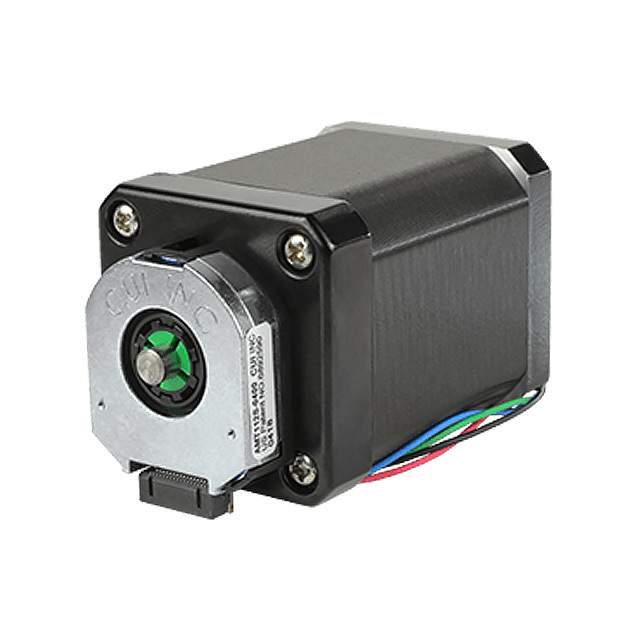

NEMA17-16-06SD-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA17-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 0.7A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 63 / 444.88
Size / Dimension : Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 10.8 Ohms
Features : Flatted Shaft

10 in stock

NEMA17-19-07PD-AMT112S

CUI, Inc.

Manufacturer : CUI Inc.
Series : NEMA17-AMT112S
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 24 ~ 48VDC
Current Rating : 1.1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.2%
Torque - Holding (oz-in / mNm) : 83 / 586.11
Size / Dimension : Square - 1.669" x 1.669" (42.40mm x 42.40mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.2 Ohms
Features : Flatted Shaft

8 in stock
