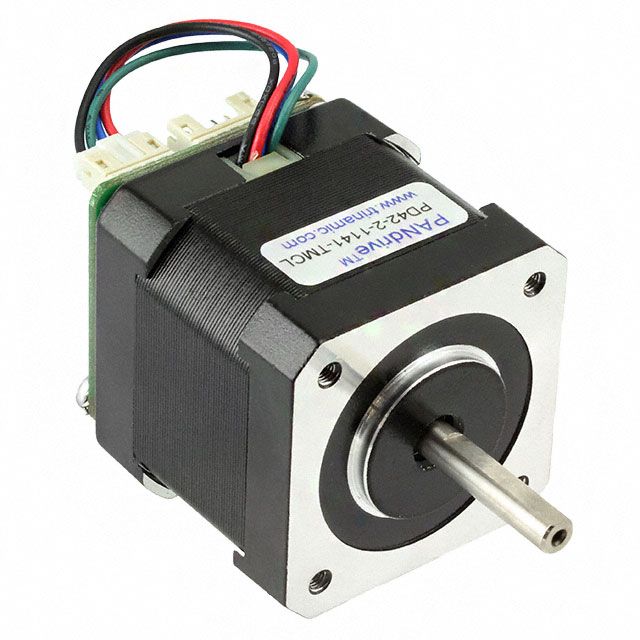

PD42-2-1141
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 49.56 / 350
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 49.56 / 350
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
10 in stock
PD42-2-1240-CANOPEN
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 50.98 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 50.98 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Flatted Shaft
0
3 in stock
PD42-2-1240-TMCL
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 50.98 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 50.98 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Flatted Shaft
0
8 in stock

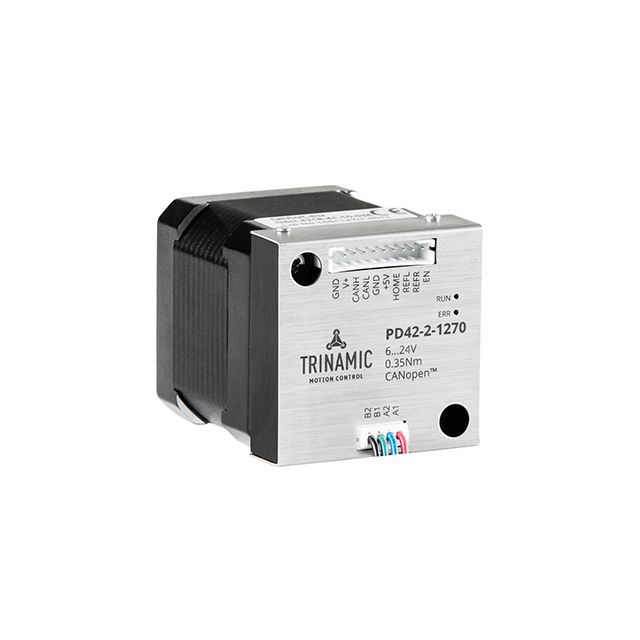

PD42-2-1270-CANOPEN
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Round Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Round Shaft
0
55 in stock

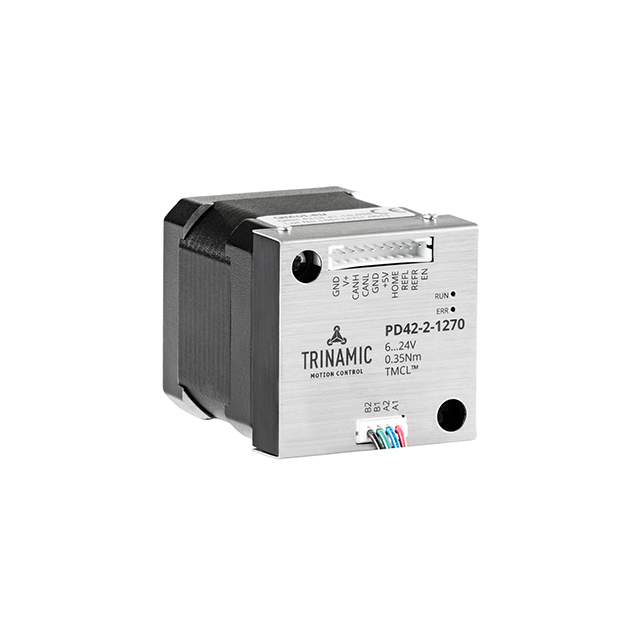

PD42-2-1270-TMCL
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Round Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Round Shaft
0
29 in stock

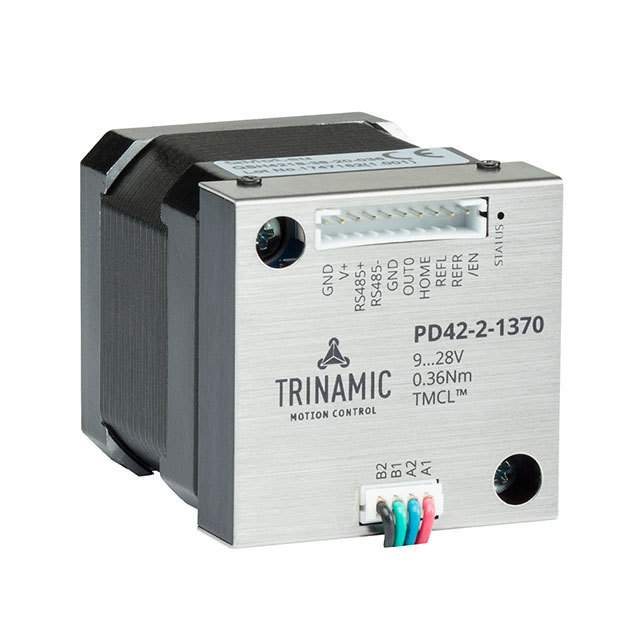

PD42-2-1370-TMCL
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.4VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 50.98 / 360
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.4VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 50.98 / 360
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Flatted Shaft
0
10 in stock

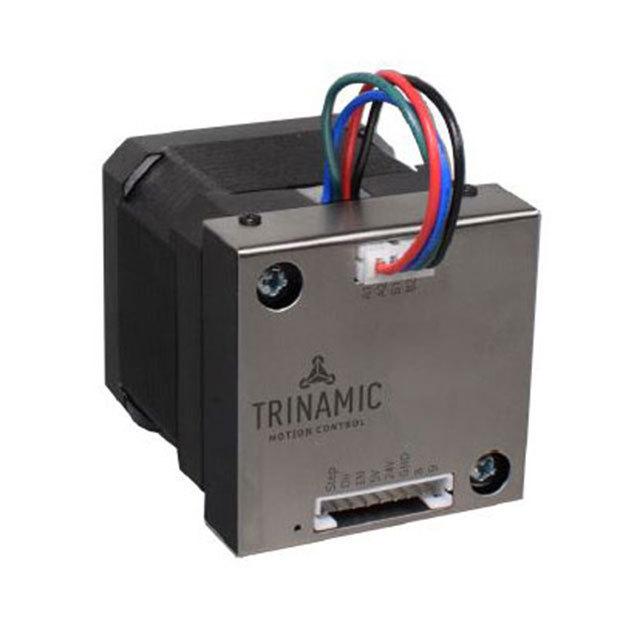

PD42-3-1070
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 62.3 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.4 Ohms
Features : Integrated Controller, Round Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 62.3 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.4 Ohms
Features : Integrated Controller, Round Shaft
0
10 in stock

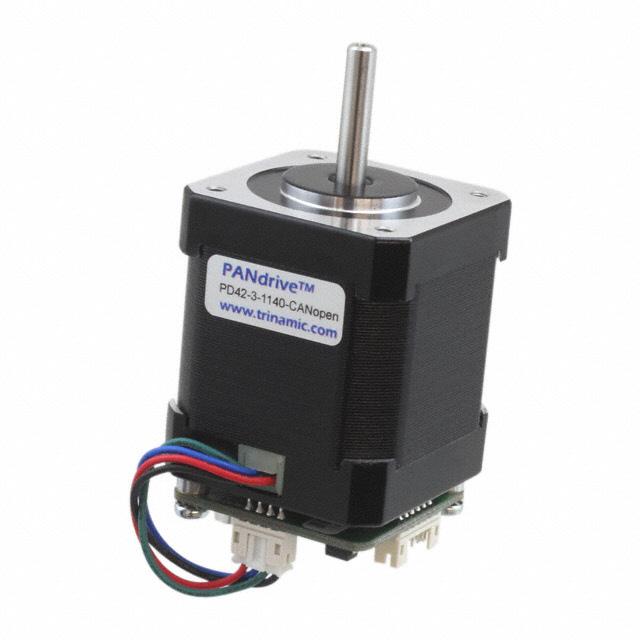

PD42-3-1140-CANOPEN
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 62.3 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 62.3 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
30 in stock

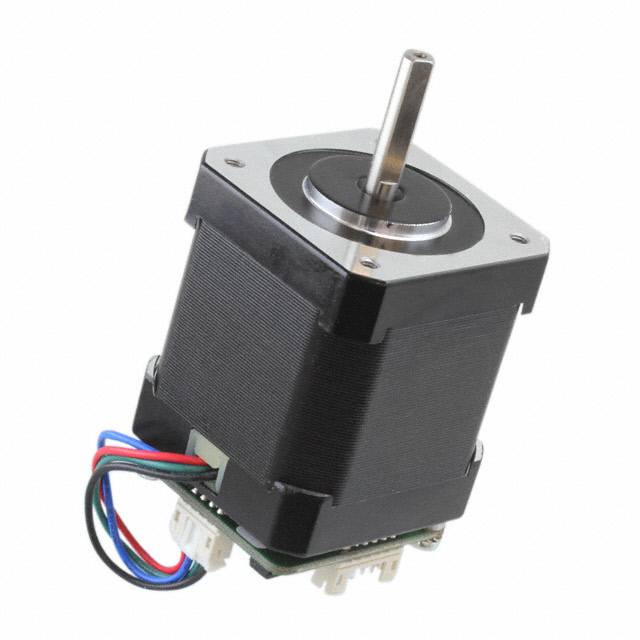

PD42-3-1140-TMCL
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 62.3 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 62.3 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
21 in stock
PD42-3-1141
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 69.39 / 490
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 69.39 / 490
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
43 in stock
PD42-3-1240-CANOPEN
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 62.31 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.4 Ohms
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 62.31 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.4 Ohms
Features : Integrated Controller, Flatted Shaft
0
2 in stock
PD42-3-1240-TMCL
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 62.31 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.4 Ohms
Features : Integrated Controller, Flatted Shaft
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 62.31 / 440
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.4 Ohms
Features : Integrated Controller, Flatted Shaft
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
