Part Number

Manufacturer

Description

Unit Price

In Stock

GB DASPA2.13-EPER-24-LM-100-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSCONIQ® P 2226
Part Status : Preliminary
Color : Blue
Wavelength : 465nm
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : 28 lm/W
Current - Max : 250mA
Flux @ Current/Temperature - Test : 8 lm (Typ)
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 1009 (2622 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

100 in stock

GD CS8PM1.14-UNUO-W4-1-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 80
Part Status : Active
Color : Blue
Wavelength : 450nm (439nm ~ 461nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

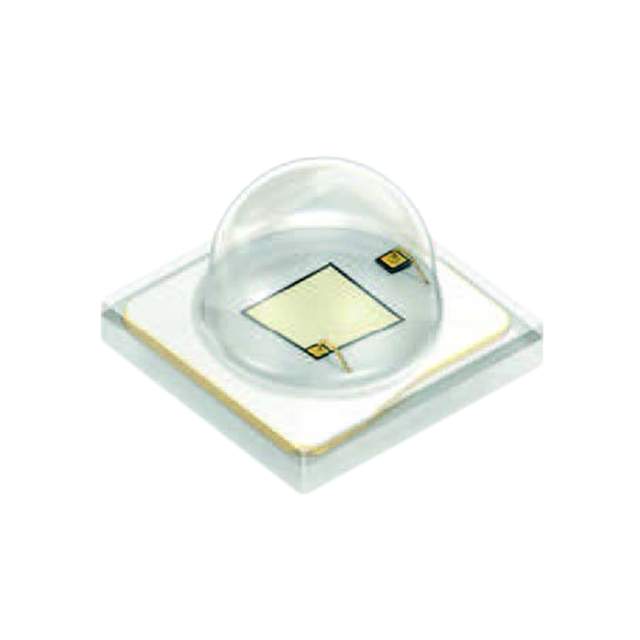

GD CS8PM1.14-UOVJ-W4-1

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® SSL 80
Part Status : Active
Color : Blue
Wavelength : 455nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 711mW (658mW ~ 763mW)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.091" (2.31mm)

100 in stock

GD CSHPM1.14-UNUO-W4-1-350-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : OSLON® SSL 150
Part Status : Active
Color : Blue
Wavelength : 450nm (439nm ~ 461nm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

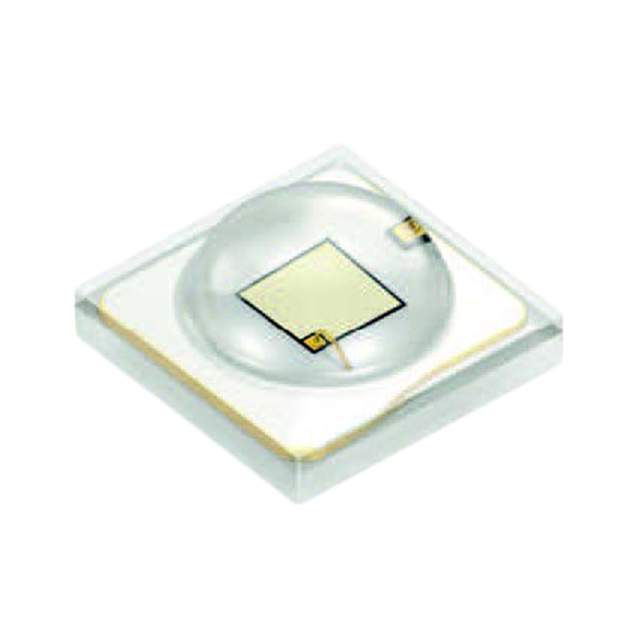

GD CSHPM1.14-UOVJ-W4-1

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® SSL 150
Part Status : Active
Color : Blue
Wavelength : 455nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 711mW (658mW ~ 763mW)
Temperature - Test : 25°C
Viewing Angle : 150°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.061" (1.54mm)

5630 in stock

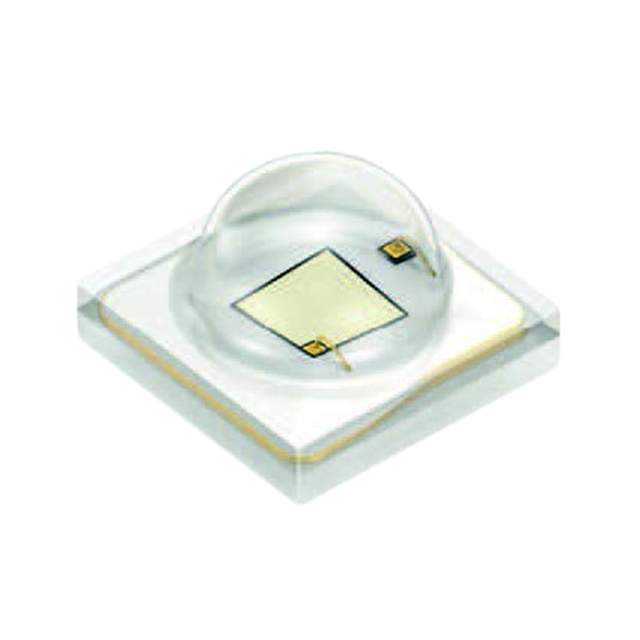

GD CSSPM1.14-UOVJ-W4-1

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® SSL 120
Part Status : Active
Color : Blue
Wavelength : 455nm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 2.85V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 711mW (658mW ~ 763mW)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.061" (1.54mm)

182 in stock

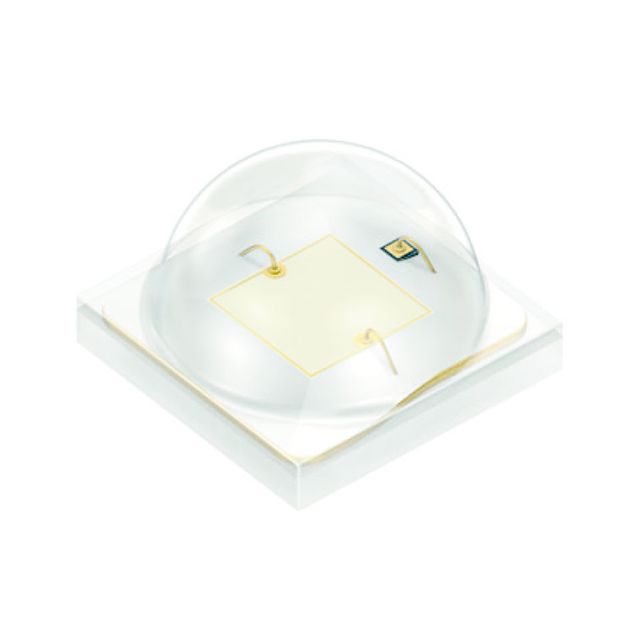

GD CSSRM2.14-ARAT-24-1-700-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSLON® Square
Part Status : Active
Color : Blue
Wavelength : 450nm
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : -
Current - Max : 2A
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 1212 (3030 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) : 0.086" (2.19mm)

235 in stock

GD DASPA1.14-RKRM-W5-1

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : DURIS® P 5
Part Status : Obsolete
Color : Blue
Wavelength : 450nm (439nm ~ 461nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : 143mW (121mW ~ 164mW)
Temperature - Test : 25°C
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 1009 (2622 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.052" (1.31mm)

100 in stock

GD DASPA1.14-RMRO-W5-1-100-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Tape & Reel (TR)
Series : DURIS® P 5
Part Status : Discontinued at
Color : Blue
Wavelength : 450nm (439nm ~ 461nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 1009 (2622 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.052" (1.31mm)

100 in stock

GD DASPA1.14-RMSK-5-KN-100-R18-XX

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : DURIS® P 5
Part Status : Last Time Buy
Color : Blue
Wavelength : 450nm
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 105°
Mounting Type : Surface Mount
Package / Case : 1009 (2622 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

100 in stock

GD DASPA1.14-ROSK-W5-1-100-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : -
Series : DURIS® P 5
Part Status : Last Time Buy
Color : Blue
Wavelength : 450nm (Typ)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.95V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 105°
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Size / Dimension : -
Height - Seated (Max) : -

100 in stock

GD DASPA2.14-RMRO-25-1-100-R18

OSRAM Opto Semiconductors, Inc.

Manufacturer : OSRAM Opto Semiconductors Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : OSCONIQ® P 2226
Part Status : Discontinued at
Color : Blue
Wavelength : 450nm
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 2.9V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : -
Temperature - Test : -
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 1009 (2622 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.102" L x 0.087" W (2.60mm x 2.20mm)
Height - Seated (Max) : 0.052" (1.31mm)

100 in stock
