ADG1221BRMZ-REEL7
ADG1221BRMZ-REEL7
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 200 Ohm
Channel-to-Channel Matching (δRon) : 2.5 Ohm
Voltage - Supply, Single (V+) : 5 V ~ 16.5 V
Voltage - Supply, Dual (V±) : ±5 V ~ 16.5 V
Switch Time (Ton, Toff) (Max) : 130ns, 105ns
-3db Bandwidth : 960MHz
Charge Injection : 0.1pC
Channel Capacitance (CS(off), CD(off)) : 2.2pF, 2.2pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)

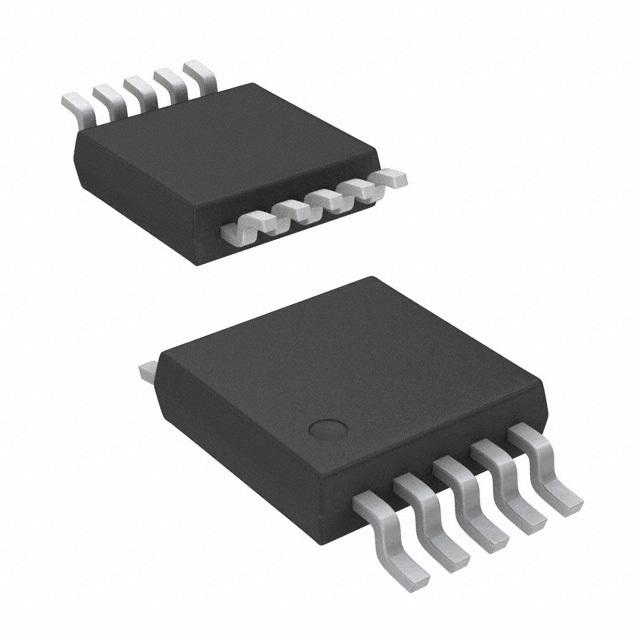

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-MSOP
Availability: 4465 in stock
