ADG1236YCPZ-500RL7
ADG1236YCPZ-500RL7
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 190 Ohm
Channel-to-Channel Matching (δRon) : 3.5 Ohm
Voltage - Supply, Single (V+) : 12V
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 150ns, 90ns
-3db Bandwidth : 1GHz
Charge Injection : -1pC
Channel Capacitance (CS(off), CD(off)) : 1.6pF
Current - Leakage (IS(off)) (Max) : 100pA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)

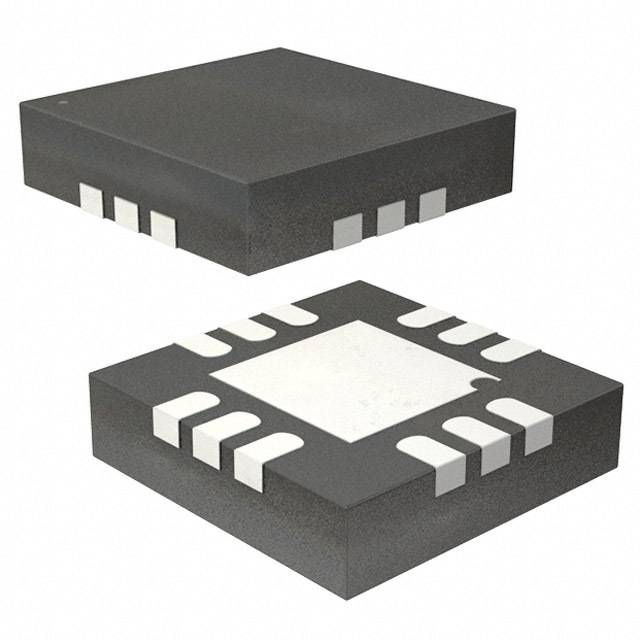

Package / Case : 12-WFQFN Exposed Pad, CSP
Supplier Device Package : 12-LFCSP-WQ (3x3)
Availability: 3747 in stock
