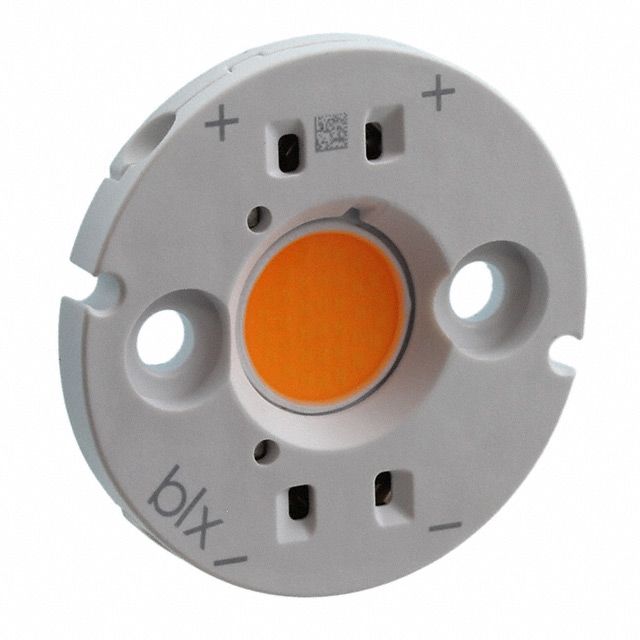

BXRC-20B1001-B-73-SE
BXRC-20B1001-B-73-SE
Manufacturer : Bridgelux
Packaging : Tray
Series : Vero® SE 10 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Round
Flux @ Current/Temperature - Test : 1162 lm (Typ)
Current - Test : 270mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34V
Lumens/Watt @ Current - Test : 126 lm/W
Current - Max : 540mA
CRI (Color Rendering Index) : 65
Viewing Angle : 120°
Features : -
Size / Dimension : 30.80mm Diameter
Height : 3.60mm
Light Emitting Surface (LES) : 9.90mm Diameter
Lens Type : Flat
Availability: 76 in stock
