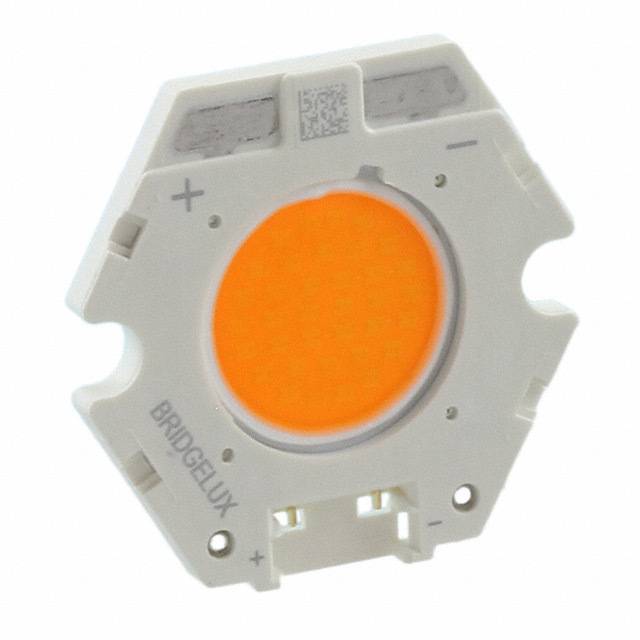

BXRC-20B1001-D-73
BXRC-20B1001-D-73
Manufacturer : Bridgelux
Packaging : Tray
Series : Gen 7 Vero® 10 Array
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 1156 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 25.3V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 700mA
CRI (Color Rendering Index) : 65
Viewing Angle : 120°
Features : With Connector
Size / Dimension : 20.00mm Diameter
Height : 1.90mm
Light Emitting Surface (LES) : 9.90mm Diameter
Lens Type : Flat
Availability: 66 in stock
