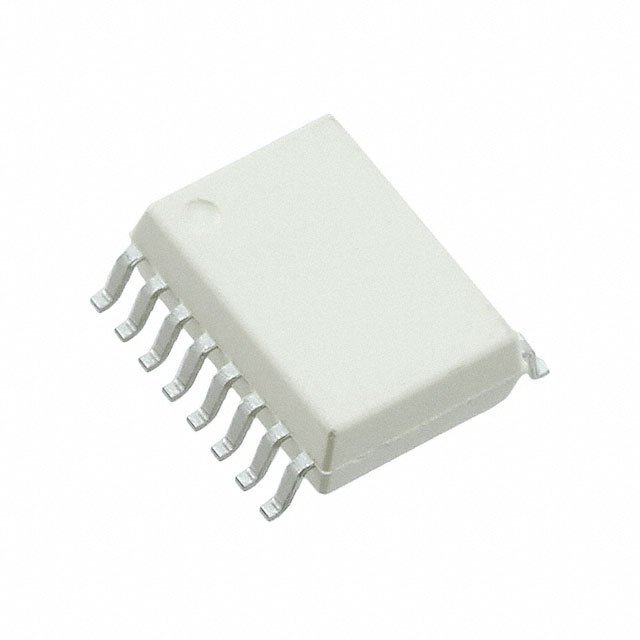

ACPL-352J-000E
ACPL-352J-000E
Manufacturer : Broadcom Limited
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 50kV/µs
Propagation Delay tpLH / tpHL (Max) : 150ns, 150ns
Pulse Width Distortion (Max) : 50ns
Rise / Fall Time (Typ) : 37ns, 30ns
Current - Output High, Low : 4.5A, 4.5A
Current - Peak Output : 5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SO
Approvals : CSA, IEC/EN/DIN, UR
Availability: 637 in stock
