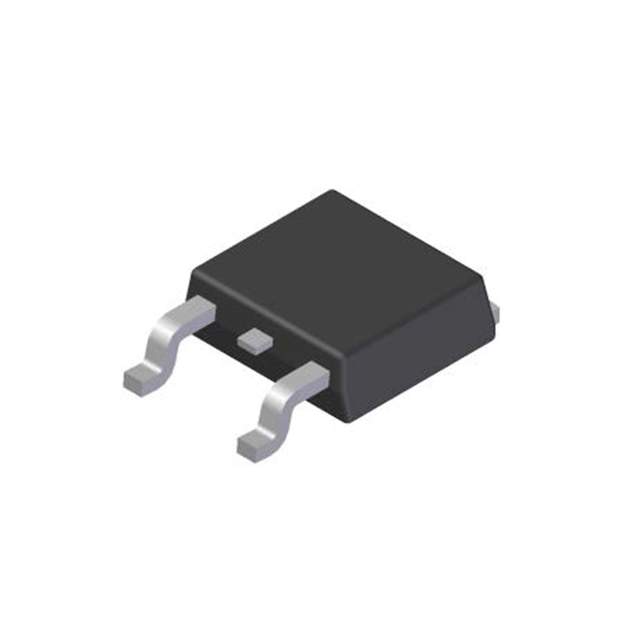

ZXMN6A08KTC
ZXMN6A08KTC
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 5.36A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 80 mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.8nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 459pF @ 40V
FET Feature : -
Power Dissipation (Max) : 2.12W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252-3
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Availability: 8611 in stock
