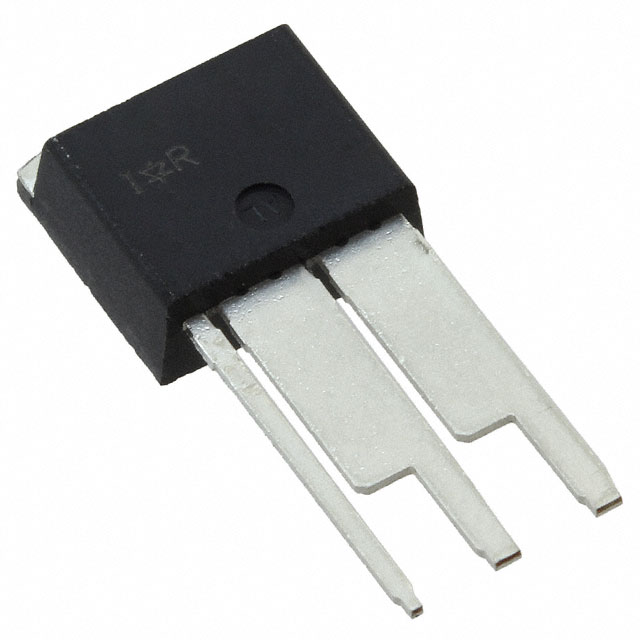

AUIRF1324WL
AUIRF1324WL
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 24V
Current - Continuous Drain (Id) @ 25°C : 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.3 mOhm @ 195A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 180nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 7630pF @ 19V
FET Feature : -
Power Dissipation (Max) : 300W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-262-3 Wide
Package / Case : TO-262-3 Wide Leads
Availability: 165 in stock
