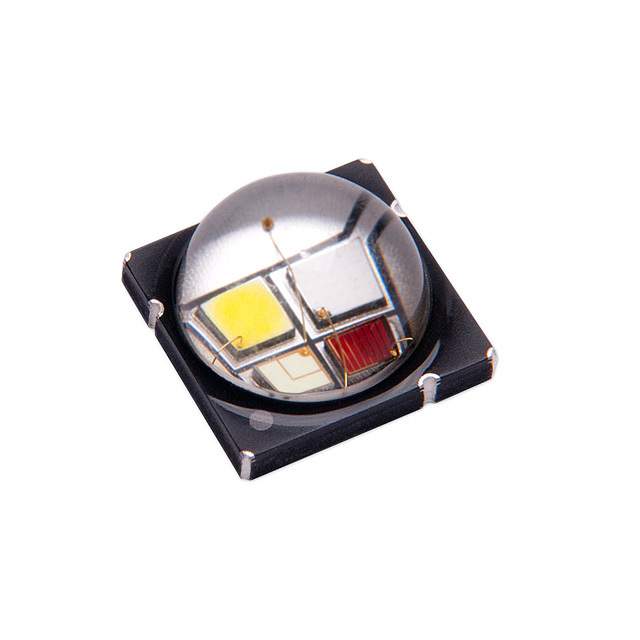

LZ4-00MD09-0000
LZ4-00MD09-0000
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6100K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 115 lm Red, 160 lm Green, 30 lm Blue, 190 lm White
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)
Availability: 174 in stock
