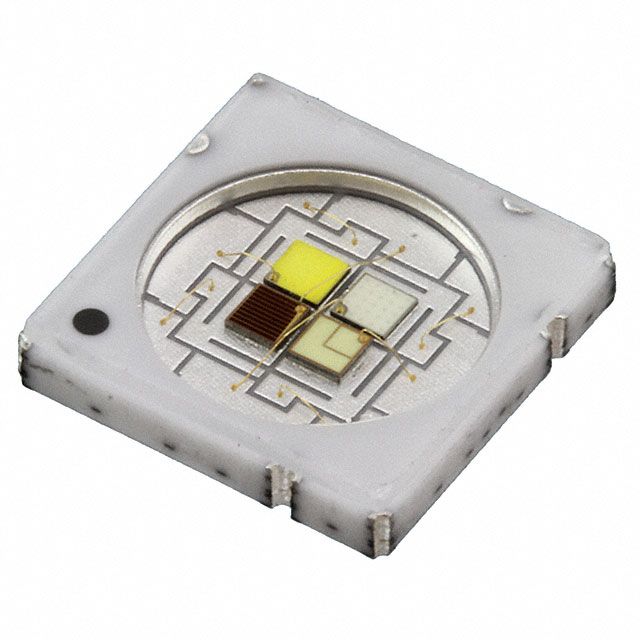

LZ4-04MDC9-0000
LZ4-04MDC9-0000
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6500K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 62 lm Red, 133 lm Green, 24 lm Blue, 183nm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.059" (1.50mm)
Availability: 183 in stock
