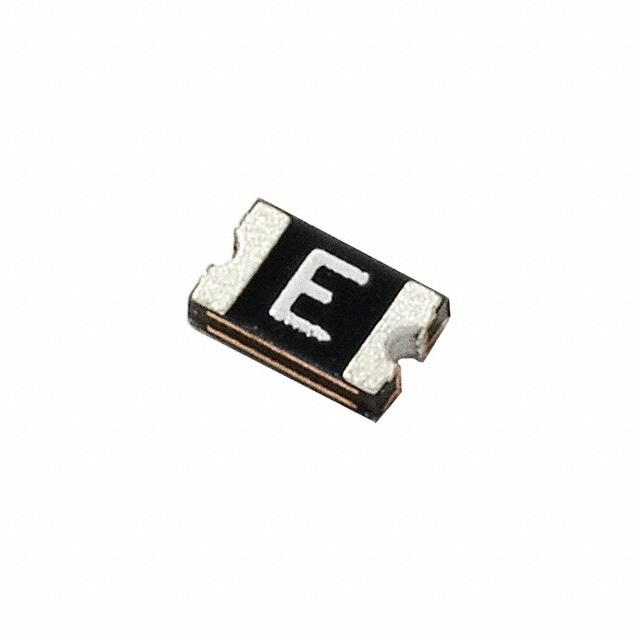

0805L075WR
0805L075WR
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 0805L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 350 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
