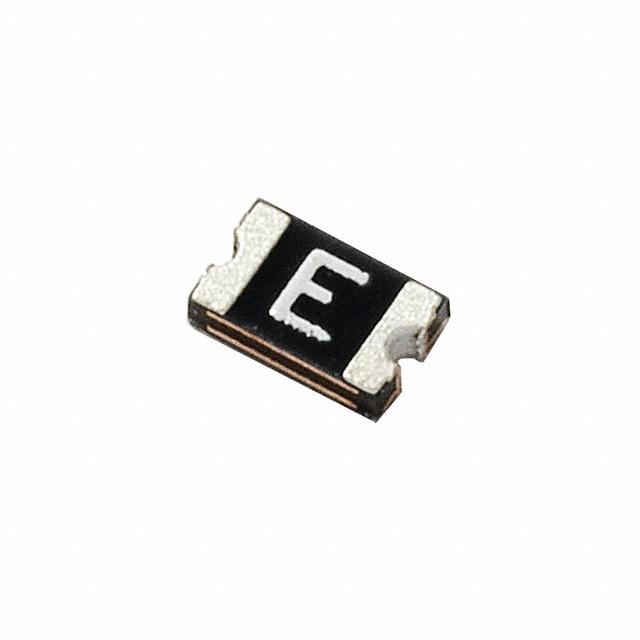

0805L110WR
0805L110WR
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 0805L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 160 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Availability: 19973 in stock
