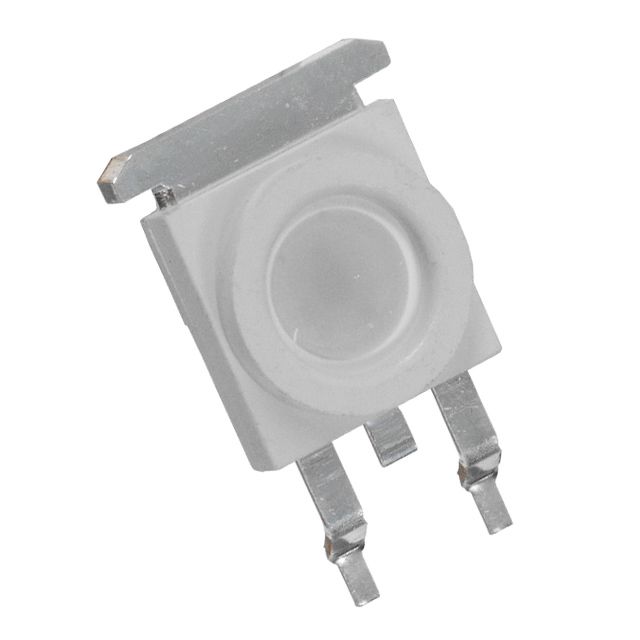

SML-LX1610RGBW/A
SML-LX1610RGBW/A
Manufacturer : Lumex Opto/Components Inc.
Packaging : Tube
Series : TitanBrite™
Part Status : Active
Color : Red, Green, Blue (RGB)
Wavelength : 626nm Red, 525nm Green, 470nm Blue
Current - Test : 300mA Red, 350mA Green, 350mA Blue
Voltage - Forward (Vf) (Typ) : 2.1V Red, 3.5V Green, 3.5V Blue
Lumens/Watt @ Current - Test : 40 lm/W Red, 20 lm/W Green, 7 lm/W Blue
Current - Max : 300mA Red, 350mA Green, 350mA Blue
Flux @ Current/Temperature - Test : 25 lm Red, 25 lm Green, 8 lm Blue
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SMD
Size / Dimension : 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) : 0.130" (3.30mm)
Availability: 916 in stock
