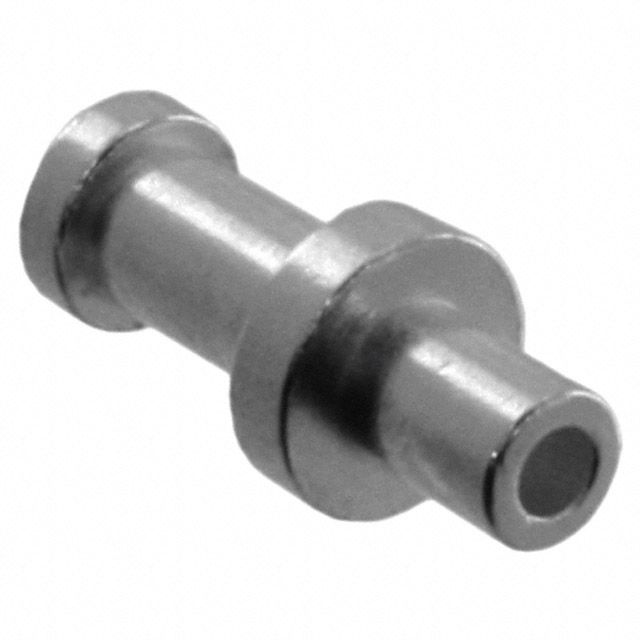

2505-2-00-44-00-00-07-0
2505-2-00-44-00-00-07-0
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2505
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.093" (2.36mm)
Length - Overall : 0.280" (7.11mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.097" (2.46mm)
Staking Side OD : 0.071" (1.80mm)
Staking Side ID : 0.043" (1.09mm)
Mounting Hole Diameter : 0.076" (1.93mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)
Insulation : Non-Insulated
Availability: 3689 in stock
