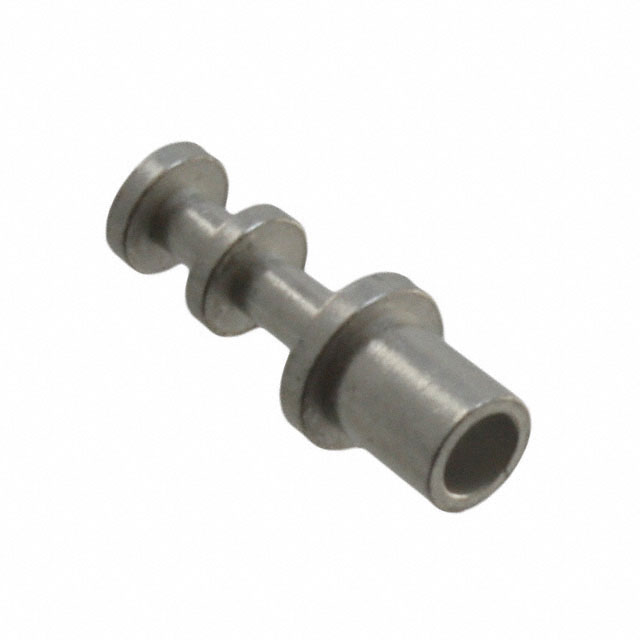

2551-2-00-80-00-00-07-0
2551-2-00-80-00-00-07-0
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2551
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.237" (6.02mm)
Length - Below Flange : 0.105" (2.67mm)
Length - Overall : 0.342" (8.69mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.094" (2.39mm)
Staking Side OD : 0.090" (2.29mm)
Staking Side ID : 0.064" (1.63mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Availability: 2346 in stock
