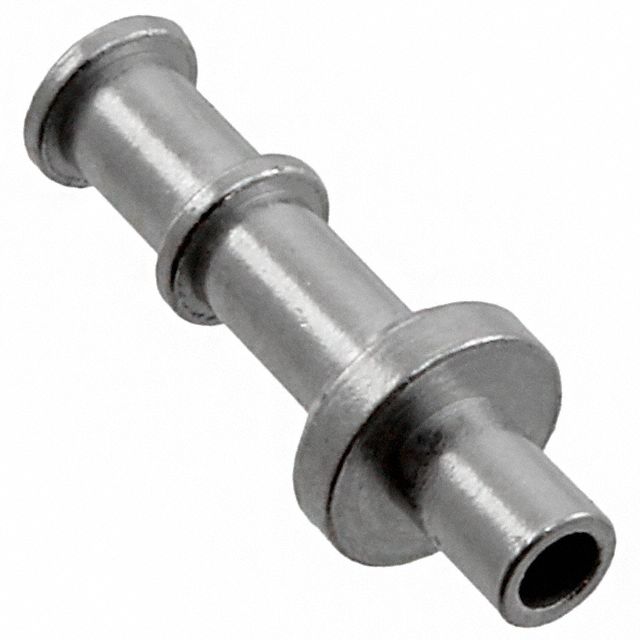

2704-2-00-80-00-00-07-0
2704-2-00-80-00-00-07-0
Manufacturer : Mill-Max Manufacturing Corp.
Series : 2704
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.328" (8.33mm)
Length - Below Flange : 0.105" (2.67mm)
Length - Overall : 0.433" (11.00mm)
Mounting Type : Through Hole
Termination : Swage
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : 0.109" (2.77mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : 0.055" (1.40mm)
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
Insulation : Non-Insulated
Availability: 60 in stock
