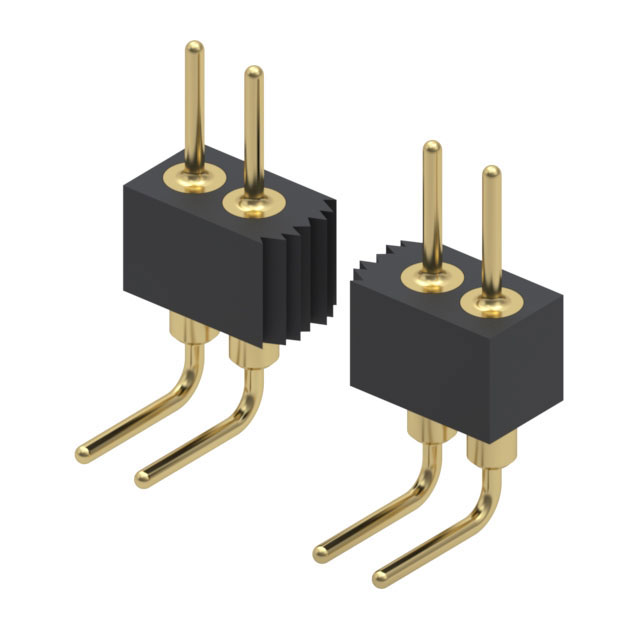

870-10-021-20-001000
870-10-021-20-001000
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Tube
Series : 870
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.070" (1.78mm)
Number of Positions : 21
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.133" (3.38mm)
Contact Length - Post : 0.112" (2.84mm)
Overall Contact Length : -
Insulation Height : 0.104" (2.64mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass Alloy
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT)
Features : -
Operating Temperature : -
Ingress Protection : -
Material Flammability Rating : -
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Availability: 86 in stock
