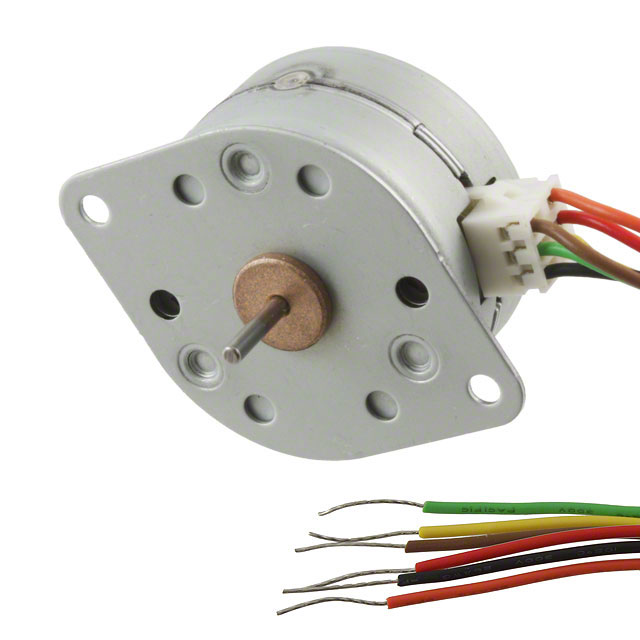

35L048B2U
35L048B2U
Manufacturer : Portescap
Series : 35L
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 190mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 3.5 / 25
Size / Dimension : Round - 1.420" Dia (35.94mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.650" (42.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 64 Ohms
Features : Round Shaft
Availability: 695 in stock
