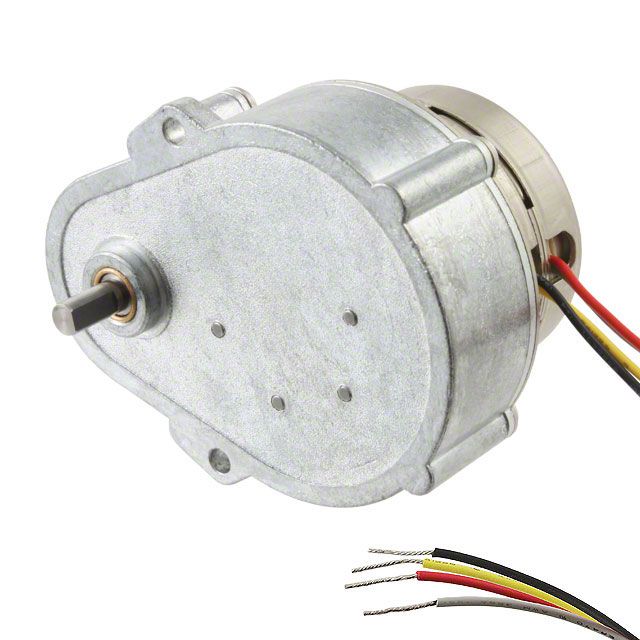

42M048C1B-Z36
42M048C1B-Z36
Manufacturer : Portescap
Series : 42M-Z
Part Status : Obsolete
Type : Permanent Magnet Gear Motor
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 2400
Step Angle : 0.15°
Accuracy : -
Torque - Holding (oz-in / mNm) : 11.9 / 84
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.188" (4.77mm)
Length - Shaft and Bearing : 0.500" (12.70mm)
Mounting Hole Spacing : 1.880" (47.63mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
Availability: 100 in stock
New Original Stock
