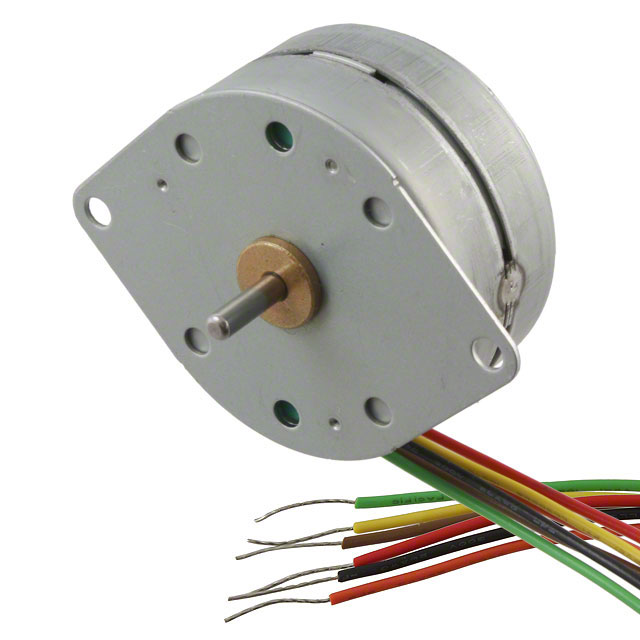

42M048C1U
42M048C1U
Manufacturer : Portescap
Series : 42M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 550mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 9.4 / 66.2
Size / Dimension : Round - 1.650" Dia (42.00mm)
NEMA Frame Size : -
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.450" (11.43mm)
Mounting Hole Spacing : 1.950" (49.48mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 9.1 Ohms
Features : Round Shaft
