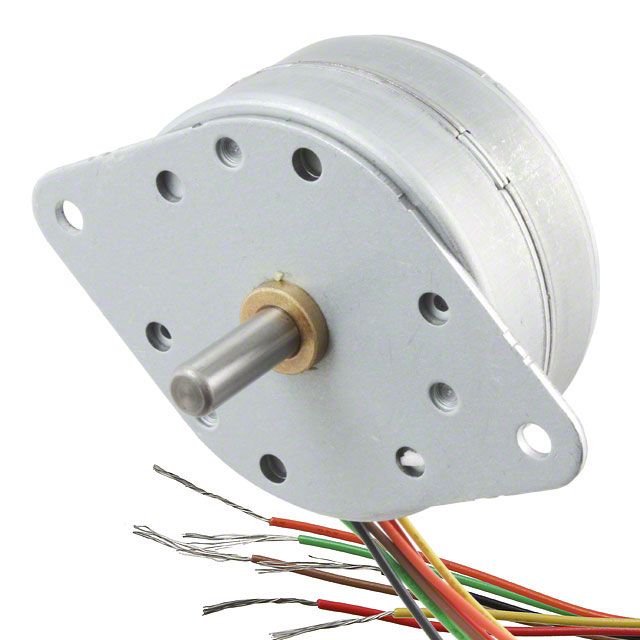

55M048D1U
55M048D1U
Manufacturer : Portescap
Series : 55M
Part Status : Obsolete
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 960mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 23 / 163
Size / Dimension : Round - 2.170" Dia (55.12mm)
NEMA Frame Size : -
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.750" (19.05mm)
Mounting Hole Spacing : 2.630" (66.68mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 5.2 Ohms
Features : Round Shaft
Availability: 100 in stock
