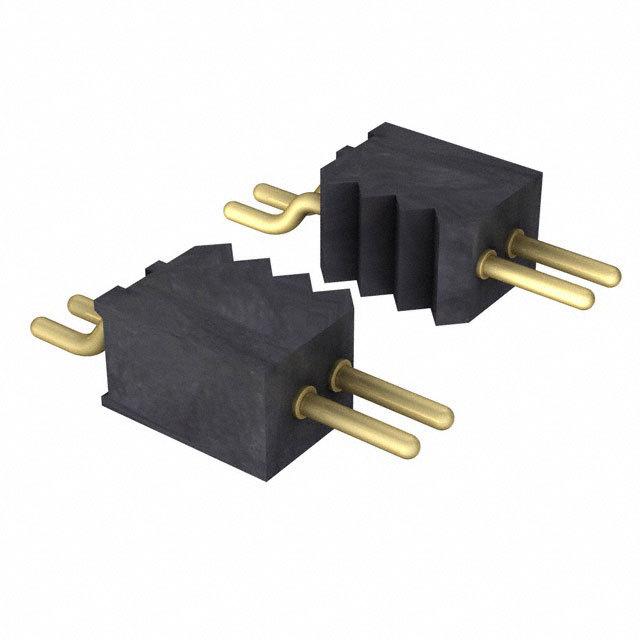

860-10-050-40-001101
860-10-050-40-001101
Manufacturer : Preci-Dip
Packaging : Bulk
Series : 860
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.039" (1.00mm)
Number of Positions : 50
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board
Shrouding : Unshrouded
Mounting Type : Surface Mount, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.086" (2.20mm)
Contact Length - Post : -
Overall Contact Length : -
Insulation Height : 0.087" (2.20mm)
Contact Shape : Circular
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 10.0µin (0.25µm)
Contact Finish - Post : Gold
Contact Material : Brass
Insulation Material : Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features : -
Operating Temperature : -55°C ~ 125°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : 1A
Voltage Rating : 150VDC
Availability: 24 in stock
