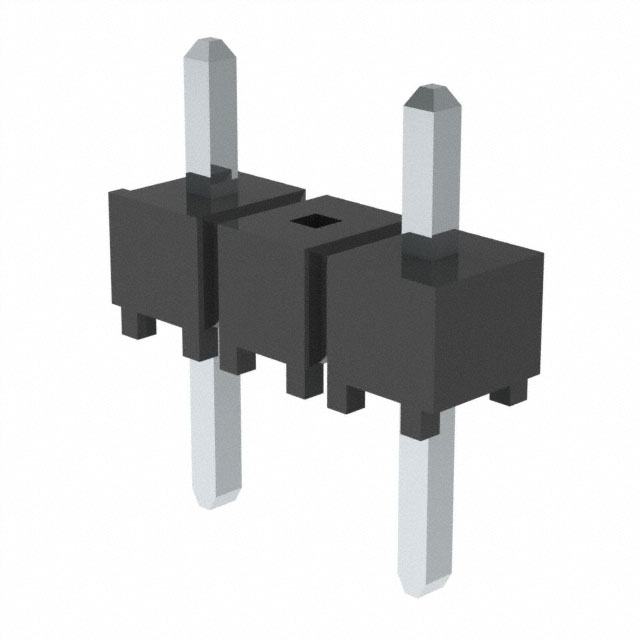

TSW-202-05-T-S

Manufacturer: Samtec, Inc.
TSW-202-05-T-S
Manufacturer : Samtec Inc.
Packaging : Bulk
Series : TSW
Part Status : Active
Connector Type : Header
Contact Type : Male Pin
Pitch - Mating : 0.200" (5.08mm)
Number of Positions : 2
Number of Rows : 1
Row Spacing - Mating : -
Number of Positions Loaded : All
Style : Board to Board or Cable
Shrouding : Unshrouded
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Length - Mating : 0.105" (2.67mm)
Contact Length - Post : 0.130" (3.30mm)
Overall Contact Length : 0.335" (8.51mm)
Insulation Height : 0.100" (2.54mm)
Contact Shape : Square
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Contact Finish - Post : Tin
Contact Material : Phosphor Bronze
Insulation Material : Polybutylene Terephthalate (PBT)
Features : -
Operating Temperature : -55°C ~ 105°C
Ingress Protection : -
Material Flammability Rating : UL94 V-0
Insulation Color : Black
Current Rating : -
Voltage Rating : -
Availability: 2788 in stock
