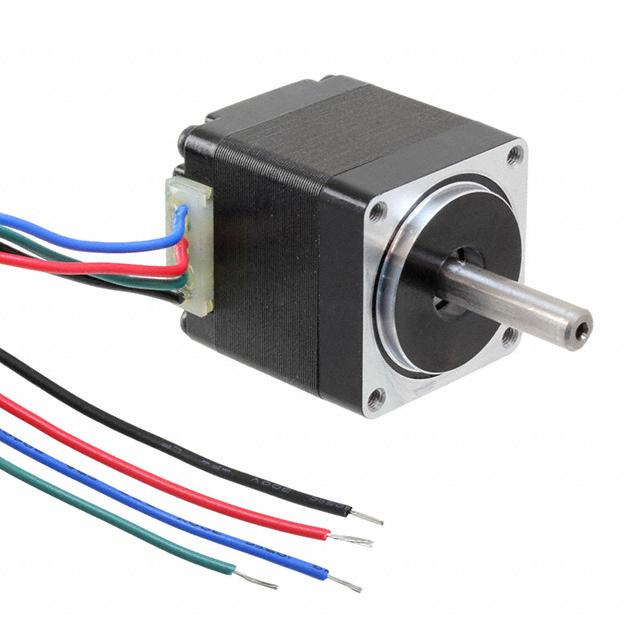

QSH2818-32-07-006
QSH2818-32-07-006
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH2818
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.8VDC
Current Rating : 670mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 8.49 / 60
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.905" (22.98mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5.6 Ohms
Features : Flatted Shaft
Availability: 147 in stock
