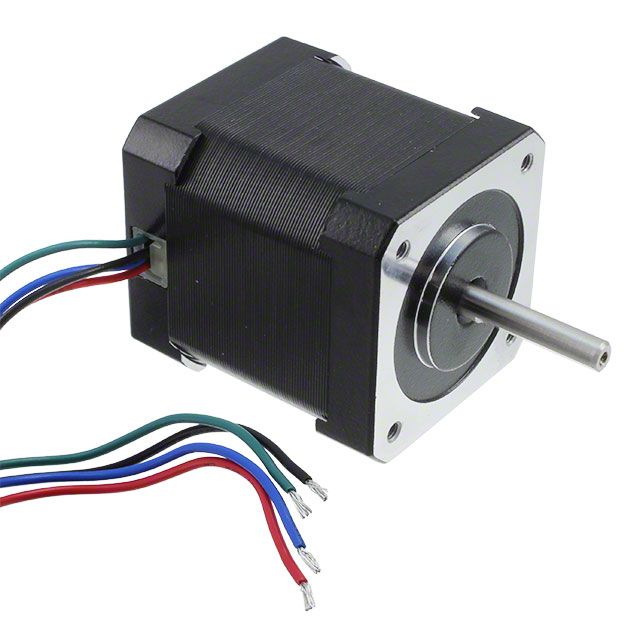

QSH4218-51-10-049
QSH4218-51-10-049
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH4218
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 69.39 / 490
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 5 Ohms
Features : Flatted Shaft
