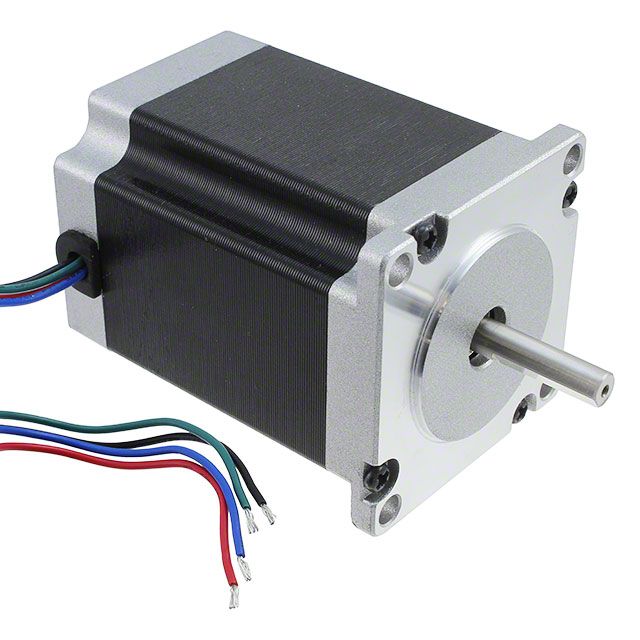

QSH5718-76-28-189
QSH5718-76-28-189
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH5718
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 3.2VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 267.64 / 1890
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.13 Ohms
Features : Flatted Shaft
Availability: 31 in stock
