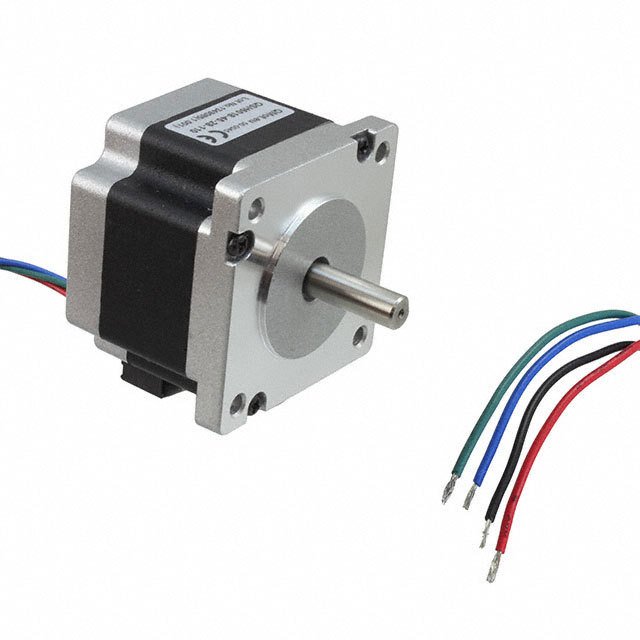

QSH6018-45-28-110
QSH6018-45-28-110
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH6018
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.1VDC
Current Rating : 2.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 155.77 / 1100
Size / Dimension : Square - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size : 24
Diameter - Shaft : 0.315" (8.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 700 mOhms
Features : Flatted Shaft
Availability: 27 in stock
