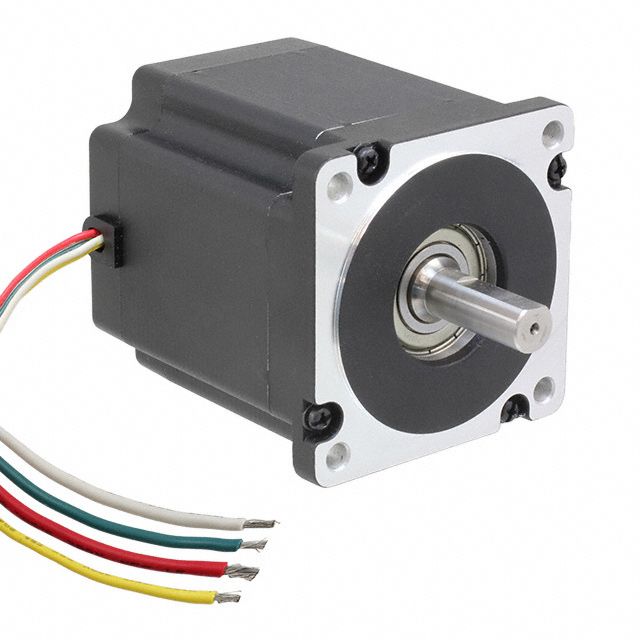

QSH8618-96-55-700
QSH8618-96-55-700
Manufacturer : Trinamic Motion Control GmbH
Series : QMot QSH8618
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2.56VDC
Current Rating : 5.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 991.28 / 7000
Size / Dimension : Square - 3.380" x 3.380" (85.85mm x 85.85mm)
NEMA Frame Size : 34
Diameter - Shaft : 0.500" (12.70mm)
Length - Shaft and Bearing : 1.310" (33.27mm)
Mounting Hole Spacing : 2.740" (69.60mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 450 mOhms
Features : Flatted Shaft
