Part Number
Manufacturer
Description
Unit Price
In Stock
T75S5D112-05
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 42.4mA
Coil Voltage : 5VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 3.6 VDC
Turn Off Voltage (Min) : 0.5 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 42.4mA
Coil Voltage : 5VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 3.6 VDC
Turn Off Voltage (Min) : 0.5 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
473 in stock
T75S5D112-12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.5mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 8.5 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.5mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 8.5 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
1572 in stock
T75S5D112-24
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 10.6mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 17.2 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 10.6mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 17.2 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
1430 in stock

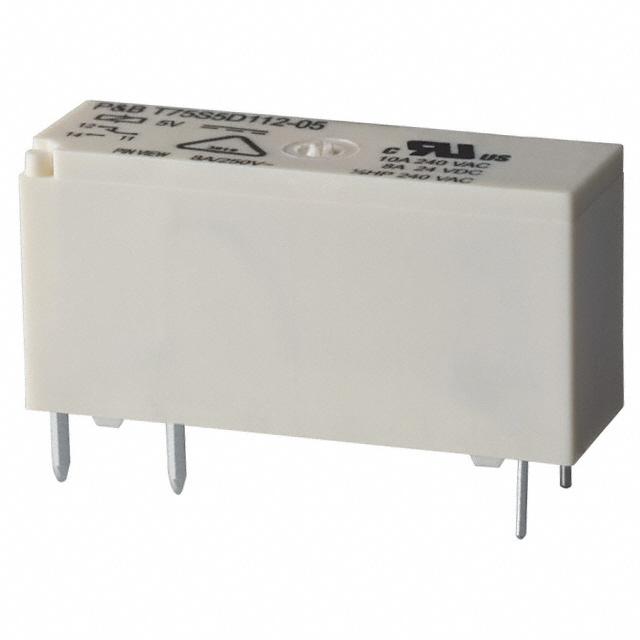

T75S5D112-48
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 5.5mA
Coil Voltage : 48VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 34.5 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : T75
Part Status : Last Time Buy
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 5.5mA
Coil Voltage : 48VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 14A
Switching Voltage : 380VAC - Max
Turn On Voltage (Max) : 34.5 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 6ms
Release Time : 3ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
178 in stock
T77S1D10-05
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 90.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.25 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 90.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.25 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
0
3382 in stock
T77S1D10-12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 0.6 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 0.6 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
0
24878 in stock
T77S1D10-24
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.8mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 18.8mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
0
6582 in stock
T77S1D3-05
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 40.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.25 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 105°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 40.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.25 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 105°C
0
18574 in stock
T77S1D3-12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 16.7mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 0.6 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 105°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 16.7mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 0.6 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 105°C
0
15413 in stock

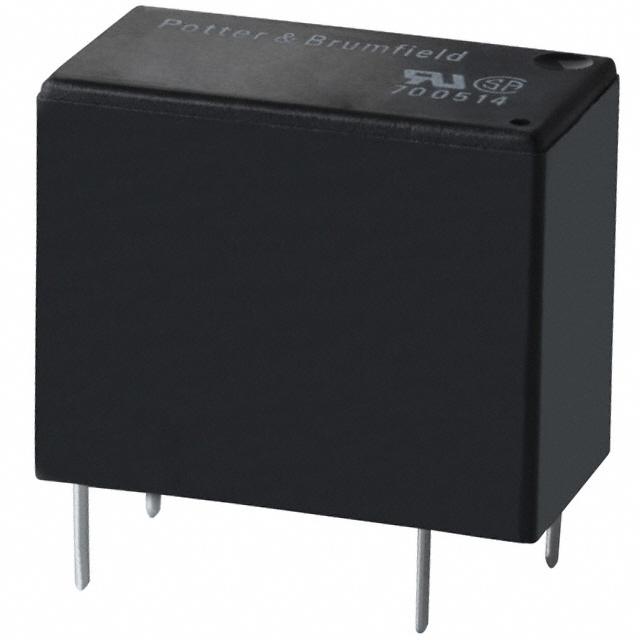

T77S1D3-24
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 8.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 105°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 8.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 105°C
0
306 in stock
T77V1D10-05
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 90.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.25 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Flux Protection
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 90.0mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 3.75 VDC
Turn Off Voltage (Min) : 0.25 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Flux Protection
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
0
100 in stock
T77V1D10-12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 0.6 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Flux Protection
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
Packaging : Bulk
Series : T77
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 37.5mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 10A
Switching Voltage : 250VAC, 30VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 0.6 VDC
Operate Time : 10ms
Release Time : 4ms
Features : Insulation - Class F, Sealed - Flux Protection
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -30°C ~ 85°C
0
6569 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
