- Relays
- Power Relays, Over 2 Amps
Part Number
Manufacturer
Description
Unit Price
In Stock

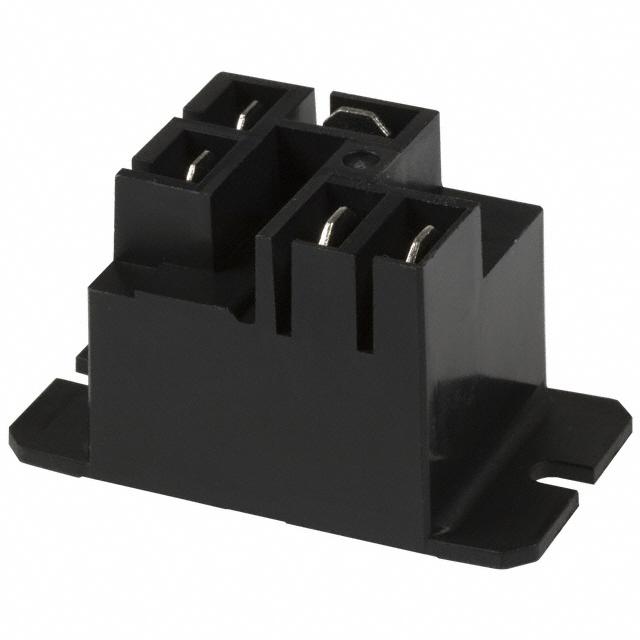

T9AP1D52-48-01
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 21.0mA
Coil Voltage : 48VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 36 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 21.0mA
Coil Voltage : 48VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 36 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
0
439 in stock
T9AP1D52-9
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 111mA
Coil Voltage : 9VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 6.75 VDC
Turn Off Voltage (Min) : 0.9 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 111mA
Coil Voltage : 9VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 6.75 VDC
Turn Off Voltage (Min) : 0.9 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
0
235 in stock
T9AP5D52-110
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 9.0mA
Coil Voltage : 110VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 82.5 VDC
Turn Off Voltage (Min) : 11 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 9.0mA
Coil Voltage : 110VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 82.5 VDC
Turn Off Voltage (Min) : 11 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
0
494 in stock
T9AP5D52-12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 83.0mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 83.0mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
0
3132 in stock
T9AP5D52-24
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 41.7mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 41.7mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
0
971 in stock
T9AP5D52-48
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 21.0mA
Coil Voltage : 48VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 36 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 21.0mA
Coil Voltage : 48VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 20A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 36 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.187"/0.250"
Operating Temperature : -55°C ~ 85°C
0
119 in stock
T9AS1D12-110
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 9.0mA
Coil Voltage : 110VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 82.5 VDC
Turn Off Voltage (Min) : 11 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 9.0mA
Coil Voltage : 110VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 82.5 VDC
Turn Off Voltage (Min) : 11 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
0
3029 in stock
T9AS1D12-12
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 83.0mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 83.0mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1.2 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
0
12611 in stock

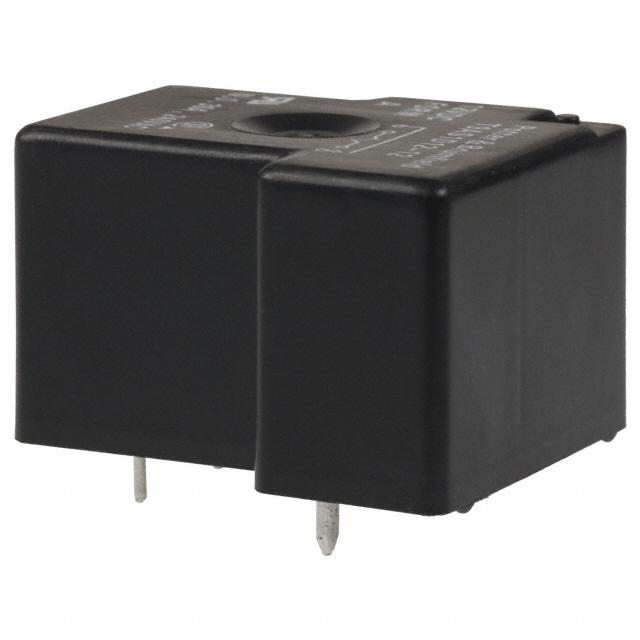

T9AS1D12-15
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 66.7mA
Coil Voltage : 15VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 11.25 VDC
Turn Off Voltage (Min) : 1.5 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 66.7mA
Coil Voltage : 15VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 11.25 VDC
Turn Off Voltage (Min) : 1.5 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
0
1197 in stock
T9AS1D12-18
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 55.6mA
Coil Voltage : 18VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 13.5 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 55.6mA
Coil Voltage : 18VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 13.5 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
0
1461 in stock
T9AS1D12-24
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 41.7mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 41.7mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
0
39382 in stock
T9AS1D12-48
Agastat Relays / TE Connectivity
Manufacturer : TE Connectivity Potter & Brumfield Relays
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 21.0mA
Coil Voltage : 48VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 36 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
Packaging : Bulk
Series : T9A
Part Status : Active
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 21.0mA
Coil Voltage : 48VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 30A
Switching Voltage : 277VAC - Max
Turn On Voltage (Max) : 36 VDC
Turn Off Voltage (Min) : 4.8 VDC
Operate Time : 15ms
Release Time : 15ms
Features : Insulation - Class F, Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -55°C ~ 85°C
0
2599 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
