- Sensors, Transducers
- Current Transducers
Part Number
Manufacturer
Description
Unit Price
In Stock
LF 1005-S/SP21
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Tray
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 150kHz
Linearity : ±0.1%
Accuracy : ±0.4%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 228mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
Packaging : Tray
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 150kHz
Linearity : ±0.1%
Accuracy : ±0.4%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 228mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
0
100 in stock

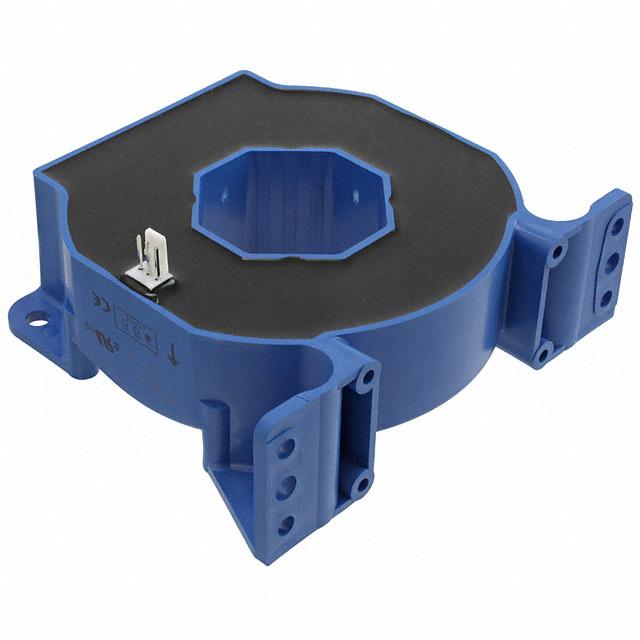

LF 1010-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.2mA/A
Frequency : 200kHz
Linearity : ±0.15%
Accuracy : ±0.2%
Voltage - Supply : 14.25 V ~ 25.2 V
Response Time : 0.5µs
Current - Supply (Max) : 49mA (Typ)
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.2mA/A
Frequency : 200kHz
Linearity : ±0.15%
Accuracy : ±0.2%
Voltage - Supply : 14.25 V ~ 25.2 V
Response Time : 0.5µs
Current - Supply (Max) : 49mA (Typ)
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
0
64 in stock

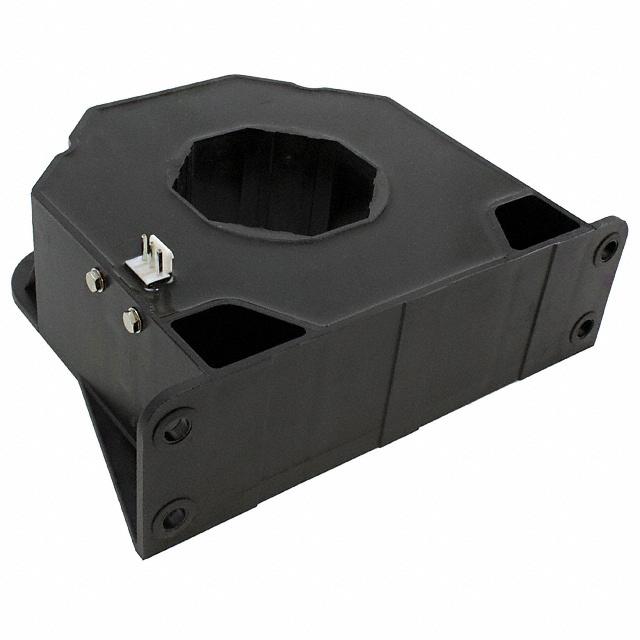

LF 2005-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 2000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.1%
Accuracy : ±0.3%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 433mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 2000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.1%
Accuracy : ±0.3%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 433mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
0
21 in stock

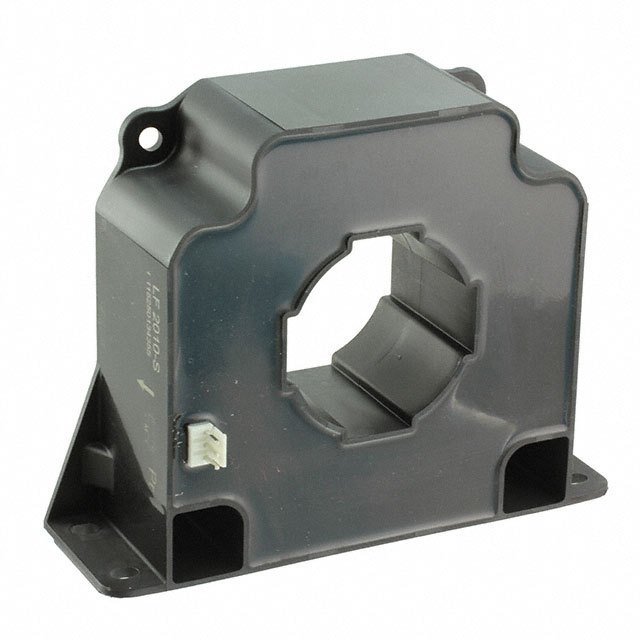

LF 2010-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 2000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.2mA/A
Frequency : 150kHz
Linearity : ±0.1%
Accuracy : ±0.2%
Voltage - Supply : 14.25 V ~ 25.2 V
Response Time : 0.5µs
Current - Supply (Max) : 48mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 2000A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.2mA/A
Frequency : 150kHz
Linearity : ±0.1%
Accuracy : ±0.2%
Voltage - Supply : 14.25 V ~ 25.2 V
Response Time : 0.5µs
Current - Supply (Max) : 48mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
0
16 in stock

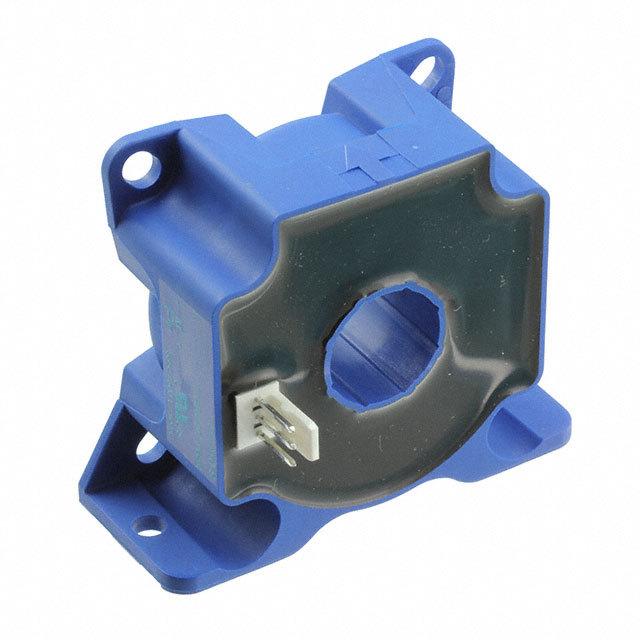

LF 210-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 200A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.5mA/A
Frequency : 100kHz
Linearity : ±0.05%
Accuracy : ±0.2%
Voltage - Supply : 11.4 V ~ 15.75 V
Response Time : 0.5µs
Current - Supply (Max) : 35mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 200A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.5mA/A
Frequency : 100kHz
Linearity : ±0.05%
Accuracy : ±0.2%
Voltage - Supply : 11.4 V ~ 15.75 V
Response Time : 0.5µs
Current - Supply (Max) : 35mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
0
320 in stock

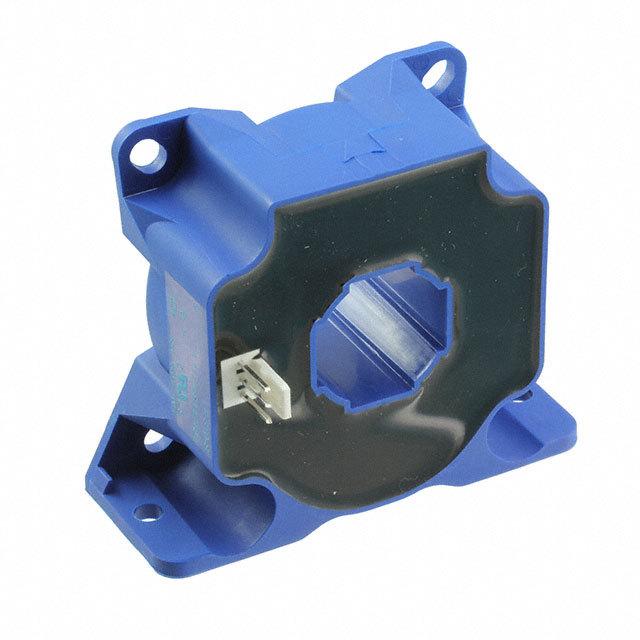

LF 310-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 300A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.5mA/A
Frequency : 100kHz
Linearity : ±0.05%
Accuracy : ±0.2%
Voltage - Supply : 11.4 V ~ 21 V
Response Time : 0.5µs
Current - Supply (Max) : 38mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 300A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.5mA/A
Frequency : 100kHz
Linearity : ±0.05%
Accuracy : ±0.2%
Voltage - Supply : 11.4 V ~ 21 V
Response Time : 0.5µs
Current - Supply (Max) : 38mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
0
101 in stock

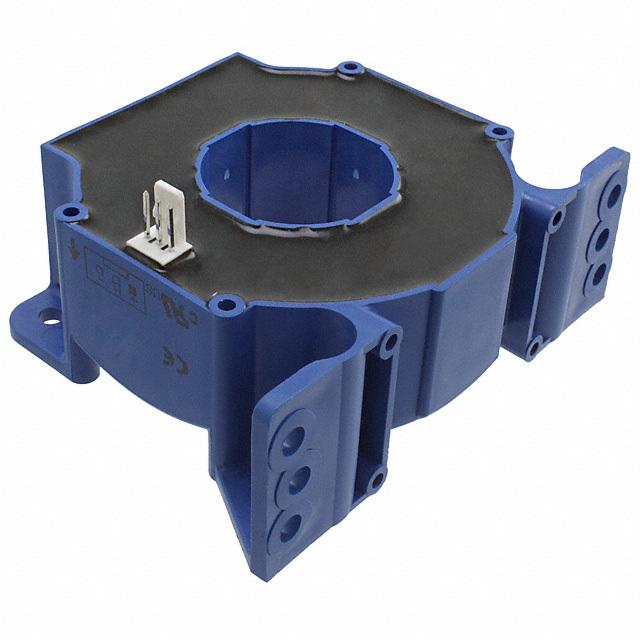

LF 505-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Tray
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 500A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.1%
Accuracy : ±0.6%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 124mA
Operating Temperature : -40°C ~ 70°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
Packaging : Tray
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 500A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±0.1%
Accuracy : ±0.6%
Voltage - Supply : ±15 V ~ 24 V
Response Time : 1µs
Current - Supply (Max) : 124mA
Operating Temperature : -40°C ~ 70°C
Polarization : Bidirectional
Mounting Type : Chassis Mount
Package / Case : Module
0
51 in stock
LF 510-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 500A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.2mA/A
Frequency : 200kHz
Linearity : ±0.1%
Accuracy : 0.5%
Voltage - Supply : 14.25 V ~ 25.2 V
Response Time : 0.5µs
Current - Supply (Max) : 48mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
Packaging : Bulk
Series : LF
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 500A
Number of Channels : 1
Output : Ratiometric, Current
Sensitivity : 0.2mA/A
Frequency : 200kHz
Linearity : ±0.1%
Accuracy : 0.5%
Voltage - Supply : 14.25 V ~ 25.2 V
Response Time : 0.5µs
Current - Supply (Max) : 48mA
Operating Temperature : -40°C ~ 85°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module, Single Pass Through
0
154 in stock

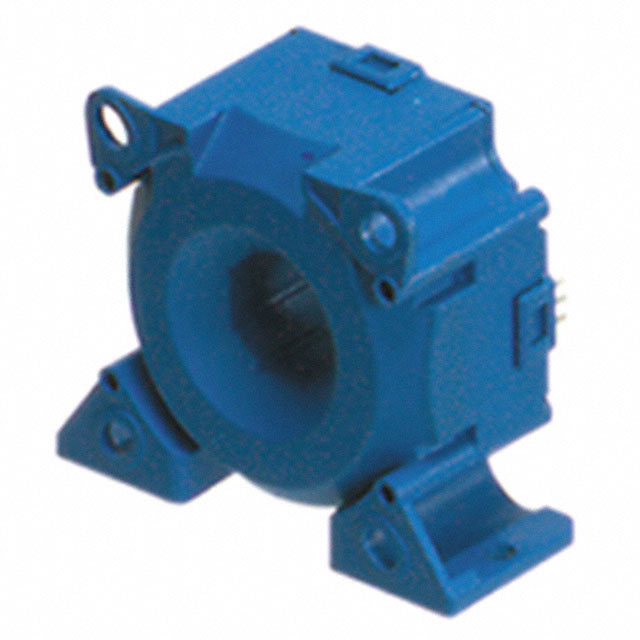

LF205-S
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : -
Series : -
Part Status : Active
For Measuring : -
Sensor Type : -
Current - Sensing : -
Number of Channels : -
Output : -
Sensitivity : -
Frequency : -
Linearity : -
Accuracy : -
Voltage - Supply : -
Response Time : -
Current - Supply (Max) : -
Operating Temperature : -
Polarization : -
Mounting Type : -
Package / Case : -
Packaging : -
Series : -
Part Status : Active
For Measuring : -
Sensor Type : -
Current - Sensing : -
Number of Channels : -
Output : -
Sensitivity : -
Frequency : -
Linearity : -
Accuracy : -
Voltage - Supply : -
Response Time : -
Current - Supply (Max) : -
Operating Temperature : -
Polarization : -
Mounting Type : -
Package / Case : -
0
100 in stock
LKSR 15-NP
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : -
Series : LKSR
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 41.67mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : ±1.25%
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 400ns
Current - Supply (Max) : 27.5mA
Operating Temperature : -40°C ~ 105°C (TA)
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
Packaging : -
Series : LKSR
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 41.67mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : ±1.25%
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 400ns
Current - Supply (Max) : 27.5mA
Operating Temperature : -40°C ~ 105°C (TA)
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
200 in stock
LKSR 15-NP KIT
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : -
Series : LKSR
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 41.67mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : ±1.25%
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 400ns
Current - Supply (Max) : 27.5mA
Operating Temperature : -40°C ~ 105°C (TA)
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
Packaging : -
Series : LKSR
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 41.67mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : ±1.25%
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 400ns
Current - Supply (Max) : 27.5mA
Operating Temperature : -40°C ~ 105°C (TA)
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
6 in stock
LKSR 25-NP
LEM USA, Inc.
Manufacturer : LEM USA Inc.
Packaging : -
Series : LKSR
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 25A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 25mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : ±1.25%
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 400ns
Current - Supply (Max) : 32.5mA
Operating Temperature : -40°C ~ 105°C (TA)
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
Packaging : -
Series : LKSR
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Closed Loop
Current - Sensing : 25A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 25mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : ±1.25%
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 400ns
Current - Supply (Max) : 32.5mA
Operating Temperature : -40°C ~ 105°C (TA)
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
200 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
