Part Number
Manufacturer
Description
Unit Price
In Stock

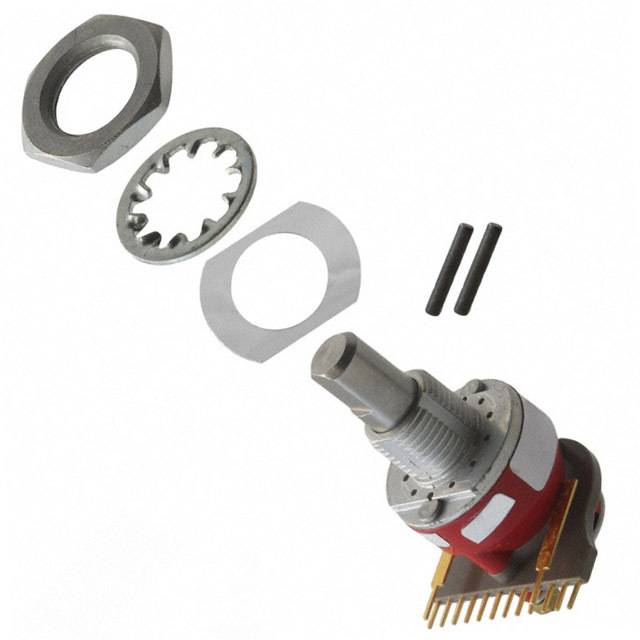

71BDF30-01-2-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 6
Index Stops : Adjustable
Number of Decks : 1
Number of Poles per Deck : 2
Circuit per Deck : DP6T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 19.33mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 6
Index Stops : Adjustable
Number of Decks : 1
Number of Poles per Deck : 2
Circuit per Deck : DP6T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 19.33mm
0
717 in stock

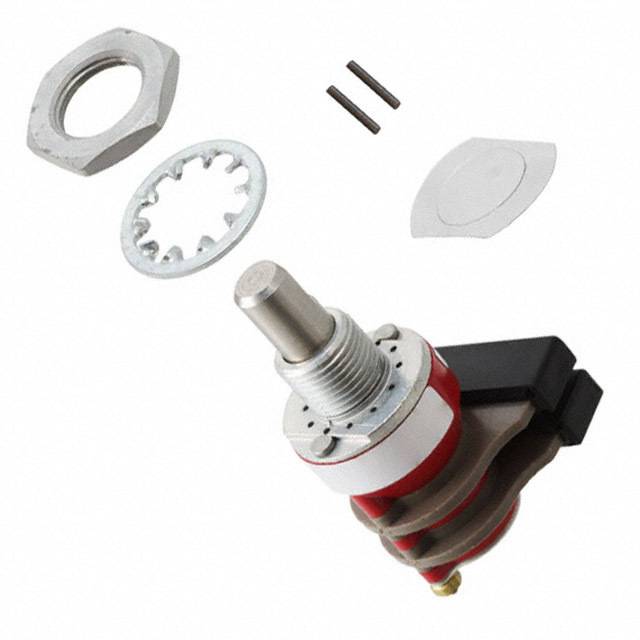

71BDF30-02-1-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 12
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 1
Circuit per Deck : SP12T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 12
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 1
Circuit per Deck : SP12T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
0
327 in stock

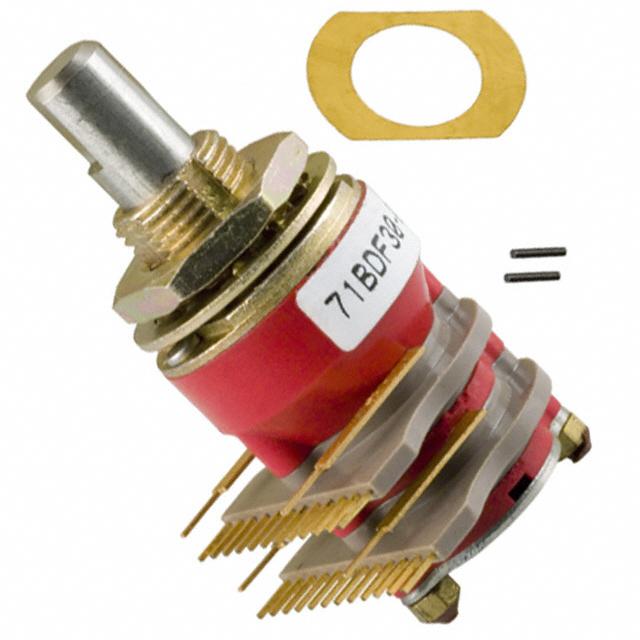

71BDF30-02-2-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 6
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 2
Circuit per Deck : DP6T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 6
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 2
Circuit per Deck : DP6T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
0
178 in stock
71BDF36-01-1-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 10
Index Stops : Adjustable
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP10T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 19.33mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 10
Index Stops : Adjustable
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP10T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 19.33mm
0
251 in stock

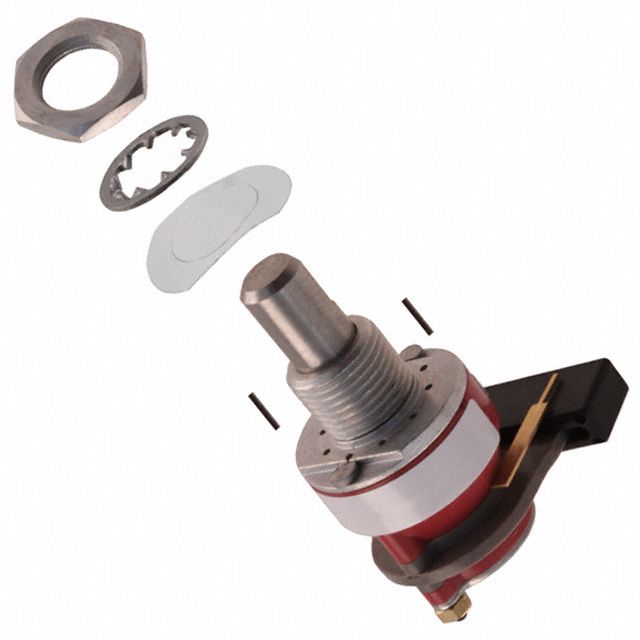

71BDF36-01-2-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 5
Index Stops : Adjustable
Number of Decks : 1
Number of Poles per Deck : 2
Circuit per Deck : DP5T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 19.33mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 5
Index Stops : Adjustable
Number of Decks : 1
Number of Poles per Deck : 2
Circuit per Deck : DP5T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 19.33mm
0
270 in stock

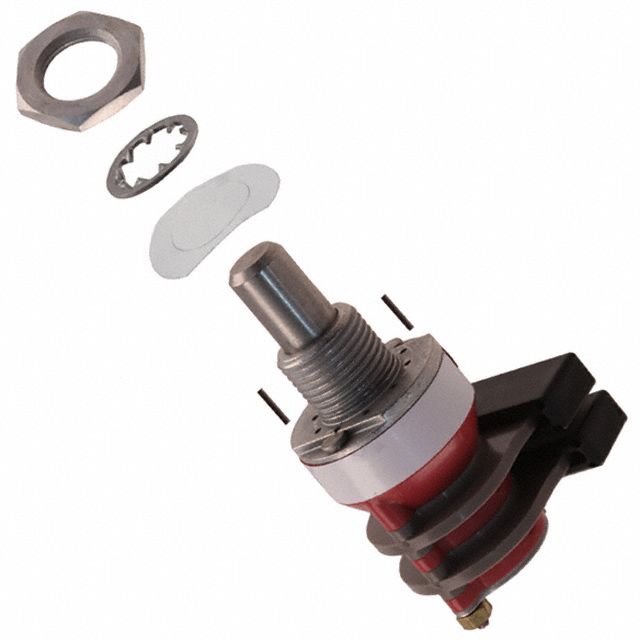

71BDF36-02-1-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 10
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 1
Circuit per Deck : SP10T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 10
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 1
Circuit per Deck : SP10T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
0
165 in stock

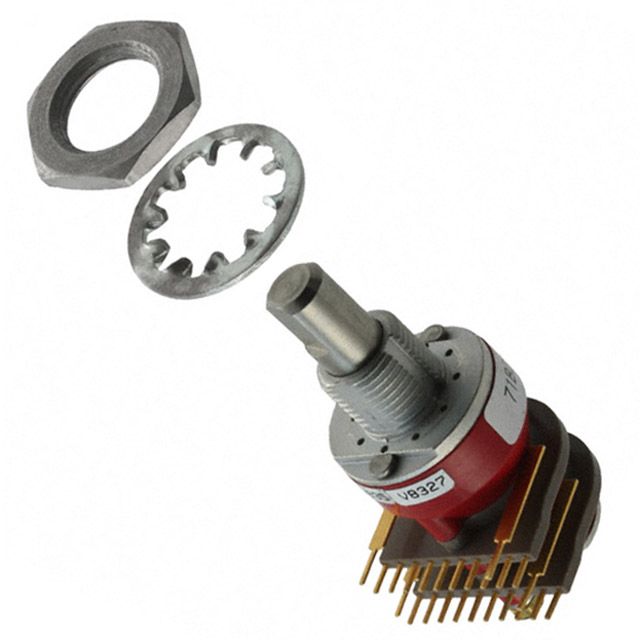

71BDF36-02-2-AJN
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 2 ~ 5
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 2
Circuit per Deck : DP5T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
Series : 71
Part Status : Active
Number of Positions : 2 ~ 5
Index Stops : Adjustable
Number of Decks : 2
Number of Poles per Deck : 2
Circuit per Deck : DP5T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 36°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
0
23 in stock

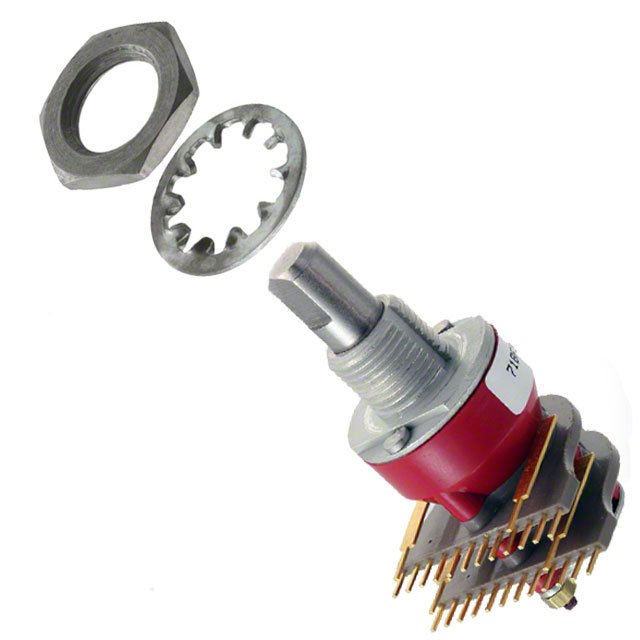

71BF30-02-2-06S
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 6
Index Stops : Fixed
Number of Decks : 2
Number of Poles per Deck : 2
Circuit per Deck : DP6T
Contact Timing : Shorting (MBB)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
Series : 71
Part Status : Active
Number of Positions : 6
Index Stops : Fixed
Number of Decks : 2
Number of Poles per Deck : 2
Circuit per Deck : DP6T
Contact Timing : Shorting (MBB)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : -
Depth Behind Panel : 24.87mm
0
21 in stock
71BSF30-04-1-12N-C
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 71
Part Status : Active
Number of Positions : 12
Index Stops : Continuous
Number of Decks : 4
Number of Poles per Deck : 1
Circuit per Deck : SP12T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : Shaft and Panel Sealed
Depth Behind Panel : 35.94mm
Series : 71
Part Status : Active
Number of Positions : 12
Index Stops : Continuous
Number of Decks : 4
Number of Poles per Deck : 1
Circuit per Deck : SP12T
Contact Timing : Non-Shorting (BBM)
Current Rating : 250mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Flatted (6.35mm Dia)
Actuator Length : 9.53mm
Angle of Throw : 30°
Contact Material : Silver Alloy
Contact Finish : -
Mounting Type : Panel Mount, Through Hole, Right Angle
Termination Style : PC Pin
Features : Shaft and Panel Sealed
Depth Behind Panel : 35.94mm
0
48 in stock
75AP36-01-1-04N
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 75
Part Status : Active
Number of Positions : 4
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP4T
Contact Timing : Non-Shorting (BBM)
Current Rating : 200mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Screwdriver Slot
Actuator Length : Flush
Angle of Throw : 36°
Contact Material : Silver Cadmium Oxide (AgCdO)
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : -
Depth Behind Panel : 12.42mm
Series : 75
Part Status : Active
Number of Positions : 4
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP4T
Contact Timing : Non-Shorting (BBM)
Current Rating : 200mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Screwdriver Slot
Actuator Length : Flush
Angle of Throw : 36°
Contact Material : Silver Cadmium Oxide (AgCdO)
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : -
Depth Behind Panel : 12.42mm
0
31 in stock
75AP36-01-1-06N
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 75
Part Status : Active
Number of Positions : 6
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP6T
Contact Timing : Non-Shorting (BBM)
Current Rating : 200mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Screwdriver Slot
Actuator Length : Flush
Angle of Throw : 36°
Contact Material : Silver Cadmium Oxide (AgCdO)
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : -
Depth Behind Panel : 12.42mm
Series : 75
Part Status : Active
Number of Positions : 6
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP6T
Contact Timing : Non-Shorting (BBM)
Current Rating : 200mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Screwdriver Slot
Actuator Length : Flush
Angle of Throw : 36°
Contact Material : Silver Cadmium Oxide (AgCdO)
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : -
Depth Behind Panel : 12.42mm
0
50 in stock
75AP36-01-1-08N
Grayhill, Inc.
Manufacturer : Grayhill Inc.
Series : 75
Part Status : Active
Number of Positions : 8
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP8T
Contact Timing : Non-Shorting (BBM)
Current Rating : 200mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Screwdriver Slot
Actuator Length : Flush
Angle of Throw : 36°
Contact Material : Silver Cadmium Oxide (AgCdO)
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : -
Depth Behind Panel : 12.42mm
Series : 75
Part Status : Active
Number of Positions : 8
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP8T
Contact Timing : Non-Shorting (BBM)
Current Rating : 200mA (AC/DC)
Voltage Rating - AC : 115V
Voltage Rating - DC : 30V
Actuator Type : Screwdriver Slot
Actuator Length : Flush
Angle of Throw : 36°
Contact Material : Silver Cadmium Oxide (AgCdO)
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : -
Depth Behind Panel : 12.42mm
0
85 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
