Part Number
Manufacturer
Description
Unit Price
In Stock

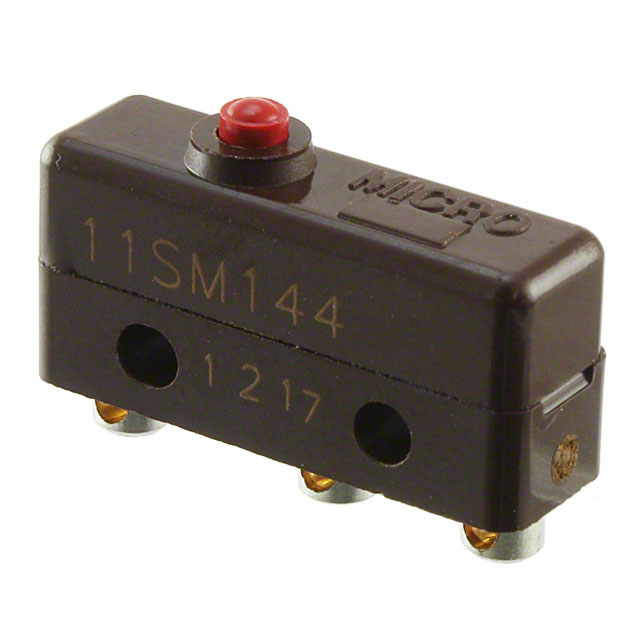

11SM144
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Operating Force : 85gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Operating Force : 85gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
1 in stock

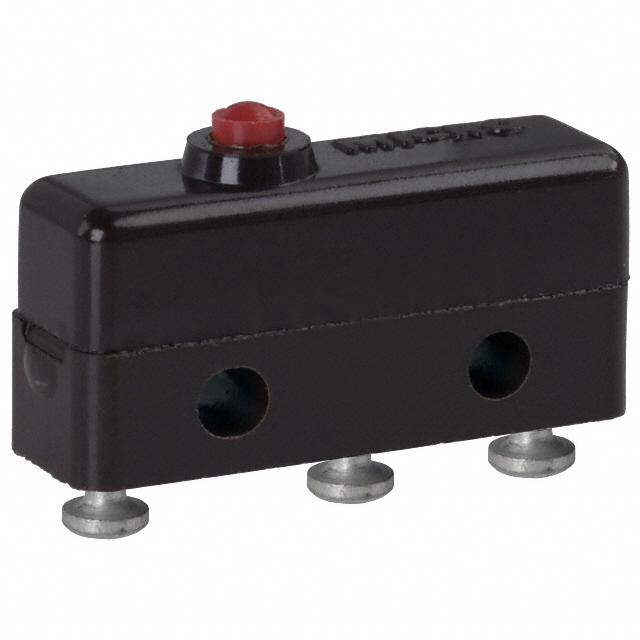

11SM1-T
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
193 in stock

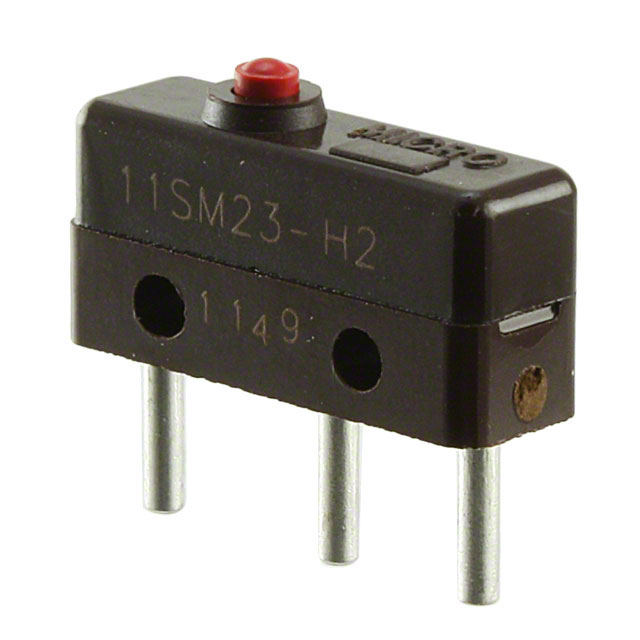

11SM23-H2
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 1A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Through Hole
Termination Style : PC Pin
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 1A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Through Hole
Termination Style : PC Pin
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
96 in stock

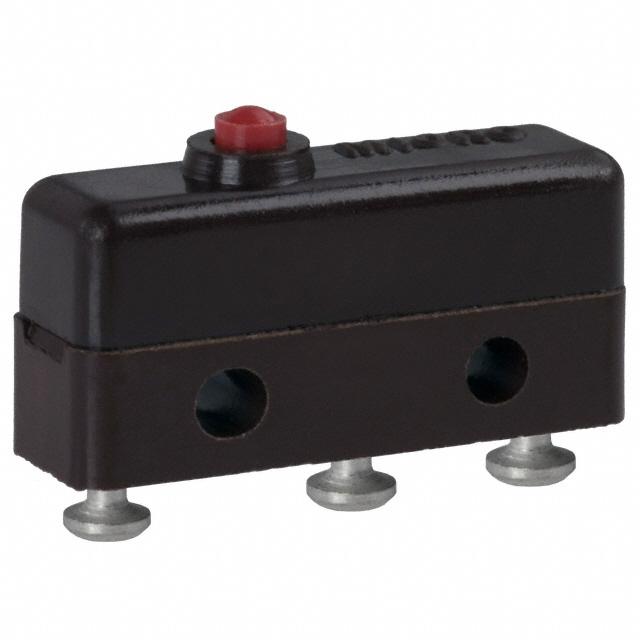

11SM23-T
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 1A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 1A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
83 in stock

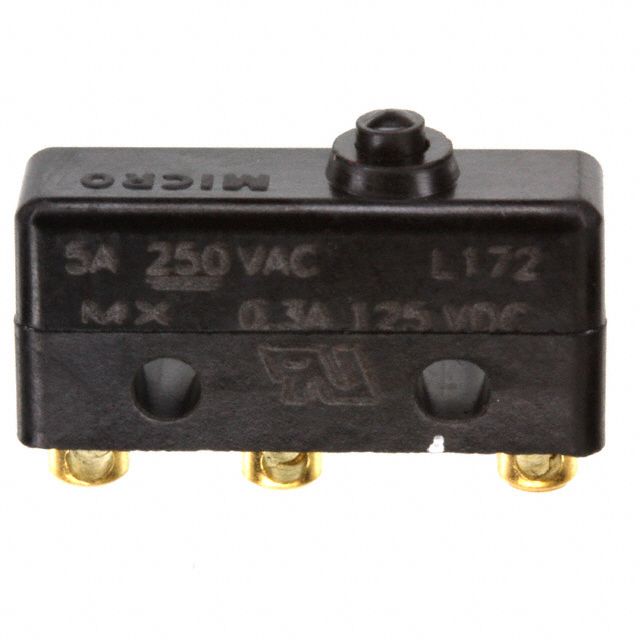

11SM244
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC), 300mA (DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 125V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC), 300mA (DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 125V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
35 in stock

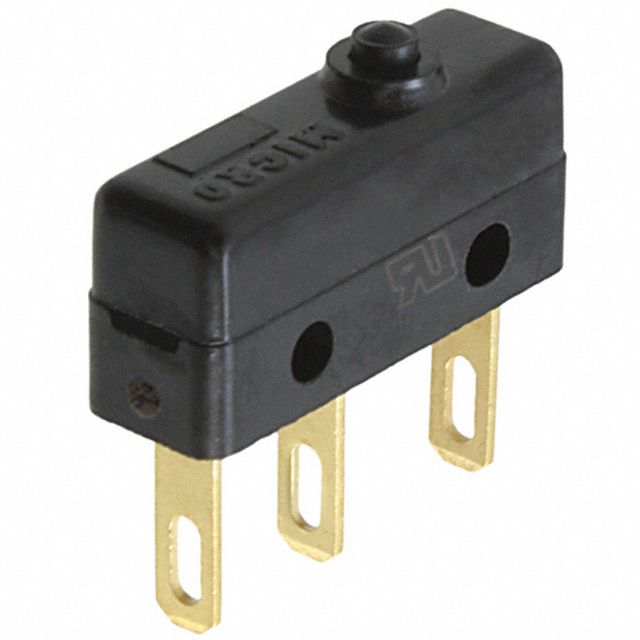

11SM244-H4
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC), 300mA (DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 125V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC), 300mA (DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 125V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
300 in stock

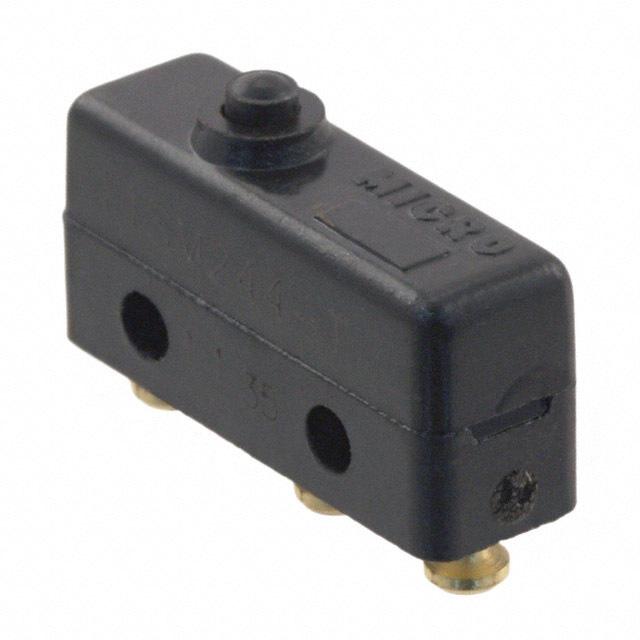

11SM244-T
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC), 300mA (DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 125V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC), 300mA (DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 125V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
70 in stock

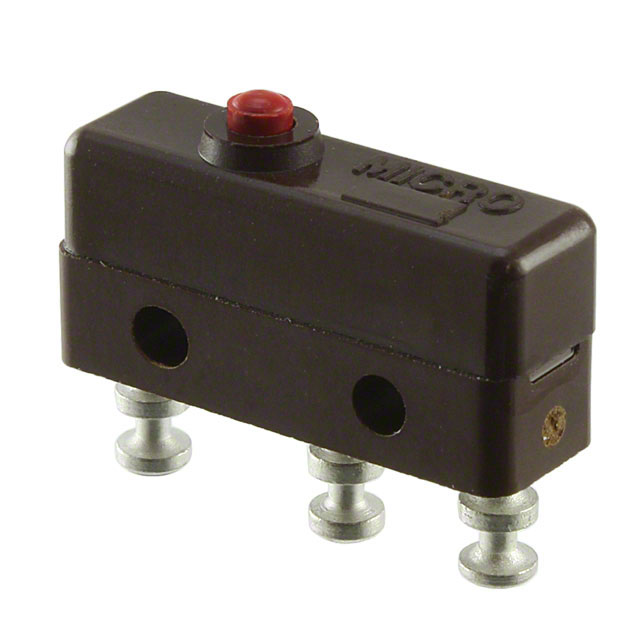

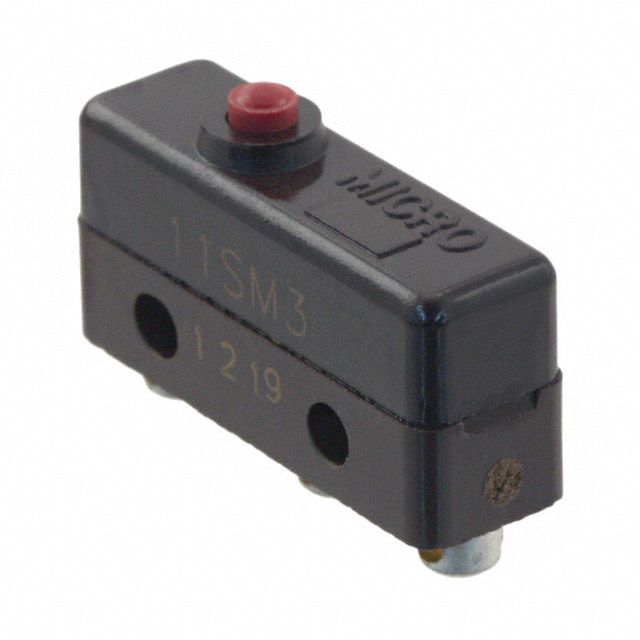

11SM3
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
218 in stock

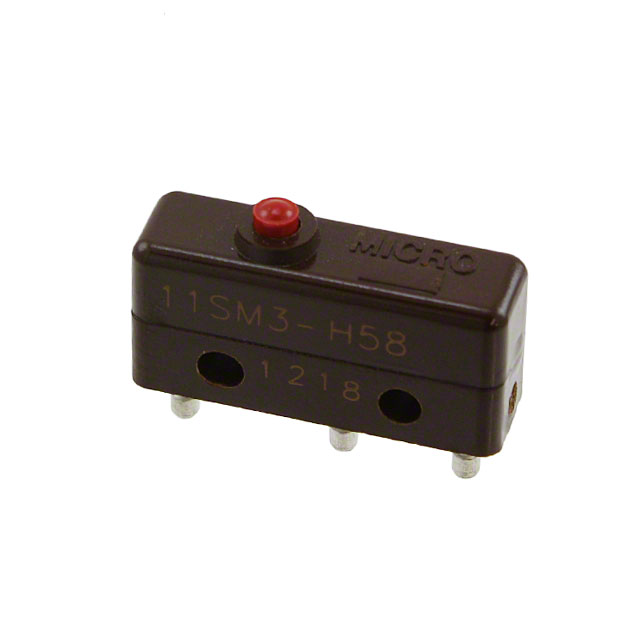

11SM3-H58
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.058" (Round)
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Quick Connect - 0.058" (Round)
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
706 in stock

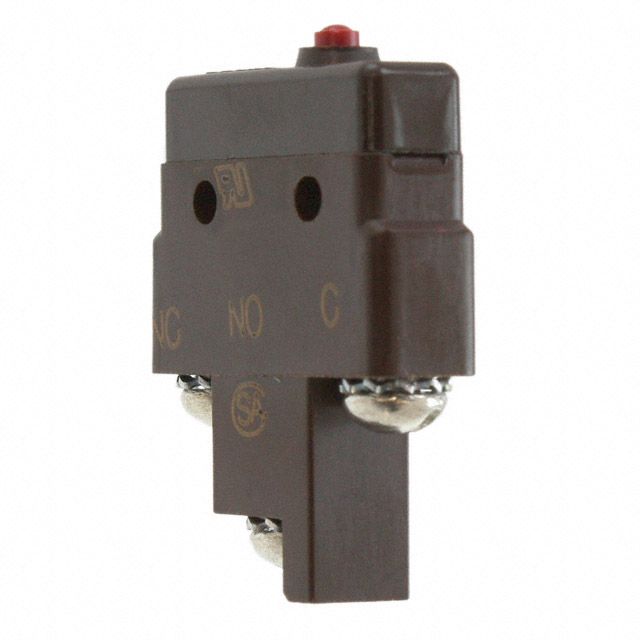

11SM3-S
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
78 in stock
11SM3-T
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
133 in stock
11SM3-T2
Honeywell Sensing and Productivity Solutions
Manufacturer : Honeywell Sensing and Productivity Solutions
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
Packaging : Bulk
Series : SM
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 5A (AC/DC)
Voltage Rating - AC : 250V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Turret
Ingress Protection : -
Features : -
Operating Force : 141gf
Release Force : 28gf
Pretravel : 0.020" (0.5mm)
Differential Travel : 0.004" (0.1mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -55°C ~ 125°C
0
8 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
