Welcome to Weijie Semiconductor
- Switches
- Snap Action, Limit Switches
Part Number
Manufacturer
Description
Unit Price
In Stock
Z-15ED-B
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : *
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.062" (1.6mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : *
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.062" (1.6mm)
Operating Temperature : -25°C ~ 80°C
0
12 in stock
Z-15EQ21-B
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Cross Roller Plunger
Mounting Type : Panel Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.141" (3.6mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Cross Roller Plunger
Mounting Type : Panel Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.141" (3.6mm)
Operating Temperature : -25°C ~ 80°C
0
5 in stock
Z-15EQ22-B
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Roller Plunger
Mounting Type : Panel Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.141" (3.6mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Roller Plunger
Mounting Type : Panel Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.141" (3.6mm)
Operating Temperature : -25°C ~ 80°C
0
4 in stock
Z-15EQ22R-1
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : -
Series : Z
Part Status : Active
Circuit : -
Switch Function : -
Current Rating : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Actuator Type : -
Mounting Type : -
Termination Style : -
Ingress Protection : -
Features : -
Operating Force : -
Release Force : -
Pretravel : -
Differential Travel : -
Overtravel : -
Operating Temperature : -
Packaging : -
Series : Z
Part Status : Active
Circuit : -
Switch Function : -
Current Rating : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Actuator Type : -
Mounting Type : -
Termination Style : -
Ingress Protection : -
Features : -
Operating Force : -
Release Force : -
Pretravel : -
Differential Travel : -
Overtravel : -
Operating Temperature : -
0
10 in stock
Z-15EQ-B
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Overtravel Plunger
Mounting Type : Panel Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.217" (5.5mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Overtravel Plunger
Mounting Type : Panel Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 625 ~ 800gf
Release Force : 114gf
Pretravel : 0.030" (0.8mm)
Differential Travel : 0.005" (0.13mm)
Overtravel : 0.217" (5.5mm)
Operating Temperature : -25°C ~ 80°C
0
5 in stock

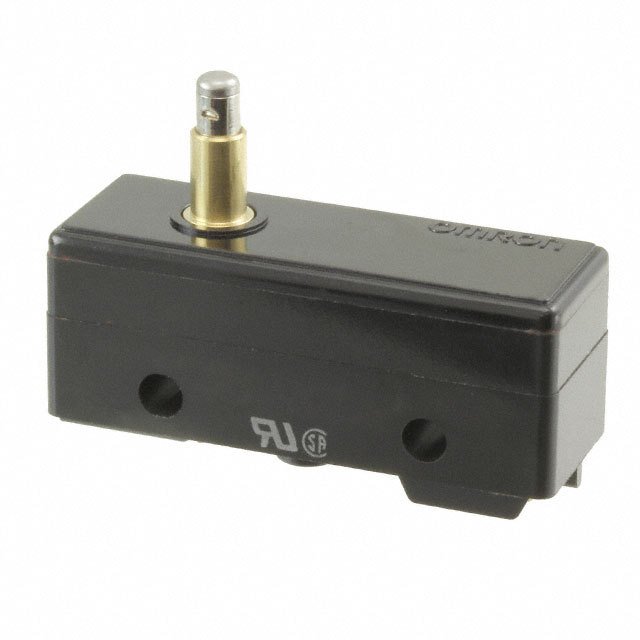

Z-15ESR
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP00
Features : Reset Plunger on Bottom
Operating Force : 270gf
Release Force : 285gf
Pretravel : 0.015" (0.4mm)
Differential Travel : -
Overtravel : 0.062" (1.6mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP00
Features : Reset Plunger on Bottom
Operating Force : 270gf
Release Force : 285gf
Pretravel : 0.015" (0.4mm)
Differential Travel : -
Overtravel : 0.062" (1.6mm)
Operating Temperature : -25°C ~ 80°C
0
8 in stock
Z-15EW22-B
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Lever, Roller
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 198gf
Release Force : 42gf
Pretravel : -
Differential Travel : 0.050" (1.3mm)
Overtravel : 0.094" (2.4mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Lever, Roller
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : IP00
Features : -
Operating Force : 198gf
Release Force : 42gf
Pretravel : -
Differential Travel : 0.050" (1.3mm)
Overtravel : 0.094" (2.4mm)
Operating Temperature : -25°C ~ 80°C
0
3 in stock
Z-15EW565
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : -
Series : Z
Part Status : Active
Circuit : -
Switch Function : -
Current Rating : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Actuator Type : -
Mounting Type : -
Termination Style : -
Ingress Protection : -
Features : -
Operating Force : -
Release Force : -
Pretravel : -
Differential Travel : -
Overtravel : -
Operating Temperature : -
Packaging : -
Series : Z
Part Status : Active
Circuit : -
Switch Function : -
Current Rating : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Actuator Type : -
Mounting Type : -
Termination Style : -
Ingress Protection : -
Features : -
Operating Force : -
Release Force : -
Pretravel : -
Differential Travel : -
Overtravel : -
Operating Temperature : -
0
10 in stock
Z-15EWR
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Lever, Straight
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP00
Features : Reset Plunger on Bottom
Operating Force : 55gf
Release Force : 300gf
Pretravel : -
Differential Travel : -
Overtravel : 0.219" (5.6mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-On
Current Rating : 15A (AC/DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Lever, Straight
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP00
Features : Reset Plunger on Bottom
Operating Force : 55gf
Release Force : 300gf
Pretravel : -
Differential Travel : -
Overtravel : 0.219" (5.6mm)
Operating Temperature : -25°C ~ 80°C
0
5 in stock
Z-15G
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC), 6A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP00
Features : -
Operating Force : 250 ~ 350gf
Release Force : 114gf
Pretravel : 0.015" (0.4mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -25°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC), 6A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP00
Features : -
Operating Force : 250 ~ 350gf
Release Force : 114gf
Pretravel : 0.015" (0.4mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -25°C ~ 80°C
0
5 in stock

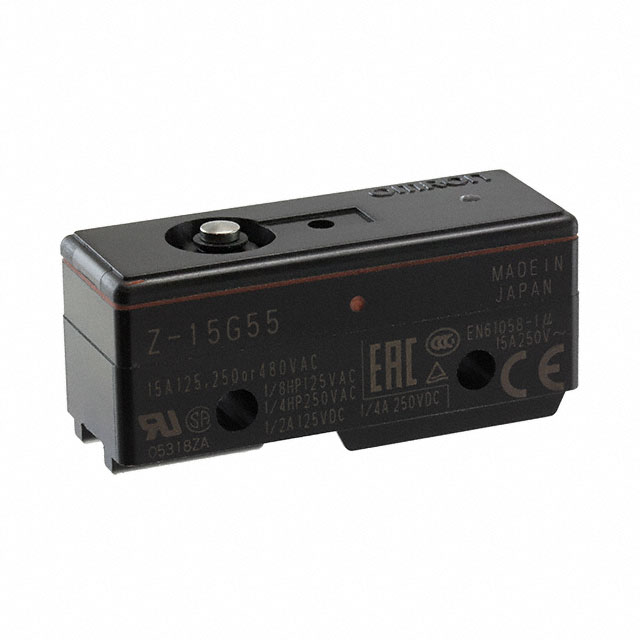

Z-15G55
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC), 6A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP62
Features : -
Operating Force : 430gf
Release Force : 114gf
Pretravel : 0.087" (2.2mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -15°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC), 6A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Ingress Protection : IP62
Features : -
Operating Force : 430gf
Release Force : 114gf
Pretravel : 0.087" (2.2mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -15°C ~ 80°C
0
10 in stock
Z-15G55-B
Omron Automation & Safety
Manufacturer : Omron Automation and Safety
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC), 6A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : IP62
Features : -
Operating Force : 430gf
Release Force : 114gf
Pretravel : 0.087" (2.2mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -15°C ~ 80°C
Packaging : Bulk
Series : Z
Part Status : Active
Circuit : SPDT
Switch Function : On-Mom
Current Rating : 15A (AC), 6A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Round (Pin Plunger)
Mounting Type : Chassis Mount
Termination Style : Screw Terminal
Ingress Protection : IP62
Features : -
Operating Force : 430gf
Release Force : 114gf
Pretravel : 0.087" (2.2mm)
Differential Travel : 0.002" (0.05mm)
Overtravel : 0.005" (0.13mm)
Operating Temperature : -15°C ~ 80°C
0
3 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
