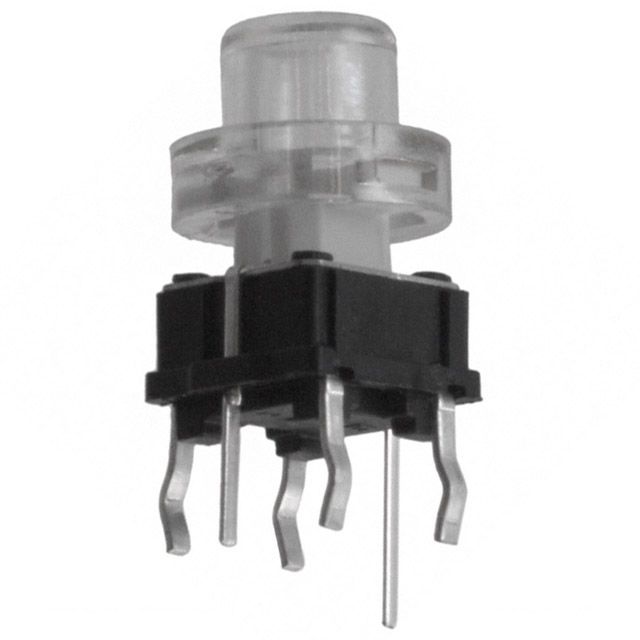

TL1265YQSCLR
E-Switch
Manufacturer : E-Switch
Packaging : Bulk
Series : TL1265
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole
Actuator Height off PCB, Vertical : 12.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : PC Pin
Outline : 7.00mm x 6.80mm
Illumination : Illuminated
Illumination Type, Color : LED, Yellow
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : Clear Cap
Operating Temperature : -20°C ~ 70°C
Packaging : Bulk
Series : TL1265
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole
Actuator Height off PCB, Vertical : 12.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : PC Pin
Outline : 7.00mm x 6.80mm
Illumination : Illuminated
Illumination Type, Color : LED, Yellow
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : Clear Cap
Operating Temperature : -20°C ~ 70°C
0
929 in stock
TL1270F160BLQAT
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL1270
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 5.62mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 6.20mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Blue
Illumination Voltage (Nominal) : 3.6 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL1270
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 5.62mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 6.20mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Blue
Illumination Voltage (Nominal) : 3.6 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
1633 in stock
TL1270F160GYQBT
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL1270
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 6.62mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 6.20mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Green/Yellow
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL1270
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 6.62mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 6.20mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Green/Yellow
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
549 in stock

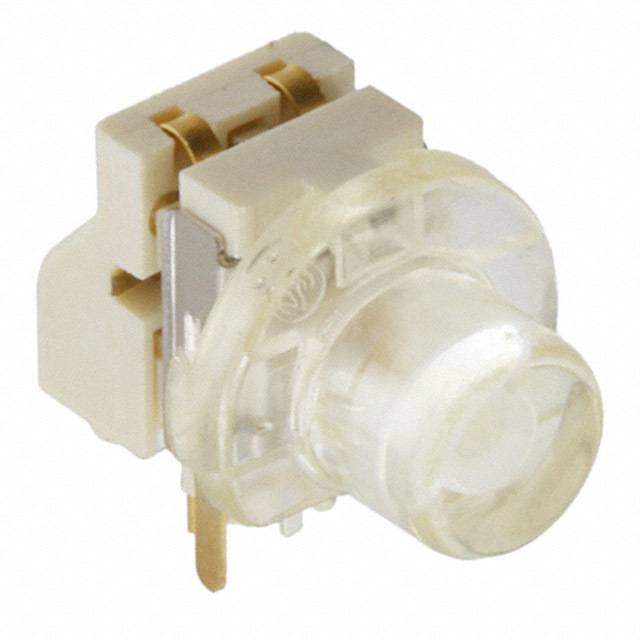

TL1270F160REQAT
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL1270
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 5.62mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 6.20mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Red
Illumination Voltage (Nominal) : 3.6 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL1270
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Round Button
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 5.62mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 6.20mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Red
Illumination Voltage (Nominal) : 3.6 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
81 in stock

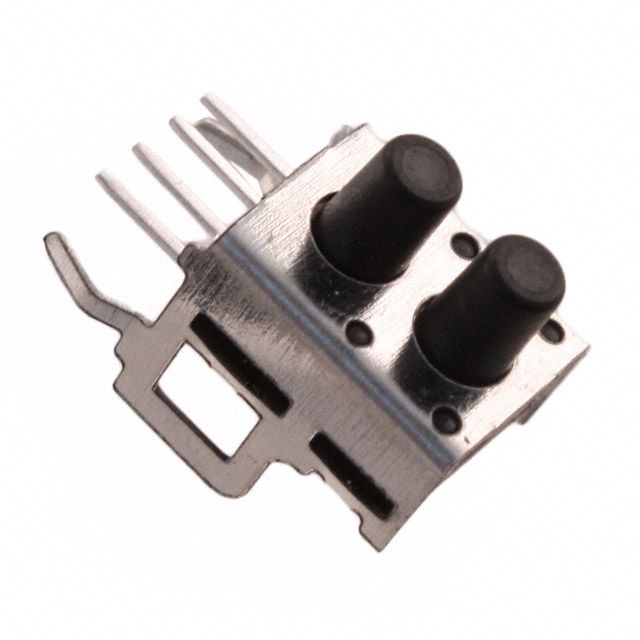

TL2243
E-Switch
Manufacturer : E-Switch
Packaging : Bulk
Series : TL2243
Part Status : Active
Circuit : SPST x 2
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Dual
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 6.80mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 9.66mm x 7.30mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 180gf
Ingress Protection : -
Features : Tactile Feedback
Operating Temperature : -20°C ~ 70°C
Packaging : Bulk
Series : TL2243
Part Status : Active
Circuit : SPST x 2
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Dual
Mounting Type : Through Hole, Right Angle
Actuator Height off PCB, Vertical : -
Actuator Length, Right Angle : 6.80mm
Actuator Orientation : Side Actuated
Termination Style : PC Pin
Outline : 9.66mm x 7.30mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 180gf
Ingress Protection : -
Features : Tactile Feedback
Operating Temperature : -20°C ~ 70°C
0
9584 in stock

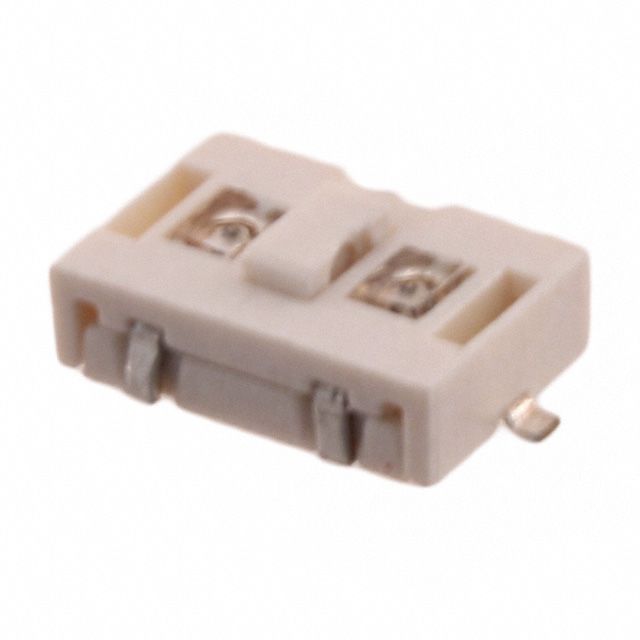

TL3200AF160GRQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3200
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Rectangular Button
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.50mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : Gull Wing
Outline : 6.80mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Green/Red
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -25°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3200
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Rectangular Button
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.50mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : Gull Wing
Outline : 6.80mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Green/Red
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -25°C ~ 85°C
0
3746 in stock
TL3200AF160RRQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3200
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Rectangular Button
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.50mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : Gull Wing
Outline : 6.80mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Red/Red
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -25°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3200
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Rectangular Button
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.50mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : Gull Wing
Outline : 6.80mm x 4.50mm
Illumination : Illuminated
Illumination Type, Color : LED, Red/Red
Illumination Voltage (Nominal) : 2.3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -25°C ~ 85°C
0
3033 in stock

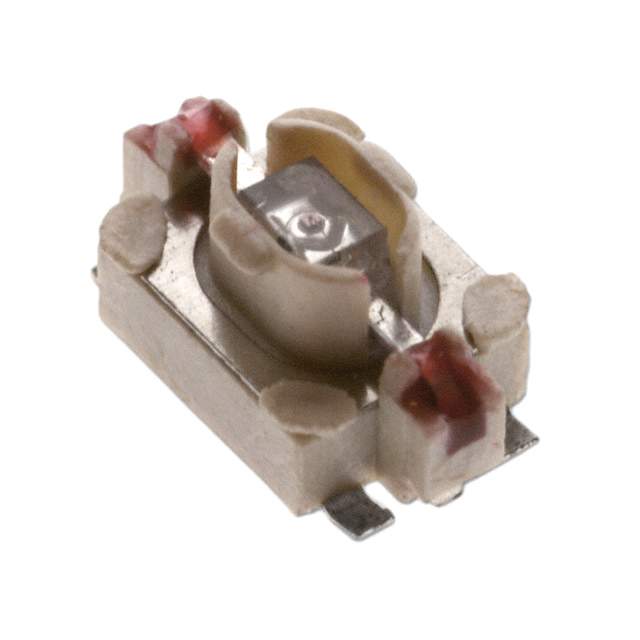

TL3210AF160RQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3210
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 3.12mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : Gull Wing
Outline : 5.60mm x 3.40mm
Illumination : Illuminated
Illumination Type, Color : LED, Red
Illumination Voltage (Nominal) : 1.95 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -20°C ~ 70°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3210
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 3.12mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : Gull Wing
Outline : 5.60mm x 3.40mm
Illumination : Illuminated
Illumination Type, Color : LED, Red
Illumination Voltage (Nominal) : 1.95 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -20°C ~ 70°C
0
2552 in stock

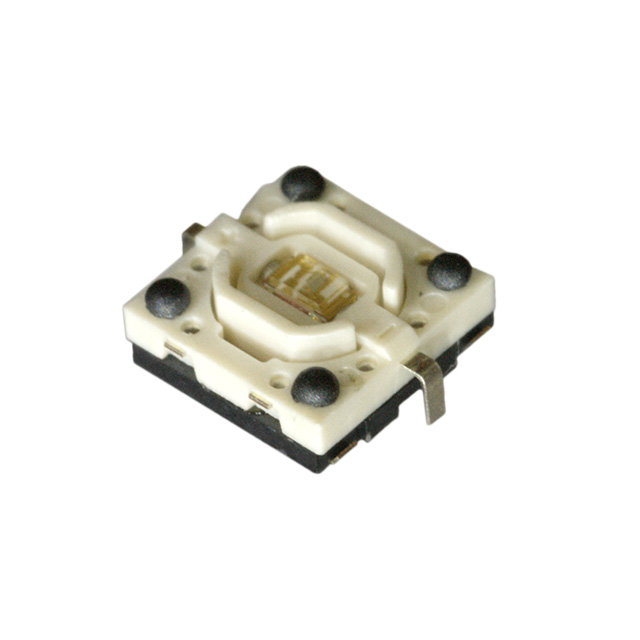

TL3215AF160BQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Blue
Illumination Voltage (Nominal) : 3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Blue
Illumination Voltage (Nominal) : 3 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
2490 in stock
TL3215AF160GQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Green
Illumination Voltage (Nominal) : 2.05 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Green
Illumination Voltage (Nominal) : 2.05 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
1197 in stock
TL3215AF160RQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Red
Illumination Voltage (Nominal) : 1.9 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Red
Illumination Voltage (Nominal) : 1.9 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
2983 in stock
TL3215AF160YQ
E-Switch
Manufacturer : E-Switch
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Yellow
Illumination Voltage (Nominal) : 2.05 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TL3215
Part Status : Active
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.05A @ 12VDC
Actuator Type : Plunger for Cap
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.00mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 4.90mm
Illumination : Illuminated
Illumination Type, Color : LED, Yellow
Illumination Voltage (Nominal) : 2.05 VDC
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -40°C ~ 85°C
0
1610 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
