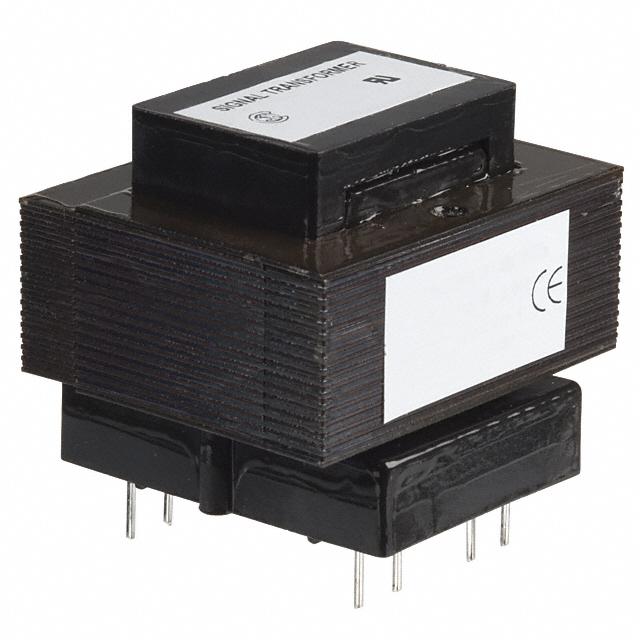

14A-5.0R-20
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
206 in stock
14A-5.0R-24
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
174 in stock
14A-5.0R-28
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
47 in stock
14A-5.0R-36
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 280mA, Series 140mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 280mA, Series 140mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 34.90mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
491 in stock
14A-56-10
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 11.2A, Series 5.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 11.2A, Series 5.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
0
19 in stock
14A-56-10B6
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 11.2A, Series 5.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 11.2A, Series 5.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
0
100 in stock
14A-56-12B12
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 8.8A, Series 4.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 8.8A, Series 4.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
0
100 in stock
14A-56-1525A
Bel
Manufacturer : Stewart Connector
Series : *
Part Status : Obsolete
Type : -
Voltage - Primary : -
Voltage - Secondary (Full Load) : -
Current - Output (Max) : -
Primary Winding(s) : -
Secondary Winding(s) : -
Center Tap : -
Power - Max : -
Mounting Type : -
Termination Style : -
Size / Dimension : -
Height - Seated (Max) : -
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
Series : *
Part Status : Obsolete
Type : -
Voltage - Primary : -
Voltage - Secondary (Full Load) : -
Current - Output (Max) : -
Primary Winding(s) : -
Secondary Winding(s) : -
Center Tap : -
Power - Max : -
Mounting Type : -
Termination Style : -
Size / Dimension : -
Height - Seated (Max) : -
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
0
100 in stock
14A-56-16
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 7A, Series 3.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 7A, Series 3.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
0
48 in stock
14A-56-16B18
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 7A, Series 3.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 7A, Series 3.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
0
100 in stock

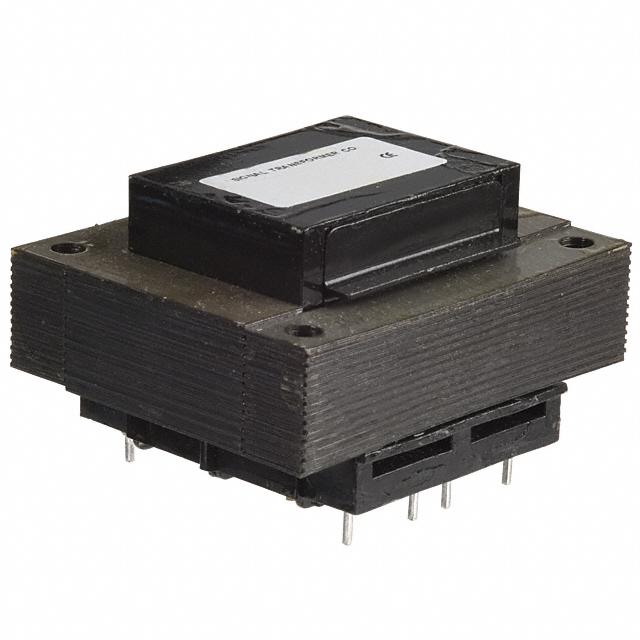

14A-56-20
Bel
Manufacturer : Signal Transformer
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
Series : One-4-All™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.30mm L x 36.50mm W
Height - Seated (Max) : 28.60mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
0
29 in stock
14A-56-20B24
Pulse Electronics Corporation
Manufacturer : Pulse Electronics Power
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
Series : International PC Plug-In
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : -
Weight : 1.7 lbs (771.1g)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
