- Transformers
- Power Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
1182Q12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 110.49mm Dia
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
5 in stock
1182Q240
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 6.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 187.96mm Dia
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : -
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 6.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 187.96mm Dia
Height - Seated (Max) : -
Voltage - Isolation : 4000Vrms
Weight : -
0
100 in stock
1182Q240P
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 6.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 187.96mm Dia
Height - Seated (Max) : 82.55mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : 240V
Current - Output (Max) : 6.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 187.96mm Dia
Height - Seated (Max) : 82.55mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
2 in stock
1182Q6
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 80 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 88.90mm Dia
Height - Seated (Max) : 38.10mm
Voltage - Isolation : 4000Vrms
Weight : 2.1 lbs (952.5g)
0
9 in stock
1182Q60
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 12.5A, Series 6.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 12.5A, Series 6.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
0
3 in stock
1182Q9
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 13.34A, Series 6.67A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 120 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm Dia
Height - Seated (Max) : 41.40mm
Voltage - Isolation : 4000Vrms
Weight : 3 lbs (1.4kg)
0
10 in stock
1182R110
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 6.82A, Series 3.41A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 6.82A, Series 3.41A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 152.40mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 13 lbs (5.9kg)
0
4 in stock
1182R117
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 8.6A, Series 4.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 117V, Series 234V
Current - Output (Max) : Parallel 8.6A, Series 4.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
3 in stock
1182R30
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 16.66A, Series 8.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 30V, Series 60V
Current - Output (Max) : Parallel 16.66A, Series 8.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 139.70mm Dia
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 4000Vrms
Weight : 9 lbs (4.1kg)
0
4 in stock
1182R60
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 16.6A, Series 8.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 16.6A, Series 8.3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
3 in stock

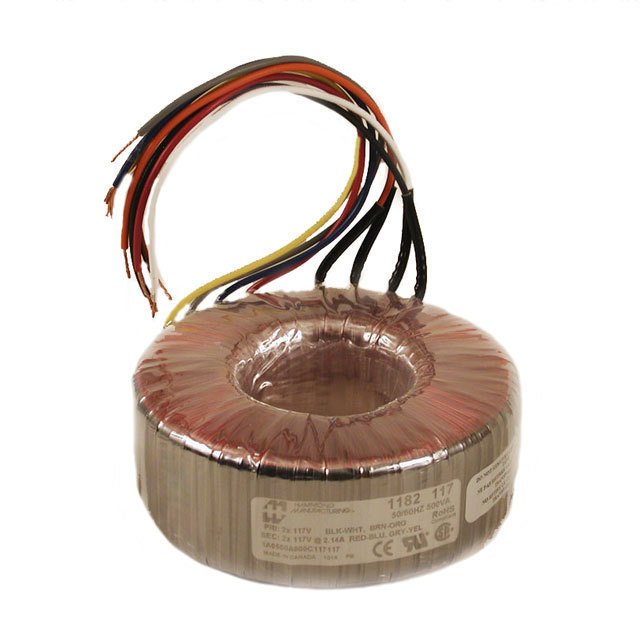

1182S110
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 9A, Series 4.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 110V, Series 220V
Current - Output (Max) : Parallel 9A, Series 4.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 158.75mm Dia
Height - Seated (Max) : 73.15mm
Voltage - Isolation : 4000Vrms
Weight : 17 lbs (7.7kg)
0
3 in stock
1182S12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 18.74A, Series 9.37A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 225 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 114.30mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 4.7 lbs (2.1kg)
Series : 1182
Part Status : Active
Type : Toroidal
Voltage - Primary : 117V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 18.74A, Series 9.37A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 225 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 114.30mm Dia
Height - Seated (Max) : 47.75mm
Voltage - Isolation : 4000Vrms
Weight : 4.7 lbs (2.1kg)
0
5 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
